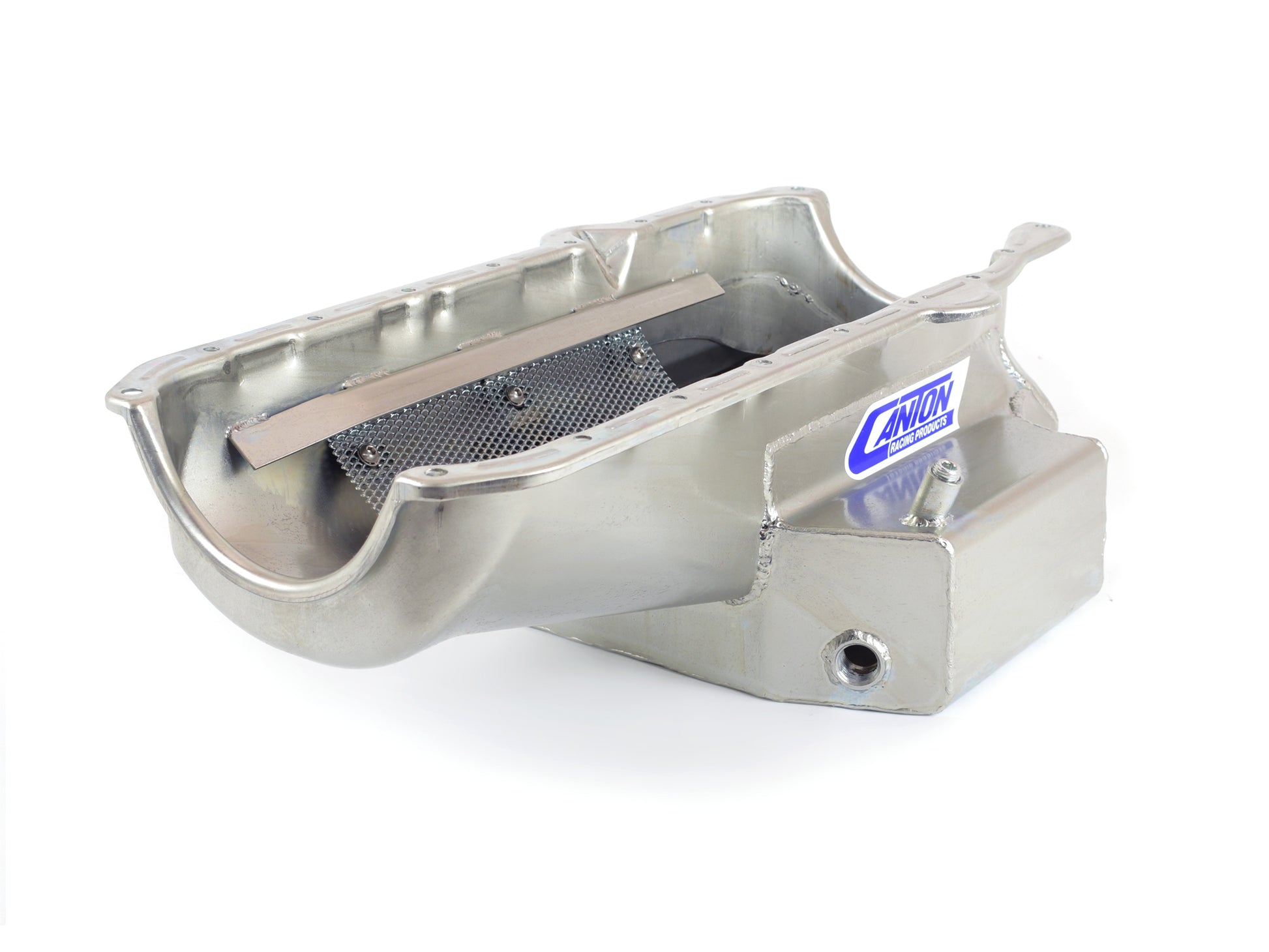

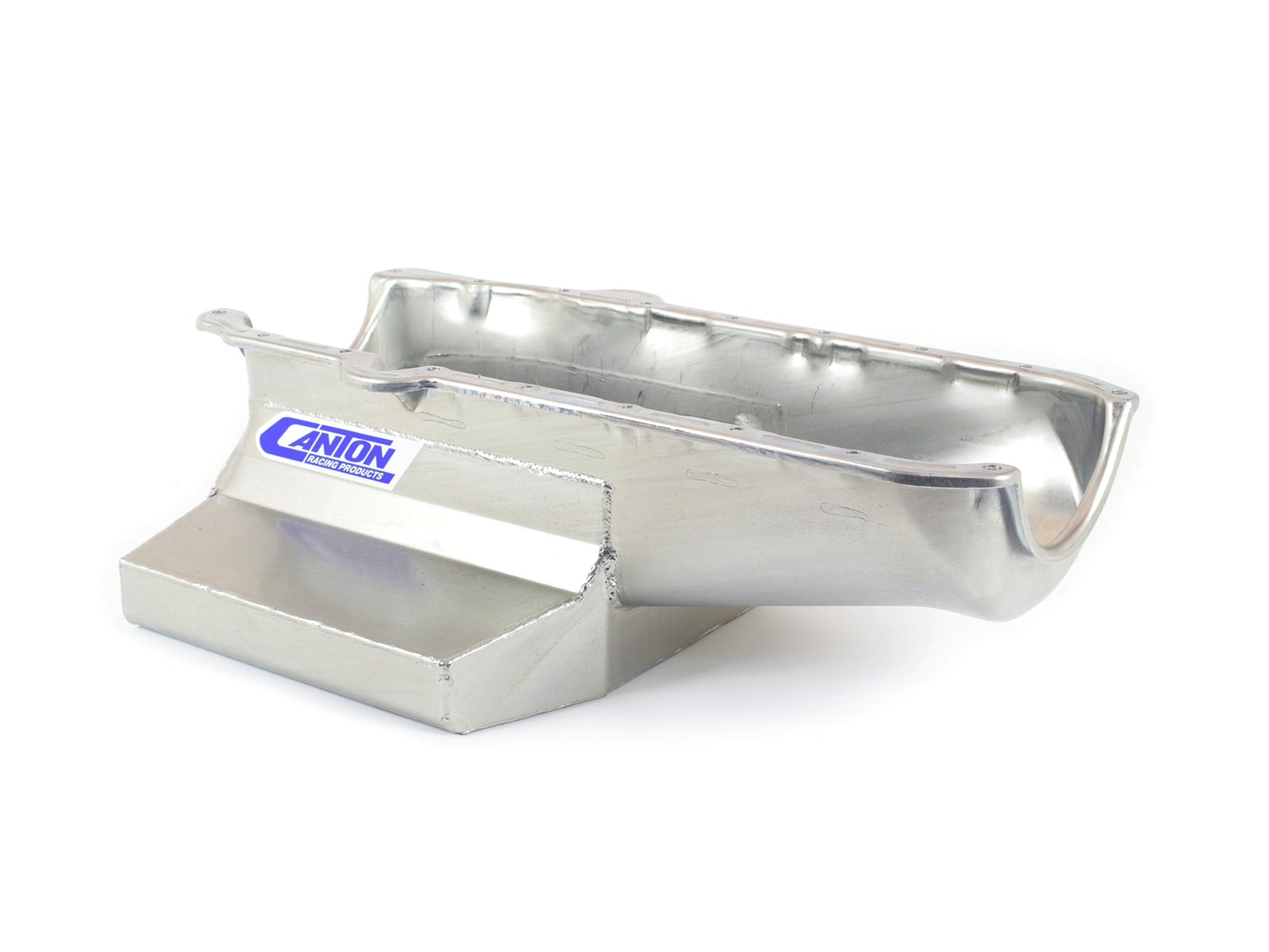

Canton 11-120T Oil Pan Small Block Chevy 12 Inch CT Long Sump 7" Deep

Name: Canton 11-120T Oil Pan Small Block Chevy 12 Inch CT Long Sump 7" Deep
Brand: CANTON
SKU: CANTON-11-120T
Price: 548.00 USD
Availability: InStock

CANTON

Part #
CANTON-11-120T
UPC #
00887753711182

$548.00 USD

~~$541.40 USD~~ $548.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

This Competition wet sump is for '86 and newer Small Block Chevys with one piece seals. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups.

8 qt System Capacity
3.75" Stroke Clearance
Six Trap Door Baffles & Three Runners
Crank Scraper
Bolt in Slosh Baffle
Built in Windage Tray
1/2” NPT Temperature Bung
Provison for our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753711182
Brand Name: Canton
Baffled: Yes
Kicked Out: Yes
Stoke: 3.75 inches
Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
Pickup Included: No
Material: 16 Gauge Steel
Hardware Included: No
Capacity: 8 Quart System Capacity
Gasket or Seal Included: No
Finish: Silver Plating
Feature 7: Magnetic Drain Plug
Feature 6: 1/2 NPT Temp Sensor Bung
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 4: Reduces Crank Windage And Saves Horsepower
Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
Feature 2: Bolt On Slosh Baffle For Oil Control
Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
