Canton 11-186 Oil Pan Small Block Chevy Open Chassis Pro 16" Long 85 & Earlier

Name: Canton 11-186 Oil Pan Small Block Chevy Open Chassis Pro 16" Long 85 & Earlier
Brand: CANTON
SKU: CANTON-11-186
Price: 728.00 USD
Availability: InStock

CANTON

Part #
CANTON-11-186
UPC #
00887753711243

$728.00 USD

~~$667.90 USD~~ $728.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

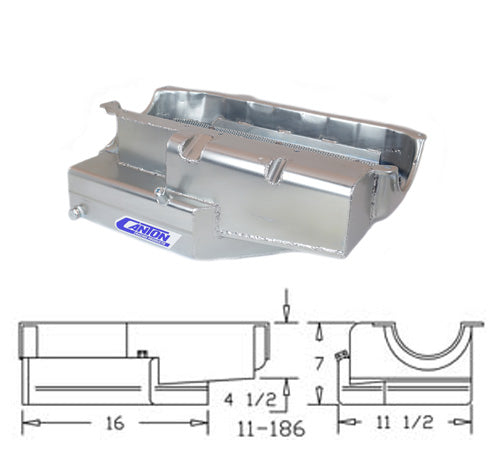

This open chassis "L" style steel wet sump pan is for ?85 and earlier Small Block Chevys. It is designed for chassis without x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has an 11-1/2" wide, 16" long, 7" deep ?L? sump with a 9 quart system capacity. Requires use of one of our pickups and an offset aftermarket starter with a 153 or 168 tooth flywheel. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.

9 qt System Capacity
7" Deep, 11.5" Wide, 16" Long
Six Trap Door Baffles & Directional Oil Runners
Pro Style Oil Recovery Pouch
Bolt in Slosh Baffle
Built in Screen Windage Tray
1/2” NPT Temperature Bung
Provison for our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753711243
Brand Name: Canton
Baffled: Yes
Hardware Included: No
Stoke: 3.875
Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 9 Quart System Capacity
Finish: Silver Plating
Feature 8: Magnetic Drain Plug
Feature 7: 1/2 NPT Temp Sensor Bung
Feature 6: Provision for Canton Pan Mounted Dipstick
Feature 5: Removable Screen Windage Tray
Feature 4: Bolt On Slosh Baffle For Oil Control
Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Engine: For S.B. Chevy 1985 and earlier blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: Yes
