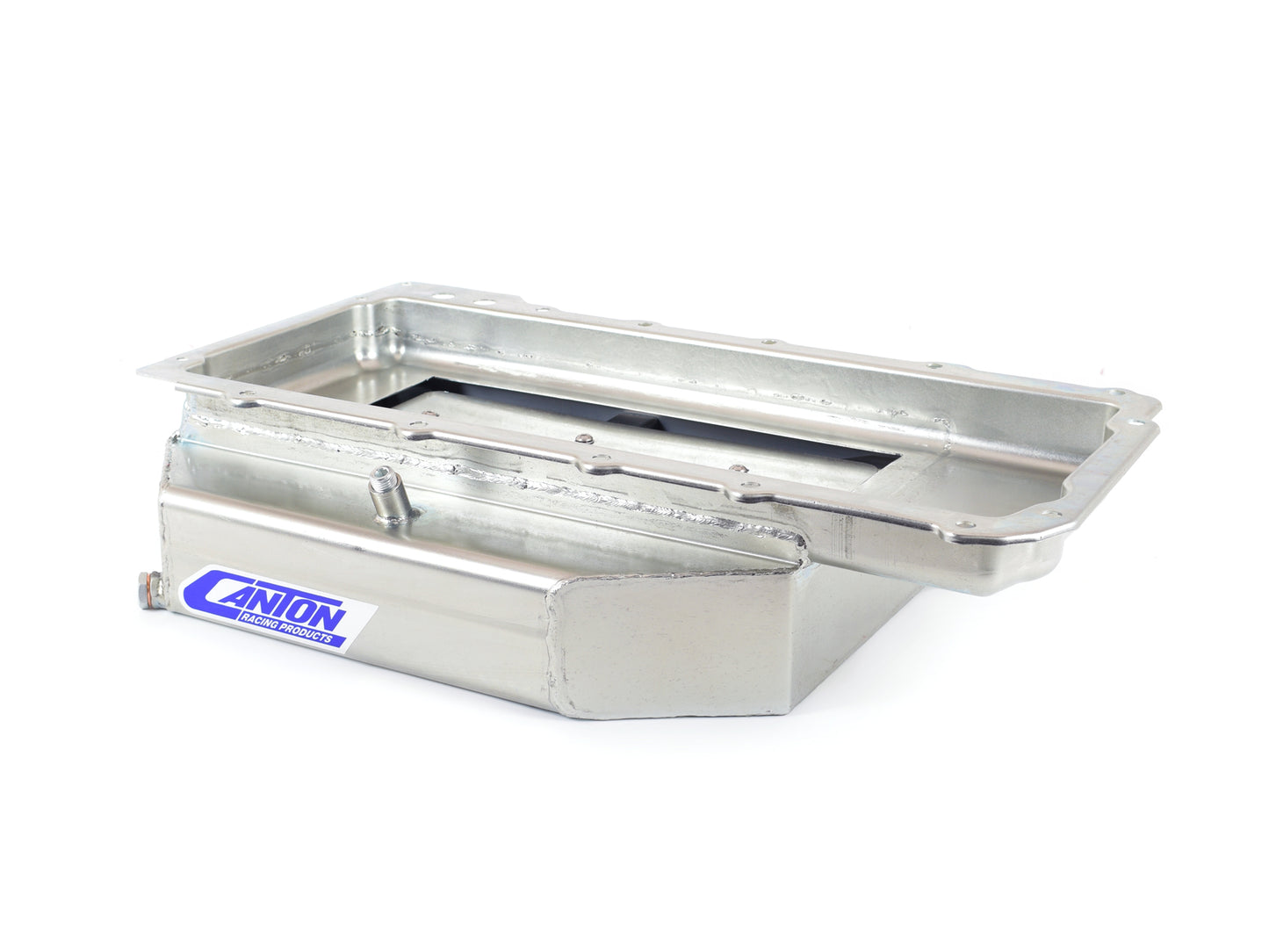

Canton 11-280 GM LS1 Open Chassis Steel Circle Track Rear Sump Pan

This circle track steel rear sump is designed for GM LS1 open chassis applications. It is 7" deep from center line of crank, 4-3/4" deep from the pan rail, 11" wide, 16" long and has a 7 quart system capacity. This pan requires our 11-281 pickup, and LS1 Filter Adapter or Filter Mount.

• This pan requires our filter adapter or filter mount.
• 7 qt System Capacity
• 4.25" Stroke Clearance
• Circle Track Trap Door Baffle System
• Bolt in Slosh Baffle
• 1/2" NPT Temperature Bung
• Magnetic Drain Plug
