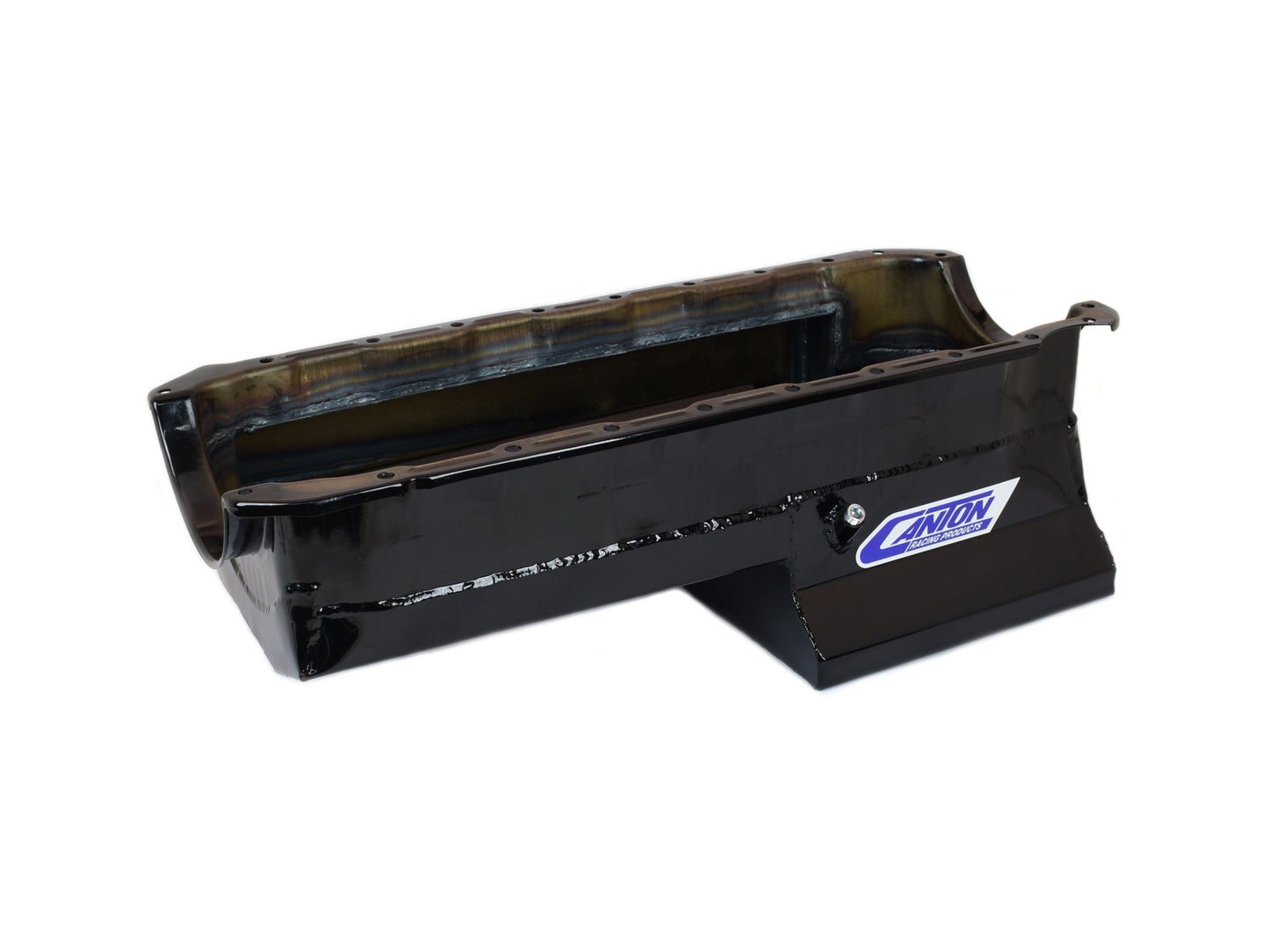

Canton 13-344BLK Oil Pan For Big Block Chevy Mark 4 Power Series Drag Race Black

CANTON:

Part # CANTON-13-344BLK
UPC # 00887753711847

$629.00 USD

~~$830.28 USD~~ $629.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Description

This black powdercoated drag race oil pan is for BBC Mark 4 blocks. It has an 8" deep by 10" long and 11-3/4" wide sump and an 8qt. system capacity. Takes up to a 4.5" stroke with a steel rod. This pan requires our 20-170 pickup. Will work with an aftermarket starter & a 168 tooth flywheel.

7 qt System Capacity
Clears 4.5" Stroke
Trap Door Baffle
Oil Recovery Pouch
Built In Louvered Windage Tray
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753711847
Brand Name: Canton
Baffled: Yes
Hardware Included: No
Sump Width: 11.75 inches
Sump Depth: 8 inches
Stoke: 4.5 inches
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 1: 20-170 - Pickup for BBC Pumps
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Black Powdercoat
Feature 6: Magnetic Drain Plug
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 4: Trap Door Baffle For Oil Control
Feature 3: Removable Louvered Windage Tray
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Engine: For B.B. Chevy Mark 4 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: Yes
