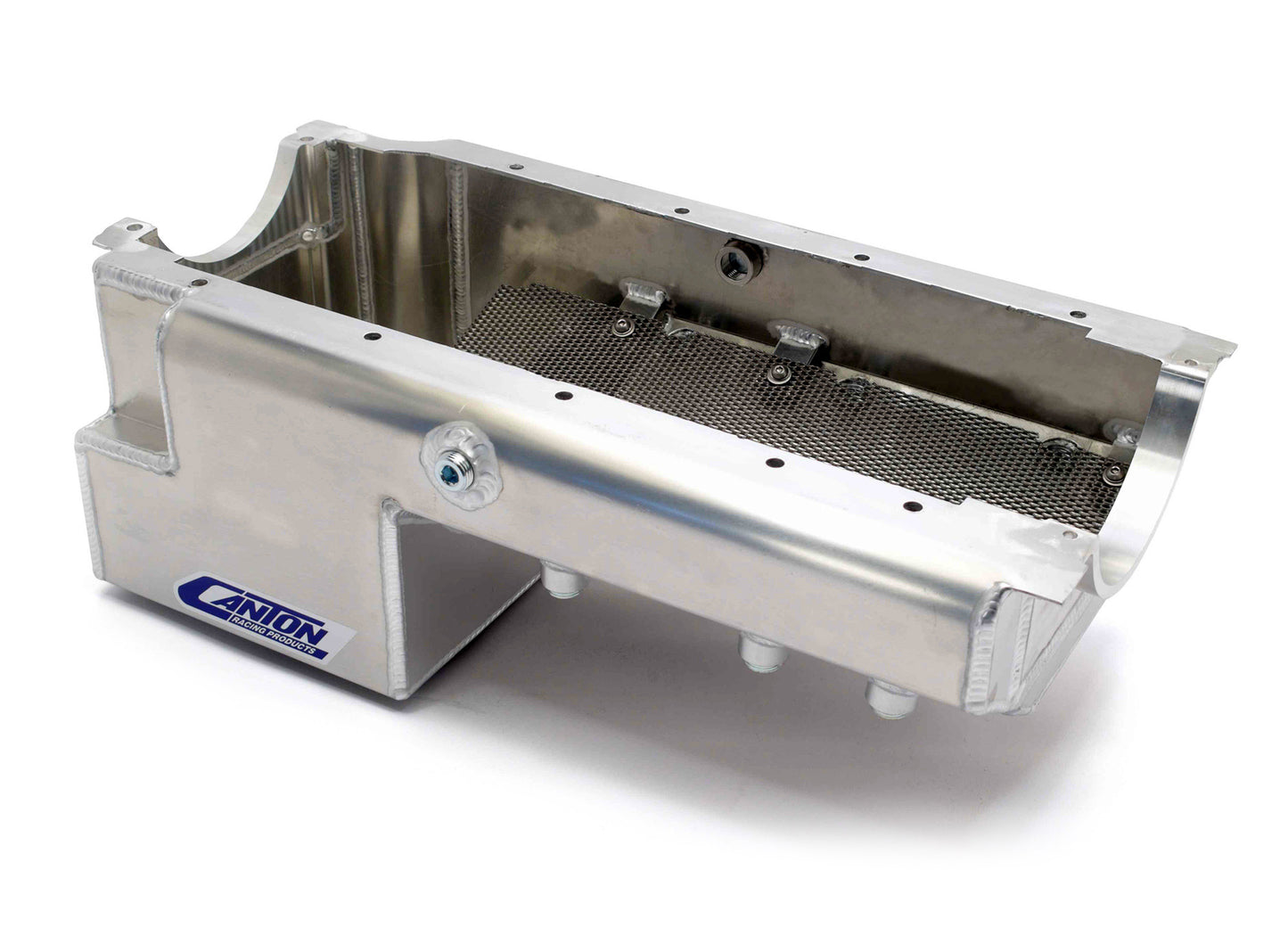

Canton 13-348A Oil Pan For Big Block Chevy Power Series

CANTON:

Part # CANTON-13-348A
UPC # 00887753711854

$1,058.00 USD

~~$1,396.56 USD~~ $1,058.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Description

This aluminum drag race oil pan is for BBC Mark 4 blocks. It has an 8" deep by 10" long and 12" wide sump and an 7qt. system capacity. Takes up to a 4.75" stroke with a steel rod. This pan requires our 20-170 pickup. Will work with an aftermarket starter & a 168 tooth flywheel.

7 qt System Capacity
Clears 4.5" Stroke
Trap Door Baffle
Pro-Style Oil Recovery Pouch
Built In Screen Windage Tray
1/2" NPT Drain Bungs (1 on each side)
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753711854
Brand Name: Canton
Stoke: 4.75 inches
Feature 5: Provision for Canton Pan Mounted Dipstick
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 1: 20-170 - Pickup for BBC Oil Pumps
Pickup Included: No
Material: .100 Thick Aluminum
Kicked Out: No
Hardware Included: No
Gasket or Seal Included: No
Finish: Raw Aluminum
Feature 7: Clears 4.75" Stroke
Feature 6: Magnetic Drain Plug
Feature 4: Trap Door Baffle For Oil Control
Sump Depth: 8 inches
Feature 3: Removable Screen Windage Tray
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Engine: For B.B. Chevy Mark 4 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Capacity: 7 Quart System Capacity
Baffled: Yes
Windage Tray Included: Yes
Sump Width: 11.25 inches
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
