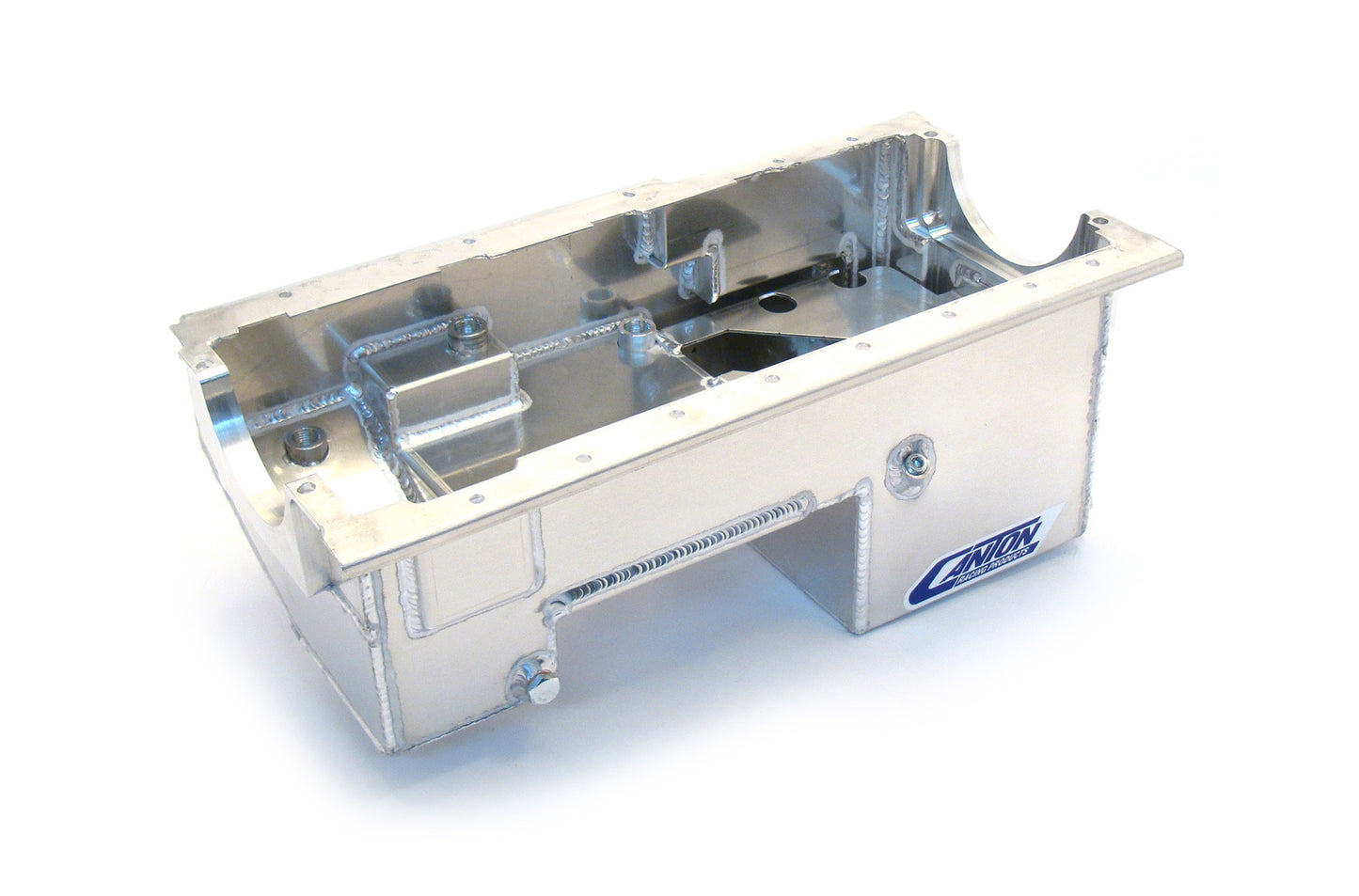

Canton 13-672A Oil Pan Ford 351W Fox Body Pro Style Drag Alum Pan SV & Non SV

Canton 13-672A Oil Pan Ford 351W Fox Body Pro Style Drag Alum Pan SV & Non SV

CANTON:

Part # CANTON-13-672A
UPC # 00887753711939

Regular price $1,130.00 USD
Regular price $1,490.60 USD Sale price $1,130.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

This Aluminum fox body drag race pro-style power pan is for 351W SVO blocks with 2 or 4 bolt rear main caps & 164 or 157 tooth flywheel applications. It has a 9" deep rear sump with a 7 qt. system capacity. Designed to work with our one-way screen windage tray, which mounts directly to the main cap studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter. Requires modification for use with main support.
  • 7 qt System Capacity
  • Billet Seals For A Proper Fit
  • Pro Style Oil Recovery Pouch
  • Slosh Baffle
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
  • GTIN: 00887753711939
  • Brand Name: Canton
  • Baffled: Yes
  • Kicked Out: No
  • Sump Width: 11 inches
  • Sump Depth: 9 inches
  • Stoke: 4.0 inches
  • Recommended Accessory 7: 88-650 ? Small Block Ford 351W Four Piece Oil Pan Gasket
  • Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
  • Recommended Accessory 4: 20-953 - Oil Pump Pickup Stud for 351W Based Engines
  • Recommended Accessory 3: 15-675 - Pickup for Others Steel Main Support
  • Recommended Accessory 2: 15-673 - 7/8" Dia. Pickup for Engines Without Main Support
  • Recommended Accessory 1: 15-671 - 3/4" Dia. Pickup for use With or Without CANTON Main Support
  • Pickup Included: No
  • Material: .100 Thick Aluminum
  • Hardware Included: No
  • Capacity: 7 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Raw Aluminum
  • Feature 6: Billet Seals for a Proper Fit
  • Feature 5: Magnetic Drain Plug
  • Feature 4: Provision for Canton Pan Mounted Dipstick
  • Feature 3: Slosh Baffle For Oil Control
  • Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
  • Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
  • Engine: For Ford 351W Blocks
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No
  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 12 lb
