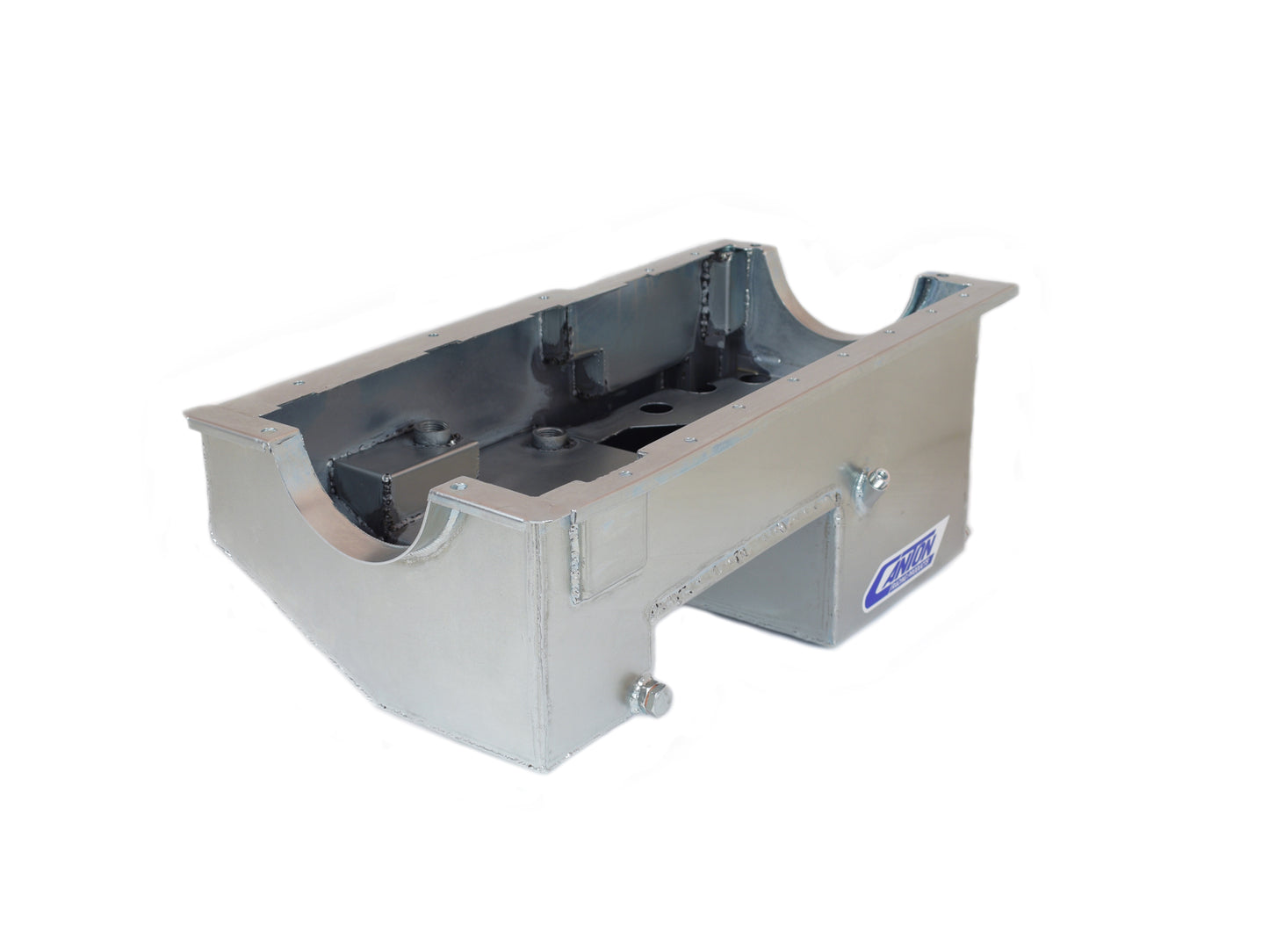

Canton 13-672SV Oil Pan For Ford 351W SVO Fox Body Drag Race Power Series Pan

Canton 13-672SV Oil Pan For Ford 351W SVO Fox Body Drag Race Power Series Pan

CANTON:

Part # CANTON-13-672SV
UPC # 00887753711946

$619.00 USD
$816.08 USD $619.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

This Fox body drag race pro-style power pan is for 351W with 2 or 4 bolt rear main caps & 164 or 157 tooth flywheel applications. It has a 9" deep rear sump and a 7 qt. system capacity. Designed to work with our one-way screen windage trays, which mount directly to the main caps studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter.
  • 7 qt System Capacity
  • Pro Style Oil Recovery Pouch
  • Slosh Baffle
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
  • GTIN: 00887753711946
  • Brand Name: Canton
  • Material: 16 Gauge Steel
  • Sump Width: 10.5 inches
  • Sump Depth: 9 inches
  • Stoke: 4.0 inches
  • Recommended Accessory 7: 88-650 - Small Block Ford 351W Four Piece Oil Pan Gasket
  • Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4? N.P.T. Fitting
  • Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
  • Recommended Accessory 4: 20-953 - Oil Pump Pickup Stud for 351W Based Engines
  • Recommended Accessory 3: 15-675 - Pickup for Other Steel Main Support
  • Recommended Accessory 2: 15-673 - 7/8" Dia. Pickup for Engines Without Main Support
  • Recommended Accessory 1: 15-671 - 3/4" Dia. Pickup for use With or Without Canton Main Support
  • Pickup Included: No
  • Kicked Out: No
  • Capacity: 7 Quart System Capacity
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 5: Magnetic Drain Plug
  • Feature 4: Provision for Canton Pan Mounted Dipstick
  • Feature 3: Slosh Baffle For Oil Control
  • Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
  • Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
  • Engine: For Ford 351W Blocks
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No
  • Baffled: Yes
  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 20 lb
