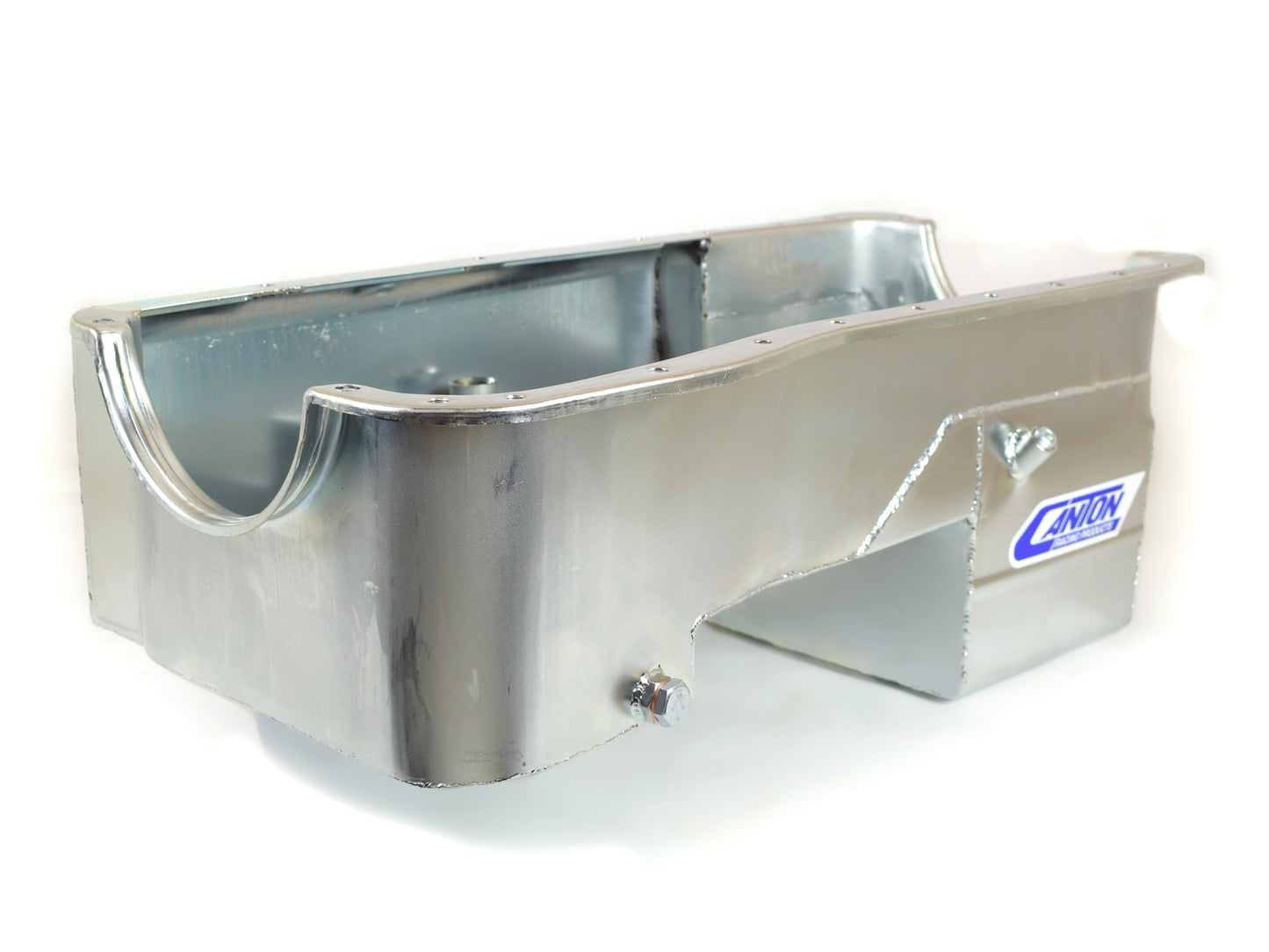

Canton 13-772 Oil Pan Big Block Ford Fox Body Drag Race Pro Power Series Pan

Canton 13-772 Oil Pan Big Block Ford Fox Body Drag Race Pro Power Series Pan

CANTON

Part # CANTON-13-772
UPC # 00887753711991

$735.00 USD
$817.50 USD $735.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

This Fox body drag race pro-style power pan is for Ford 429-460 blocks. It has a 9" deep rear sump and a 7 qt. system capacity. For maximum power this pan features a horsepower saving oil recovery pouch and is designed to work with our one-way screen windage trays, which mount directly to the main caps studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers.
  • 7 qt System Capacity
  • Pro Style Oil Recover Pouch
  • Slosh Baffle
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
  • GTIN: 00887753711991
  • Brand Name: Canton
  • Baffled: Yes
  • Kicked Out: No
  • Stoke: 4.5 inches
  • Recommended Accessory 8: 88-750 - Big Block Ford 429-460 Four Piece Oil Pan Gasket
  • Recommended Accessory 7: 20-966 - Ford 429-460 Main Support Windage Tray
  • Recommended Accessory 6: 21-066 - Ford 429-460 Main Support
  • Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 3: 20-956 - Oil Pump Pickup Stud for 460 Based Engines
  • Recommended Accessory 2: 15-777 - Pickup for our CANTON MAIN SUPPORT
  • Recommended Accessory 1: 15-771 - 3/4" Dia. Pickup
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Hardware Included: No
  • Capacity: 7 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 5: Magnetic Drain Plug
  • Feature 4: Provision for Canton Pan Mounted Dipstick
  • Feature 3: Slosh Baffle For Oil Control
  • Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
  • Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
  • Engine: For Ford 429-460 Blocks
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No
  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 9 lb
