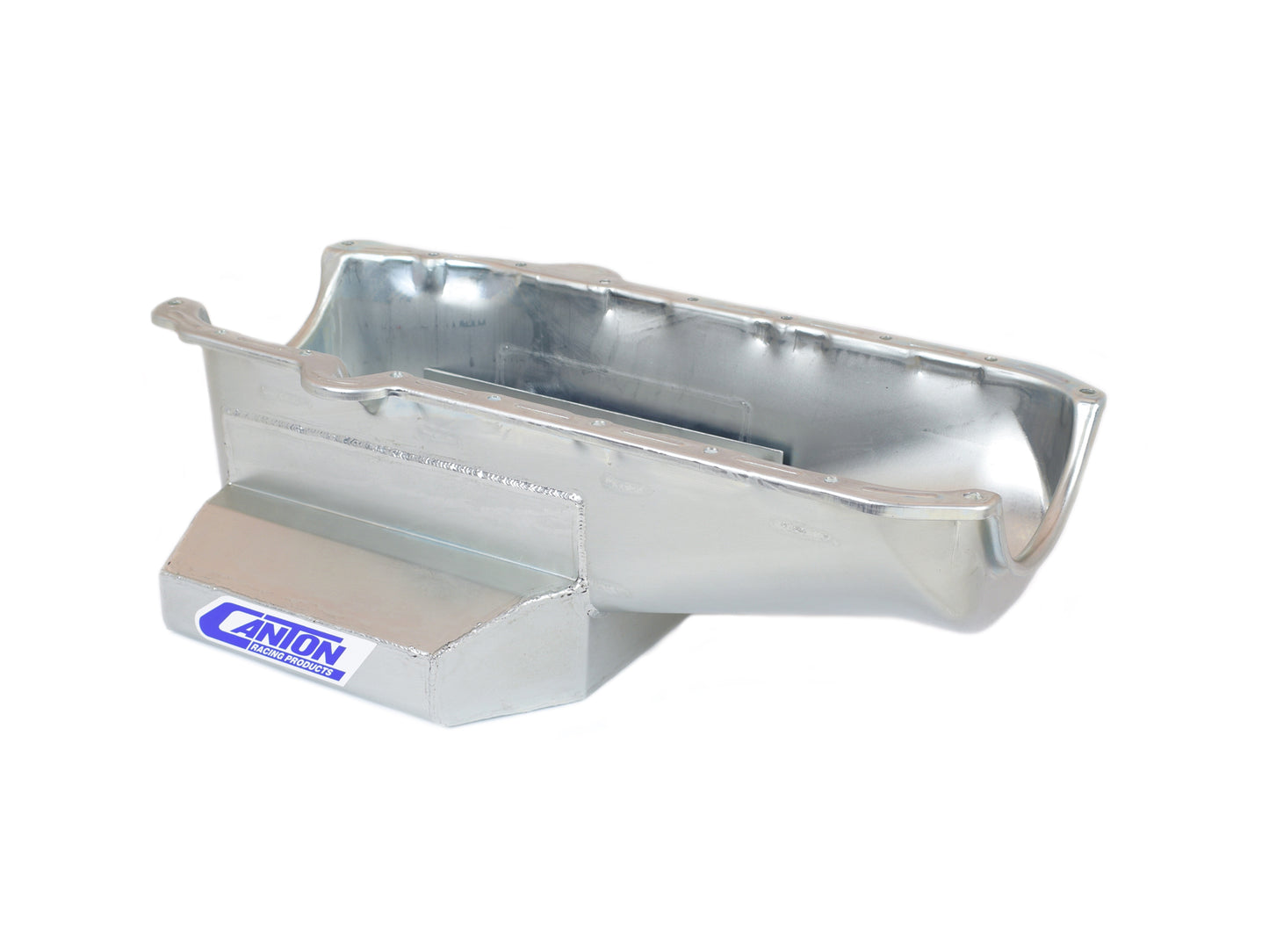

Canton 15-240T Oil Pan Small Block Chevy 1986 And Up Corvette Road Race Pan

Name: Canton 15-240T Oil Pan Small Block Chevy 1986 And Up Corvette Road Race Pan
Brand: CANTON
SKU: CANTON-15-240T
Price: 525.00 USD
Availability: InStock

CANTON

Part #
CANTON-15-240T
UPC #
00887753712165

$525.00 USD

~~$556.80 USD~~ $525.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

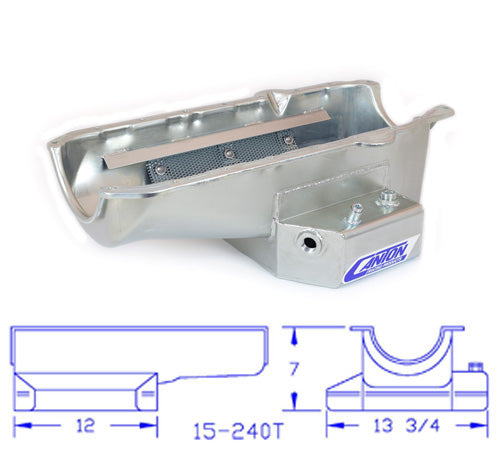

This SBC late Corvette road race pan is for ?86 and newer blocks with one piece seal. It is designed for 84-96 Corvettes, but will fit in early Corvettes as well. It has a 7" deep, 13-3/4" wide, 12" long sump, with a 7 quart system capacity. Will work with stock starter. This pan requires one of our pickups.

Five Trap Door Baffles
Crank Scraper
Built In Screen Windage Tray
1/2" NPT Temperature Bung
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug
Includes a 20MM fitting For Low Oil Sensor (22-405 required if not using sender)

Attributes

GTIN: 00887753712165
Brand Name: Canton
Baffled: Yes
Kicked Out: Yes
Stoke: 3.75 inches
Recommended Accessory 8: 88-100T - SBC 86+ Oil Pan Gasket
Recommended Accessory 7: 22-405 - 20MM Plug for Oil Level Sender Port
Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 4: 20-079 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
Recommended Accessory 3: 20-074 - Pickup for SBC High Volume Oil Pump M55HV
Recommended Accessory 2: 20-049 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
Recommended Accessory 1: 20-044 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
Pickup Included: No
Material: 16 Gauge Steel
Hardware Included: No
Capacity: 7 Quart System Capacity
Gasket or Seal Included: No
Finish: Silver Plating
Feature 6: 20mm Fitting for GM Low Oil Warning Sender
Feature 5: Provision for Pan Mounted Dipstick
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Bolt in Windage Tray
Feature 2: Crank Scraper
Feature 1: Trap Door Baffle for Oil Control
Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
