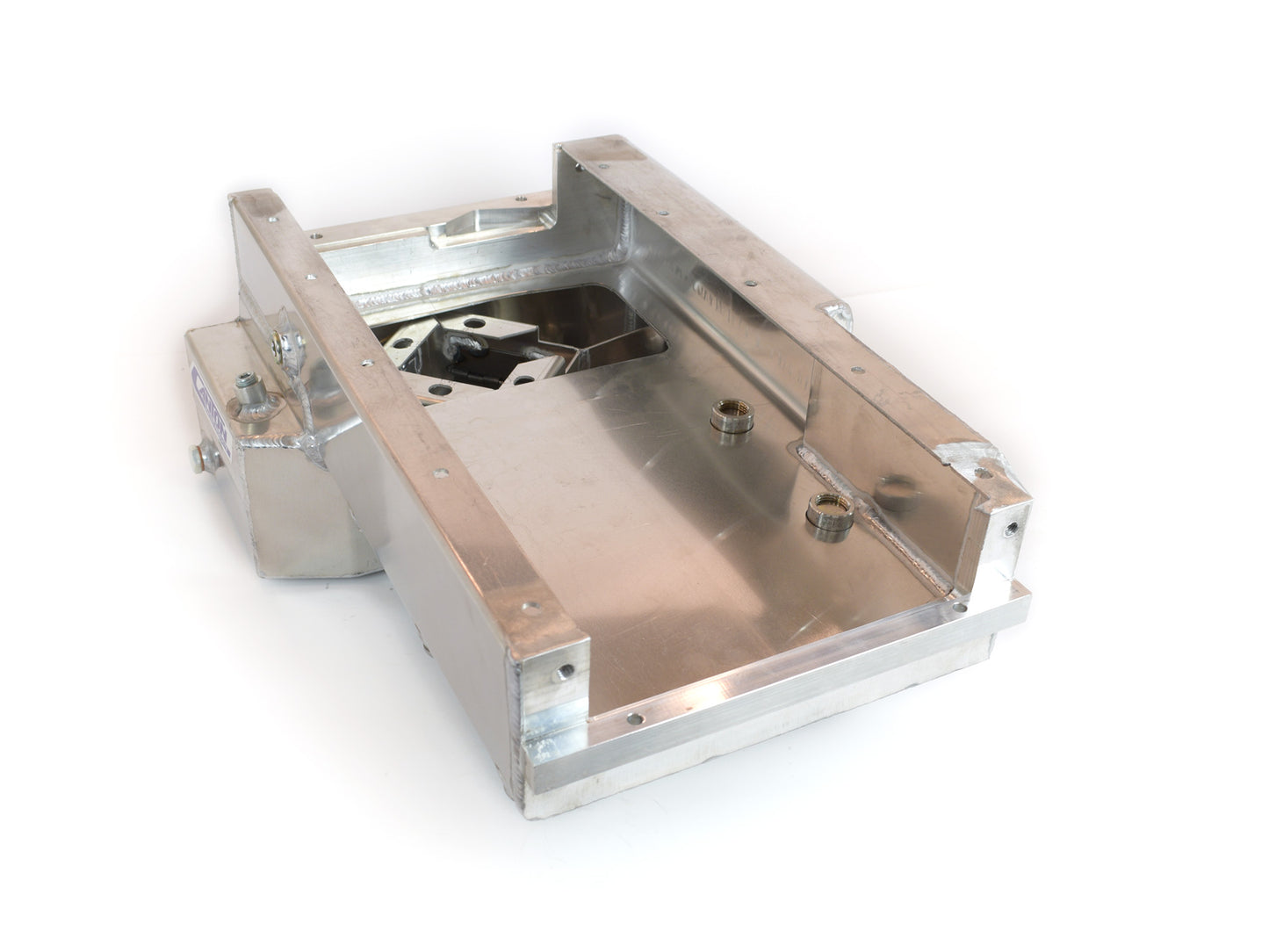

Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan

Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan

CANTON:

Part # CANTON-15-286A
UPC # 00887753712394

Regular price $1,348.00 USD
Regular price $1,778.36 USD Sale price $1,348.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Our LS NEXT front sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations.
  • 6.5 qt System Capacity
  • Pro Style Oil Recovery Pouch
  • Machined Billet Front & Rear Seals
  • Removable Windage Slosh Baffle
  • Diamond Shape Road Race Trap Door Baffle System
  • Magnetic Drain Plug
  • Provision for pan mounted dipstick
  • GTIN: 00887753712394
  • Brand Name: Canton
  • Baffled: Yes
  • Finish: Raw Aluminum
  • Recommended Accessory 5: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
  • Recommended Accessory 4: 22-405 - Plug for 20mm bung if low oil warning sender is Not used
  • Recommended Accessory 3: 22-304 - LS NEXT Oil Pan Stud Kit
  • Recommended Accessory 2: 21-870 - LS Flywheel Cover for T56 Bellhousing
  • Recommended Accessory 1: 15-287 - Dart LS NEXT front sump pickup for 15-286A pan
  • Pickup Included: No
  • Material: .100 Aluminum
  • Kicked Out: Yes
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Feature 7: Magnetic Drain Plug
  • Capacity: 6.5 Quarts
  • Feature 6: Provision for Pan Mounted Dipstick
  • Feature 5: Removable Windage/Anti-Slosh Baffle
  • Feature 4: Built in Louvered Windage Tray
  • Feature 3: Diamond Shape Baffle Assembly
  • Feature 2: Machined Billet Front & Rear Seals
  • Feature 1: Pro-Style Recovery Pouch
  • Engine: Dart LS Next
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No
  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 25 x 16 x 9 inches
  • Weight: 16 lb
