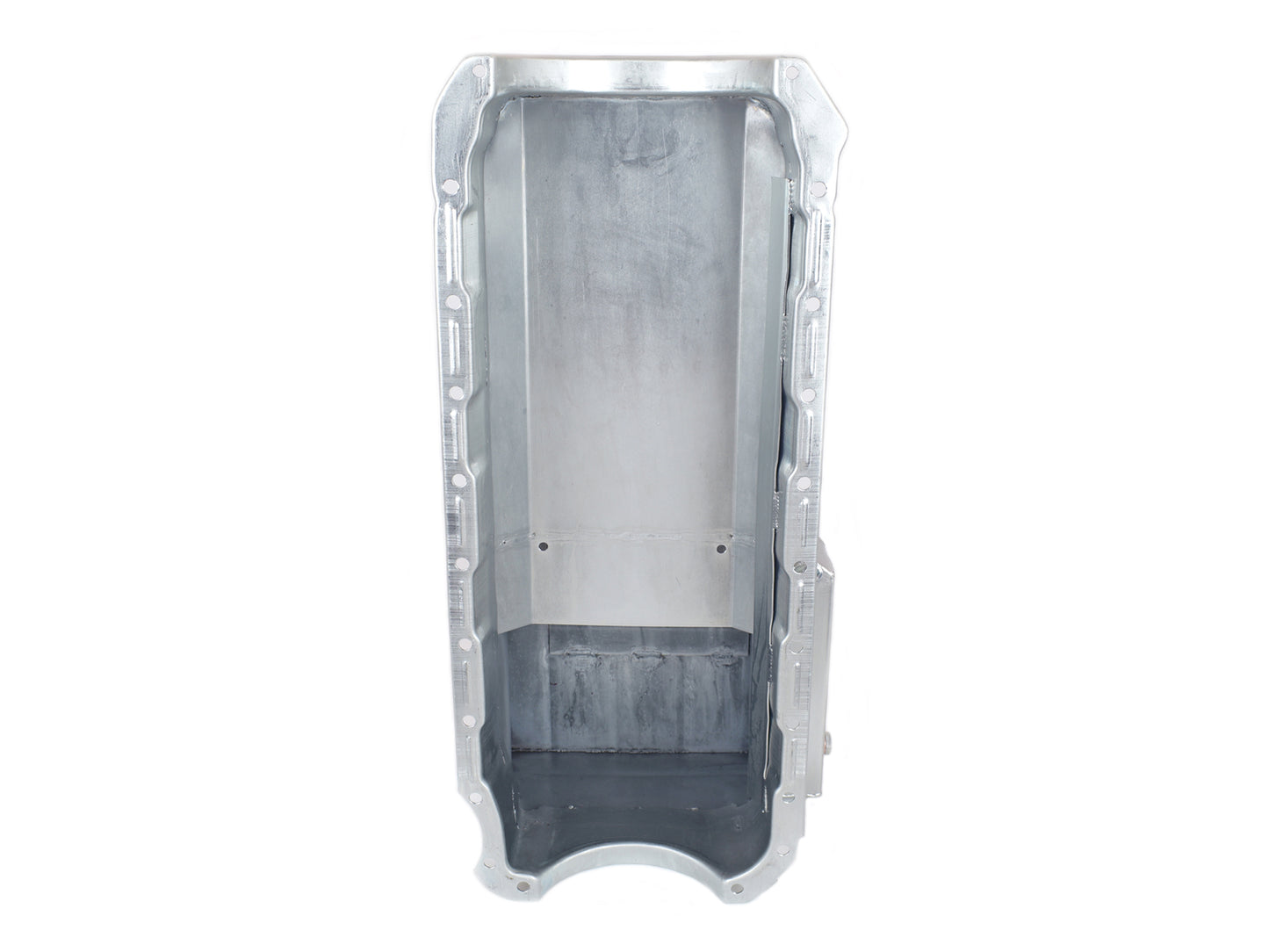

Canton 15-320 Oil Pan Big Block Chevy T Sump Street Pan

Name: Canton 15-320 Oil Pan Big Block Chevy T Sump Street Pan
Brand: CANTON
SKU: CANTON-15-320
Price: 539.00 USD
Availability: InStock

CANTON

Part #
CANTON-15-320
UPC #
00887753712431

$539.00 USD

~~$646.80 USD~~ $539.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

This BBC stock depth wide sump oil pan is for Mark IV big block Chevys. It is designed with a shallow front with angled corners to clear the large cross members in early Camaros and Novas and '68-'72 Chevelle. It has an 8" Deep, 12" Wide, 9-1/2" Long sump with a 7 quart system capacity. Due to the extra shallow front section of this pan designed for large cross member clearance our main cap mounted windage trays will not clear this pan. This pan requires our 20-170 pickup.

7 qt System Capacity
Pan Retains Stock Depth & Can Clear a 4.25" Stroke
Crank Scraper
Slosh Baffle
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753712431
Brand Name: Canton
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: Clears 4.24" Stroke
Feature 3: Provision for Pan Mounted Dipstick
Feature 2: Crank Scraper
Feature 1: Slosh Baffle For Oil Control
Engine: For B.B. Chevy Mark 4 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: No
Baffled: Yes
Hardware Included: No
Sump Width: 12 inches
Sump Depth: 8 inches
Stoke: 4.25 inches
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 20-170 - Pickup for BBC Oil Pumps
Pickup Included: No
