Canton 15-350BLK Oil Pan Big Block Chevy Early Chevelle Street Pan T Sump

Name: Canton 15-350BLK Oil Pan Big Block Chevy Early Chevelle Street Pan T Sump
Brand: CANTON
SKU: CANTON-15-350BLK
Price: 519.00 USD
Availability: InStock

CANTON

Part #
CANTON-15-350BLK
UPC #
00887753712486

$519.00 USD

~~$556.80 USD~~ $519.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

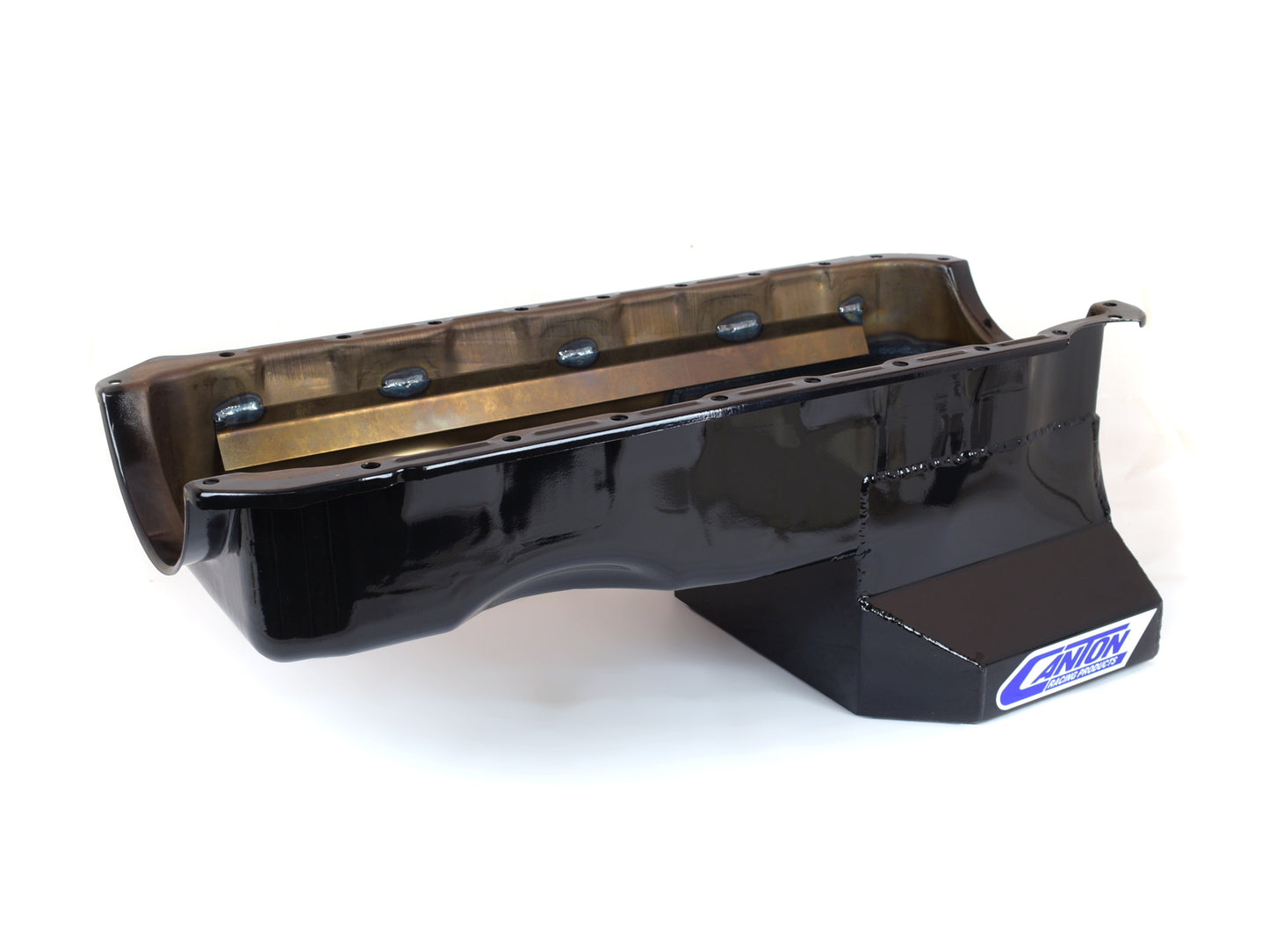

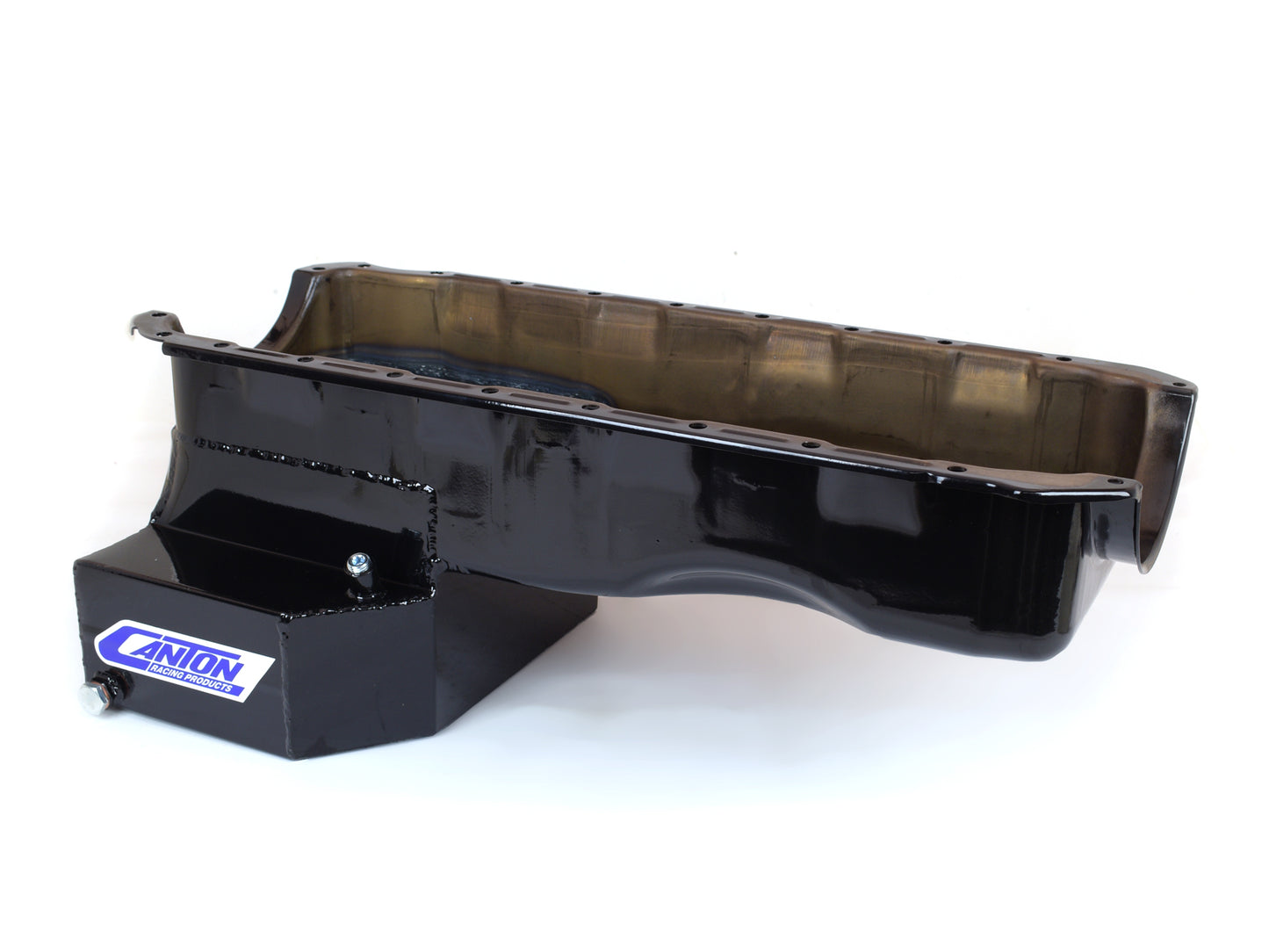

This black powdercoat BBC early Chevelle pan is for standard Mark 4 Big Blocks with a 2 piece rear seal. It is designed with angled front corners to fit in '64-'67 Chevelle and most other GM chassis. It has a 9" deep, 13" wide, 8-1/2" long sump for an 8 quart system capacity. This pan requires our 20-190 pickup.

8 qt System Capacity
Pan Retains Stock Depth & Can Clear a 4.5" Stroke
Crank Scraper
Slosh Baffle
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753712486
Brand Name: Canton
Baffled: Yes
Hardware Included: No
Sump Width: 13 inches
Sump Depth: 9 inches
Stoke: 4.5 inches
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 20-190 - Pickup for BBC Oil Pumps
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 8 Quart System Capacity
Finish: Silver Plating
Feature 6: Black Powdercoat
Feature 5: Magnetic Drain Plug
Feature 4: Clears 4.5" Stroke
Feature 3: Provision for Pan Mounted Dipstick
Feature 2: Crank Scraper
Feature 1: Slosh Baffle For Oil Control
Engine: For B.B. Chevy Mark 4 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: No
