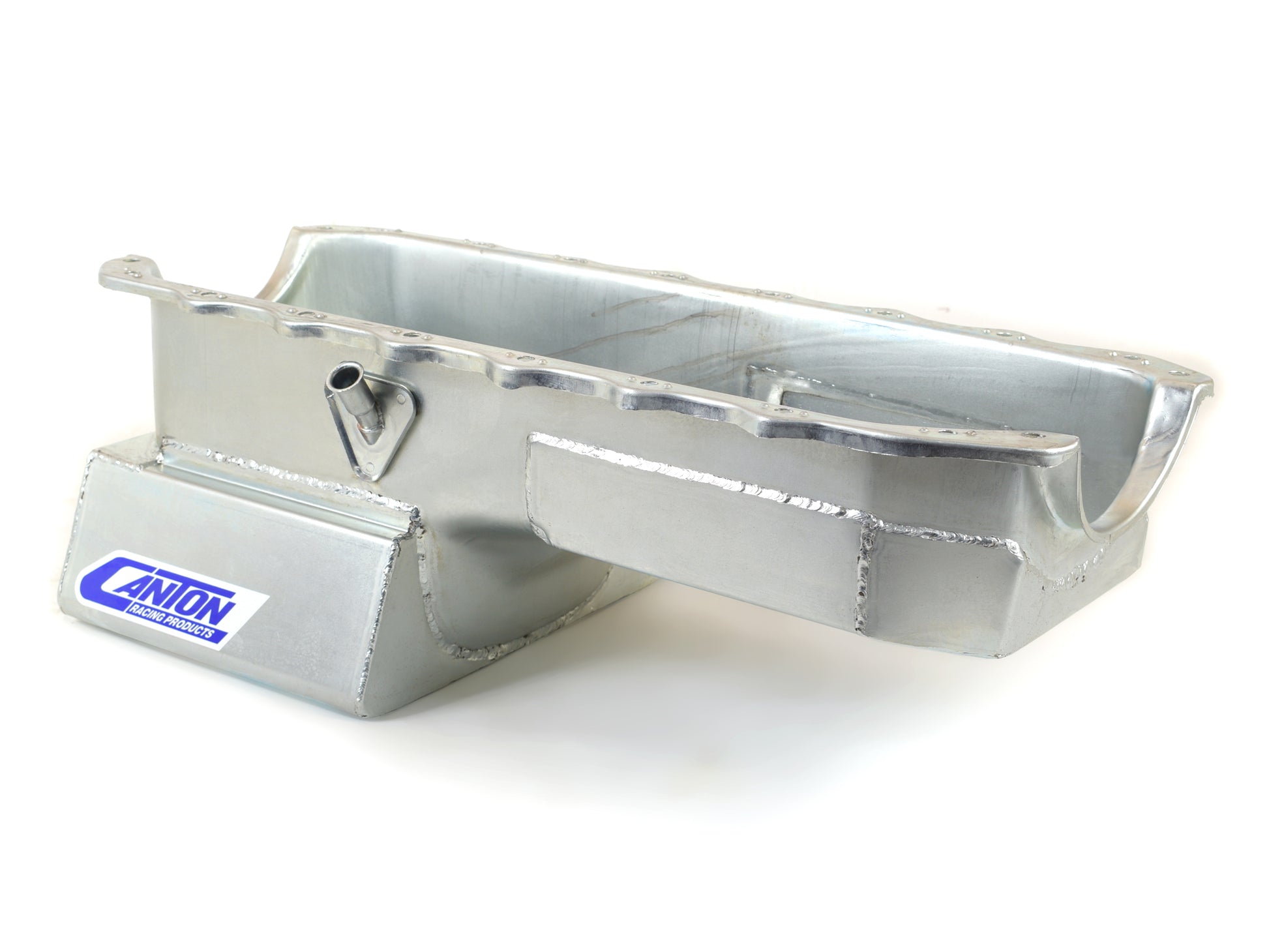

Canton 15-590 Oil Pan For Holden V-8 Rear Sump Street Strip Pan

Canton 15-590 Oil Pan For Holden V-8 Rear Sump Street Strip Pan

CANTON

Part #
CANTON-15-590
UPC #
00887753712721

$465.00 USD
$520.50 USD $465.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

The Canton 15-590 rear sump street oil pan is for the Australian market Holden V8. It has a larger oil capacity than stock but retains the same depth through the use of a T sump. Another important feature is it's louvered slosh baffle that offers better control over oil pan windage freeing up horsepower and keeping the oil where it belongs around the pickup. The gold iridite plated finish makes for good looks and long lasting rust free service life. This pan requires our 15-581 oil pickup.
  • 7 qt System Capacity
  • Louvered Anti slosh baffle/windage tray
  • Provision for our 1/4" NPT dipstick (passenger side)
  • Magnetic Drain Plug
  • Room for main stud girdle
  • GTIN: 00887753712721
  • Brand Name: Canton
  • Baffled: Yes
  • Finish: Silver Plating
  • Recommended Accessory 1: 15-591 - Required Oil Pickup for the 15-590 Pan
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Kicked Out: Yes
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Feature 5: Room for main stud girdle
  • Capacity: 7 Quart / 6.5 Liter System Capacity
  • Feature 4: Magnetic Drain Plug
  • Feature 3: Provision for our 1/4" NPT dipstick (passenger side)
  • Feature 2: Louvered Anti slosh baffle/windage tray
  • Feature 1: 7 qt System Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No
  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 13.5 x 9.5 inches
  • Weight: 12.45 lb
