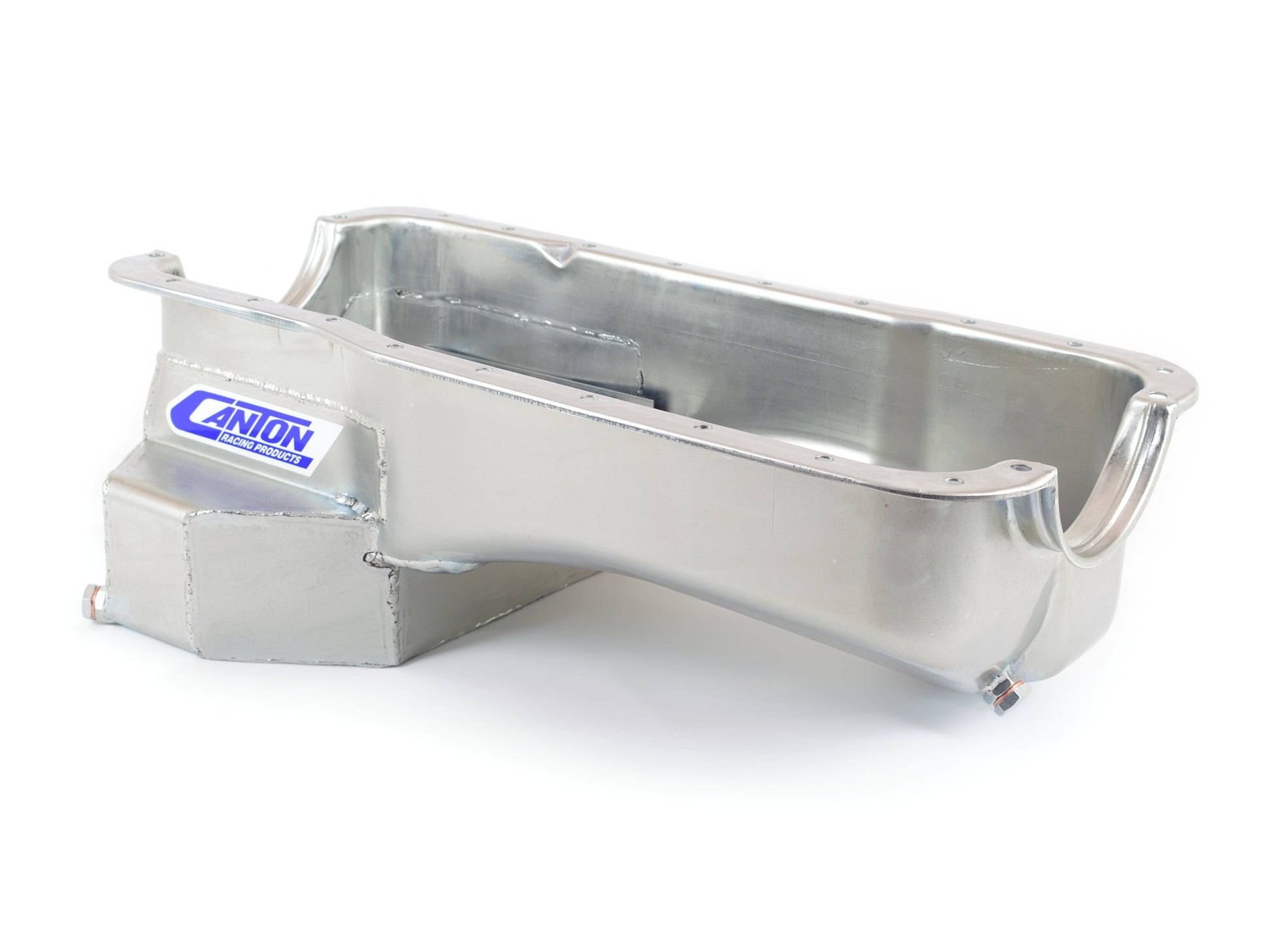

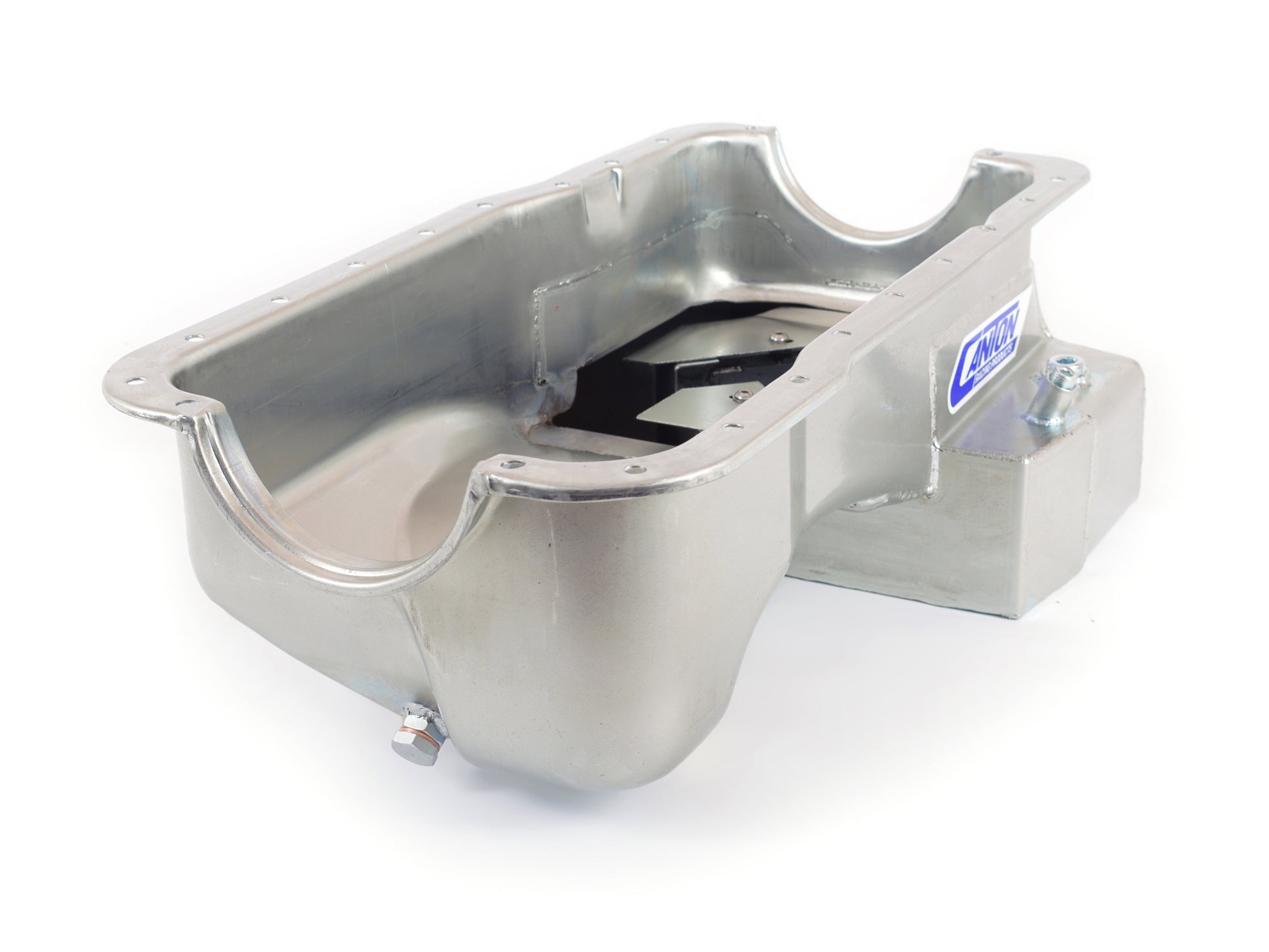

Canton 15-644S Oil Pan For Ford 289-302 Rear T Sump Road Race Pan W/ No Scraper

CANTON:

Part # CANTON-15-644S
UPC # 00887753712998

$518.00 USD

~~$683.76 USD~~ $518.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Description

This "T" style rear sump oil pan is for Ford 289-302 blocks with main supports in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Crank scraper omitted to allow for clearance for most main supports. This pan requires a 15-647 pickup for use with Canton #21-060 main support. Some long tube headers require modification. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.

7 qt System Capacity
Retains Stock Depth
Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Removable Windage/Anti-Slosh Baffle
1/2" NPT Temperature Bung
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753712998
Brand Name: Canton
Baffled: Yes
Material: 16 Gauge Steel
Sump Width: 13.5 inches
Sump Depth: 7.5 inches
Stoke: 3.4 inches
Recommended Accessory 8: 88-602 ? Small Block Ford 289-302 One Piece Oil Pan Gasket
Recommended Accessory 7: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 6: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 5: 20-953 - Picup mounting Stud for 302R Based Engines
Recommended Accessory 4: 20-950 - Pickup Mounting Stud for 302 Based Engines
Recommended Accessory 3: 20-960 - Ford 289-302 Main Support Windage Tray
Recommended Accessory 2: 21-060 - CANTON 289-302 Main Support
Recommended Accessory 1: 15-647 - Pickup with 3/4" Dia. Inlet with Main Support
Pickup Included: No
Kicked Out: Yes
Capacity: 7 Quart System Capacity
Hardware Included: No
Gasket or Seal Included: No
Finish: Silver Plating
Feature 7: Magnetic Drain Plug
Feature 6: Provision For Our Pan Mounted Dipstick
Feature 5: 1/2" NPT Temperature Bung
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 2: Retains Stock Depth
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
