Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan

Name: Canton 15-694BLK Oil Pan Ford 351W Fox Body Mustang Rear T Sump Road Race Pan
Brand: CANTON
SKU: CANTON-15-694BLK
Price: 578.00 USD
Availability: InStock

CANTON

Part #
CANTON-15-694BLK
UPC #
00887753713247

$578.00 USD

~~$619.50 USD~~ $578.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

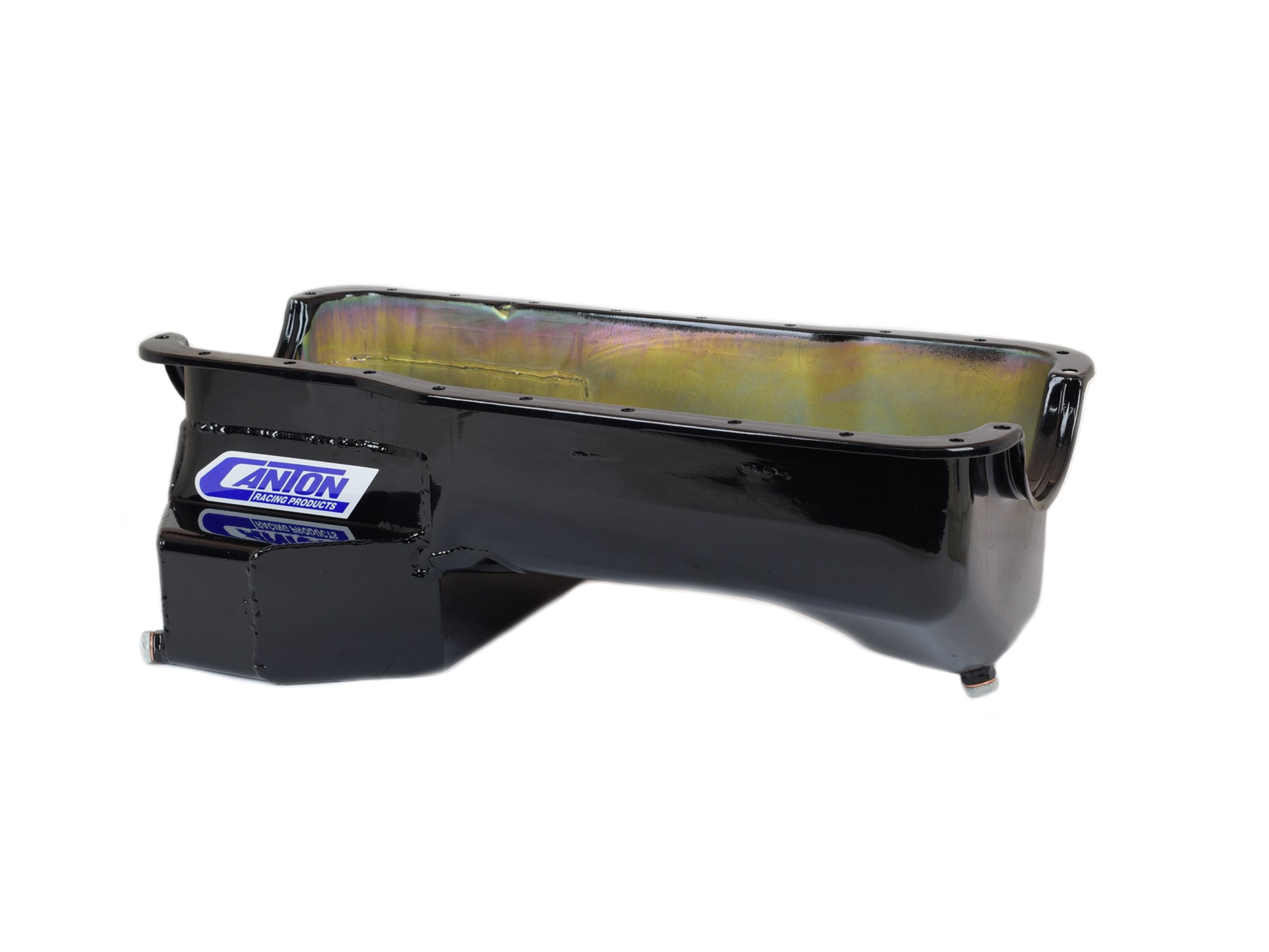

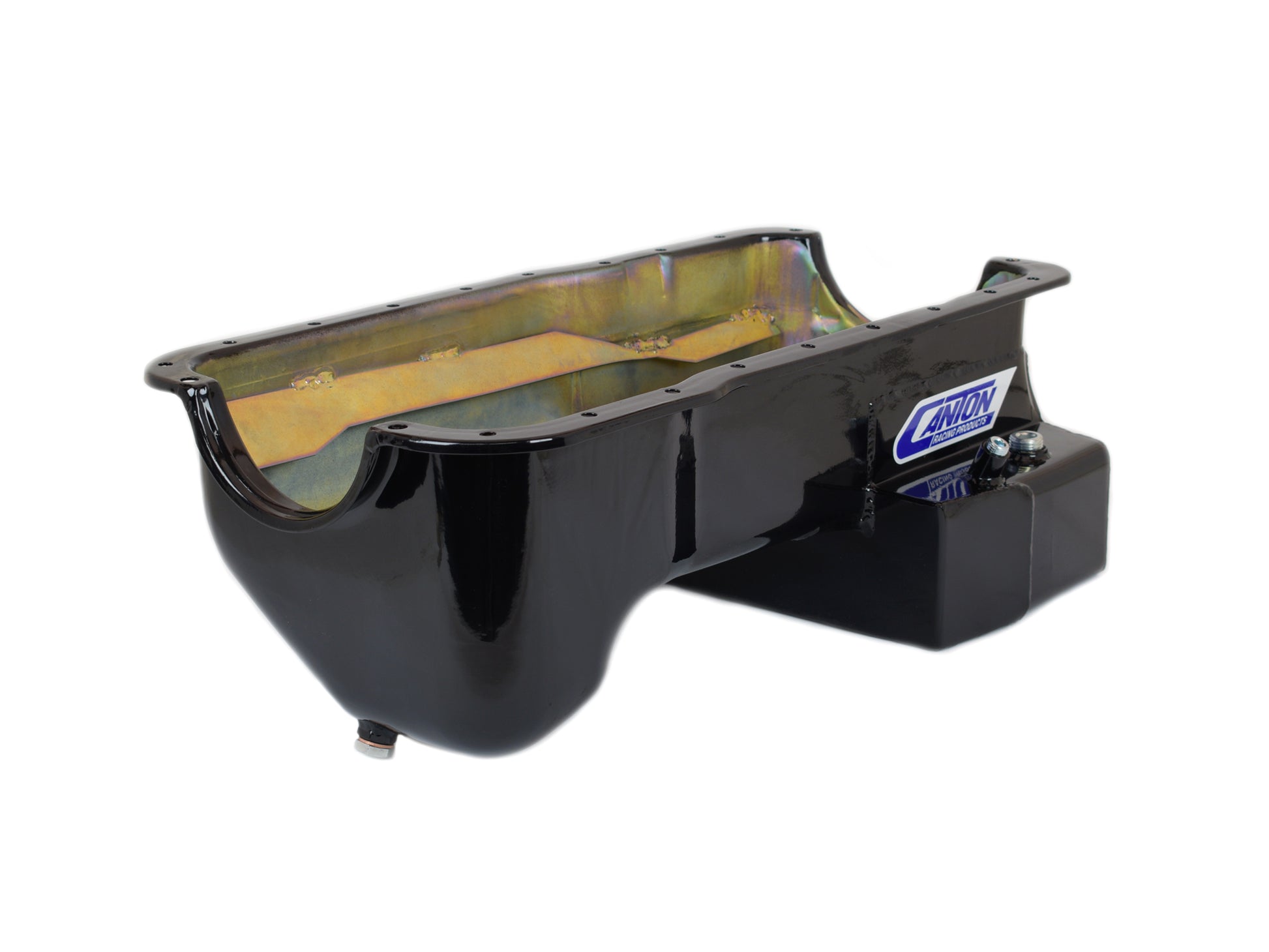

This black powder coat "T" style rear sump oil pan is for Ford 351W blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification. This pan requires our 15-695 pickup. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.

7 qt System Capacity
Retains Stock Depth
Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Crank Scraper
Removable Windage/Anti-Slosh Baffle
1/2" NPT Temperature Bung
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753713247
Brand Name: Canton
Baffled: Yes
Hardware Included: No
Sump Width: 13.5 inches
Sump Depth: 7.5 inches
Stoke: 4.0 inches
Recommended Accessory 5: 88-652 - Small Block Ford 351W One Piece Oil Pan Gasket
Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-953 - Pickup Mounting Stud for 351W Based Engines
Recommended Accessory 1: 15-695 - Pickup with 3/4" Dia. Inlet
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Black Powdercoat
Feature 8: Magnetic Drain Plug
Feature 7: Provision For Our Pan Mounted Dipstick
Feature 6: 1/2" NPT Temperature Bung
Feature 5: Removable Windage/Anti-Slosh Baffle
Feature 4: Crank Scraper
Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 2: Retains Stock Depth
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: No
