Canton 15-694S Oil Pan For Ford 351W Rear T Sump Road Race Pan With No Scraper

Name: Canton 15-694S Oil Pan For Ford 351W Rear T Sump Road Race Pan With No Scraper
Brand: CANTON
SKU: CANTON-15-694S
Price: 566.00 USD
Availability: InStock

CANTON

Part #
CANTON-15-694S
UPC #
00887753713254

$566.00 USD

~~$631.60 USD~~ $566.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

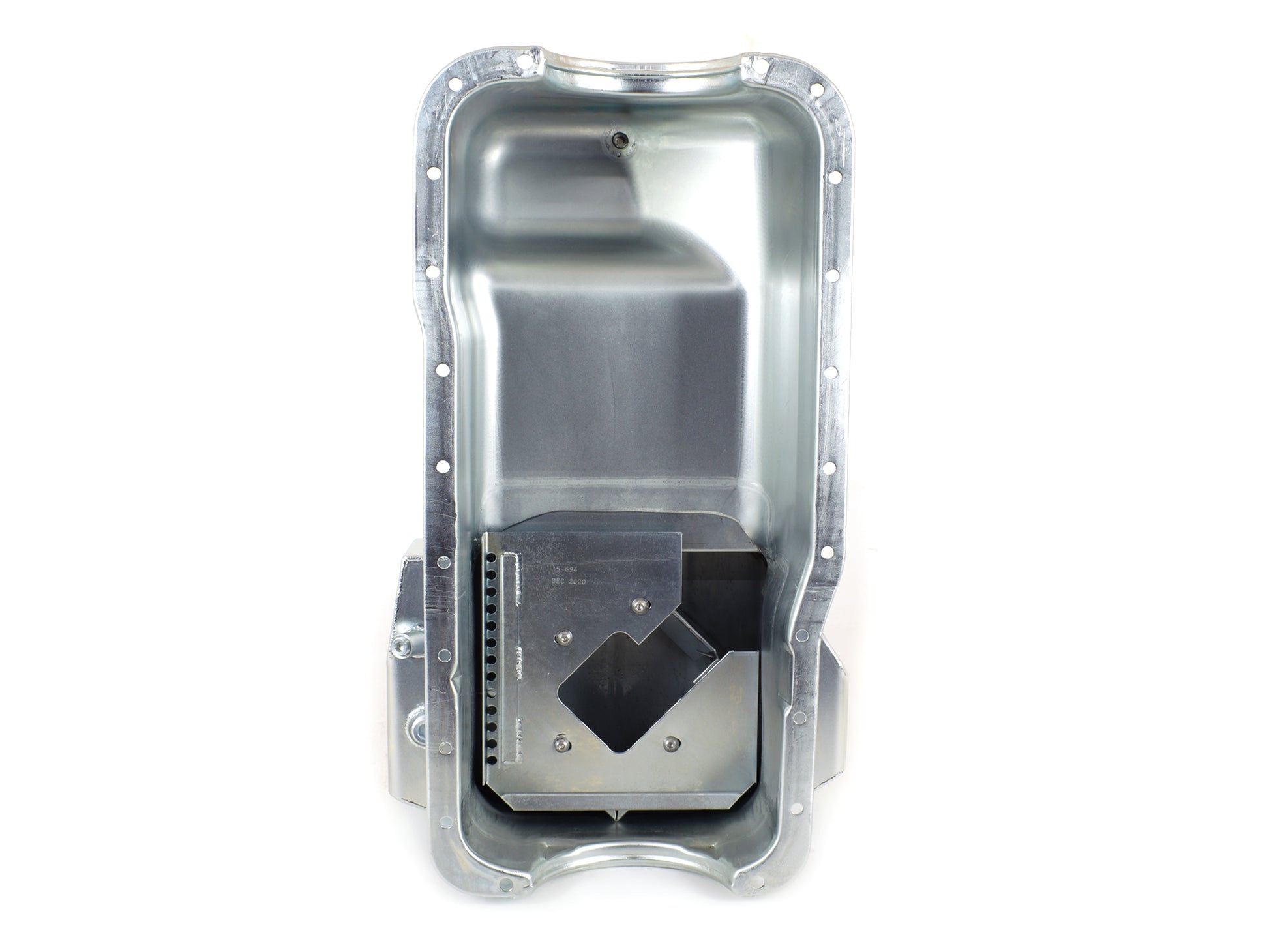

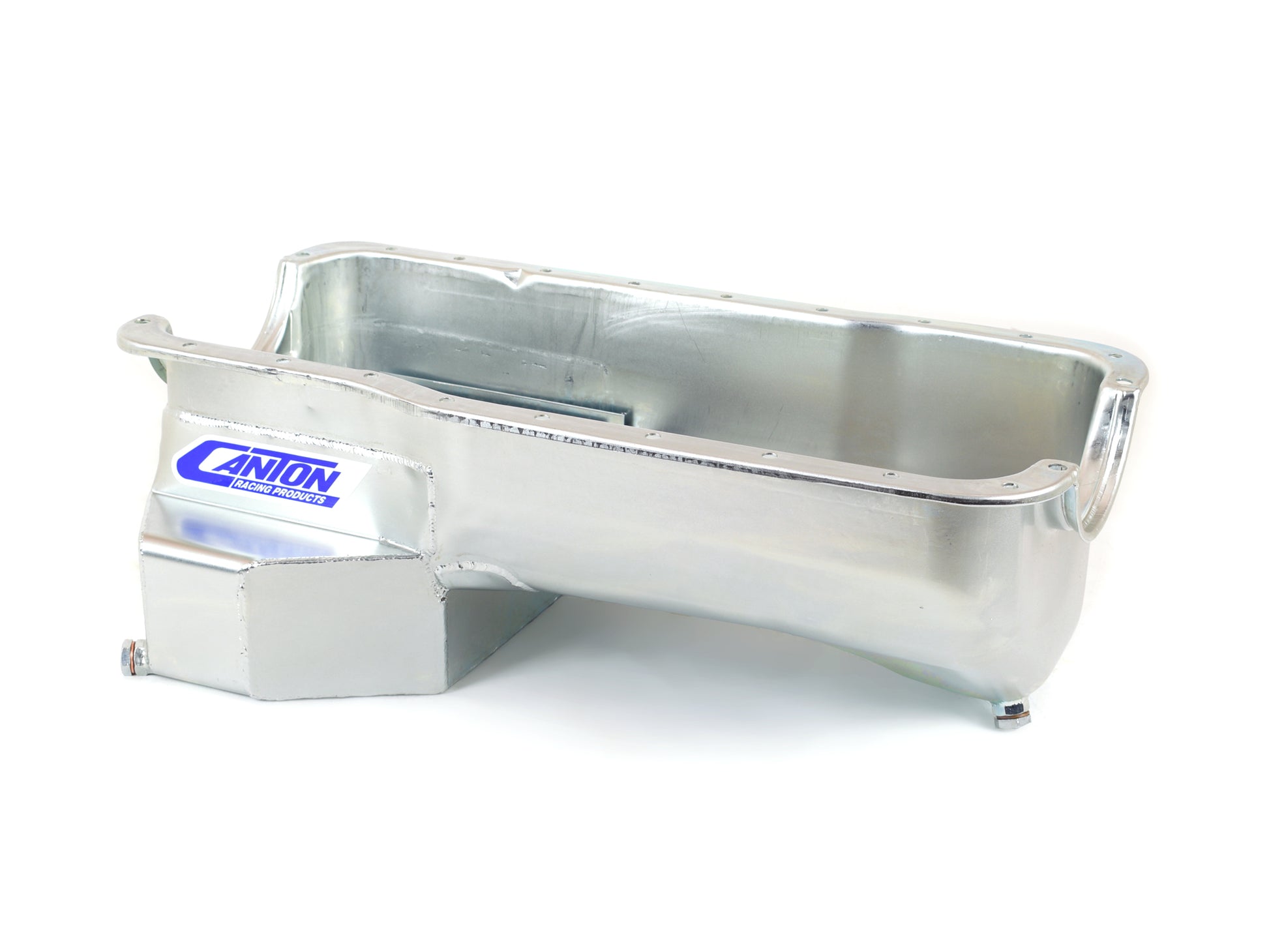

This "T" style rear sump oil pan is for Ford 351W blocks in Fox Body Mustangs. It has a 7-1/2" deep 8" long by 13-1/2" wide sump and a 7 quart system capacity. This pan requires our 15-695 pickup. Pan does not include crank scraper to provide main support clearance. Some long tube headers require modification. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.

7 qt System Capacity
Retains Stock Depth
Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Removable Windage/Anti-Slosh Baffle
1/2" NPT Temperature Bung
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753713254
Brand Name: Canton
Baffled: Yes
Hardware Included: No
Stoke: 4.0 inches
Recommended Accessory 7: 88-652 ? Small Block Ford 351W One Piece Oil Pan Gasket
Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 4: 20-953 - Pickup Mounting Stud for 351W Based Engines
Recommended Accessory 3: 20-962 Ford 351W Main Support Mounted Windage Tray
Recommended Accessory 2: 21-062 - Canton Steel 351W Main Support
Recommended Accessory 1: 15-695 - Pickup with 3/4" Dia. Inlet
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Silver Plating
Feature 7: Magnetic Drain Plug
Feature 6: Provision For Our Pan Mounted Dipstick
Feature 5: 1/2" NPT Temperature Bung
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 2: Retains Stock Depth
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
