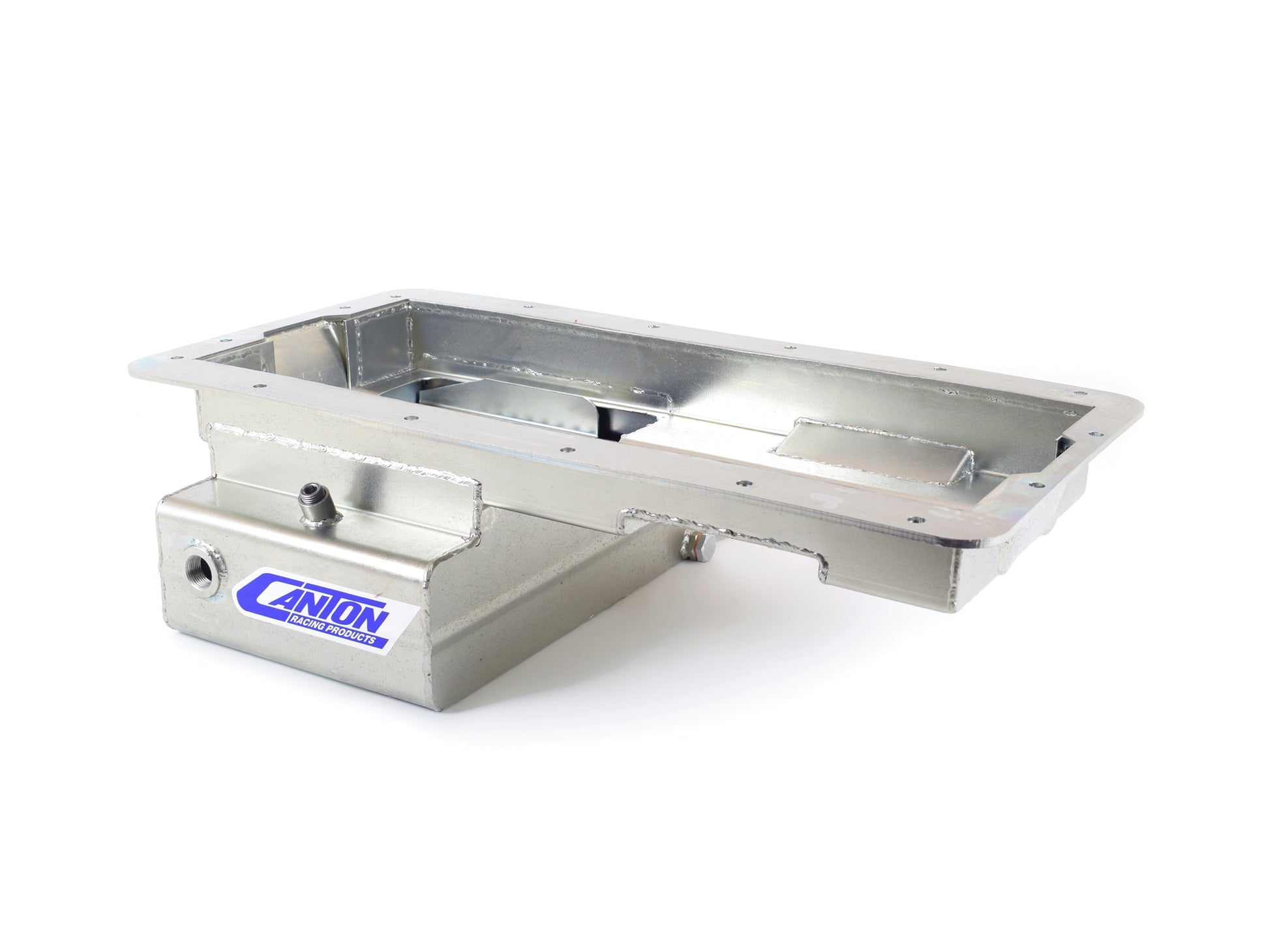

Canton 15-738 Oil Pan For Ford 5.0 Coyote Road Race Front T Sump Pan

CANTON:

Part # CANTON-15-738
UPC # 00887753713414

$529.00 USD

~~$698.28 USD~~ $529.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Description

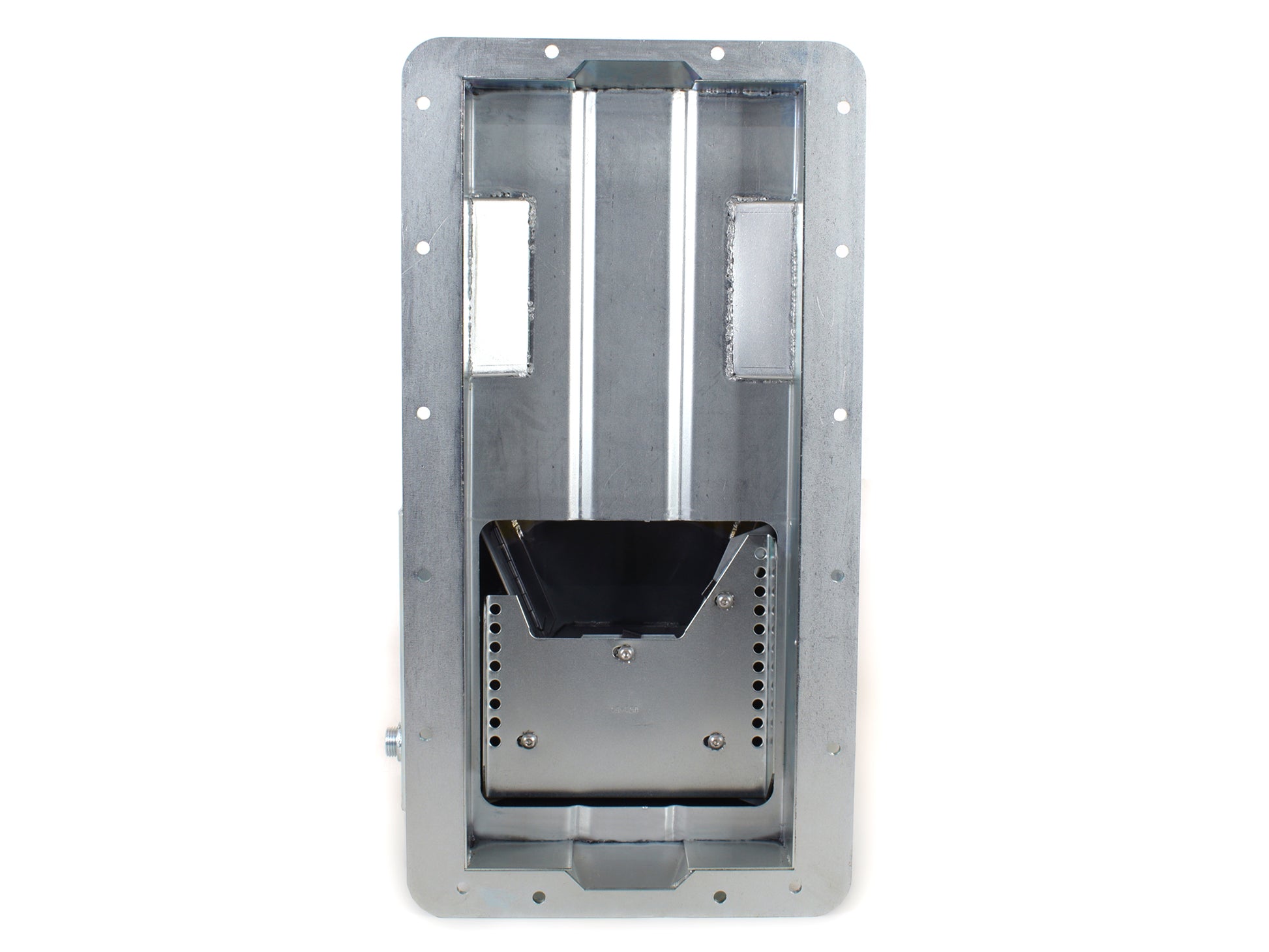

Cantons new 15-738 Ford 5.0 Coyote oil pan is designed for early Ford chassis and others that required a front sump oil pan. The pan is designed with a ?t?sump for extra capacity and is used in road race applications where ground clearance is important .It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle.

Designed for 5.0 Coyote Blocks
Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Removable Windage/Anti-Slosh Baffle
1/2" NPT Temperature Bung
20mm Bung for low Oil Warning Sender
Made In USA
Tig Welded

Attributes

GTIN: 00887753713414
Brand Name: Canton
Capacity: 7 Quart System Capacity
Gasket or Seal Included: No
Windage Tray Included: No
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 15-739 - Pickup for 5.0 Coyote Front Sump Pan
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Hardware Included: No
Finish: Silver Plating
Crank Scraper Included: No
Feature 7: Tig Welded
Feature 6: Made In USA
Feature 5: 20mm Bung for low Oil Warning Sender
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 1: Designed for 5.0 Coyote Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Baffled: Yes
