Canton 15-784BLK Oil Pan For Ford 4.6L 5.4L Road Race T Sump Pan

Name: Canton 15-784BLK Oil Pan For Ford 4.6L 5.4L Road Race T Sump Pan
Brand: CANTON
SKU: CANTON-15-784BLK
Price: 528.00 USD
Availability: InStock

CANTON

Part #
CANTON-15-784BLK
UPC #
00887753713650

$528.00 USD

~~$568.90 USD~~ $528.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

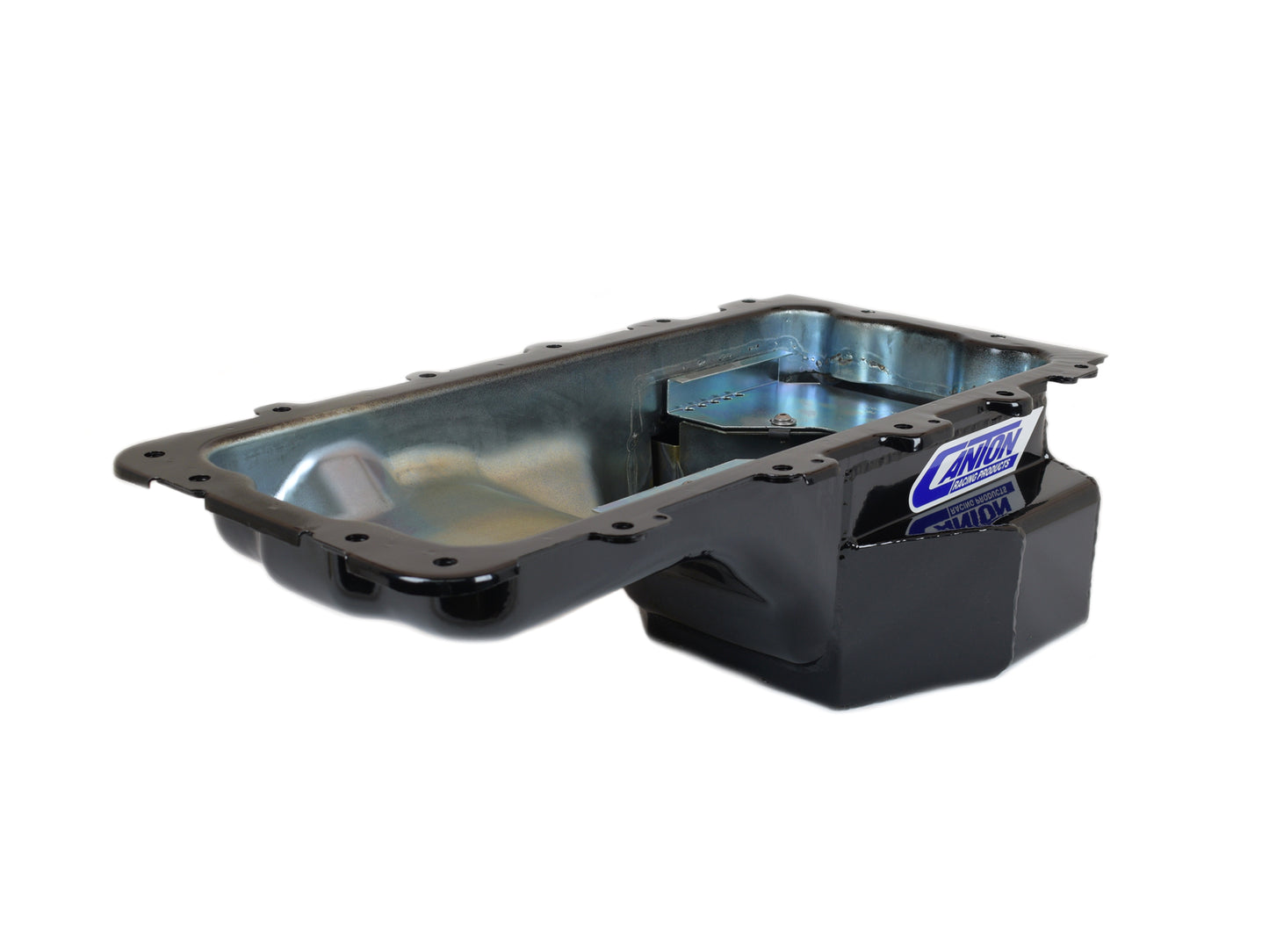

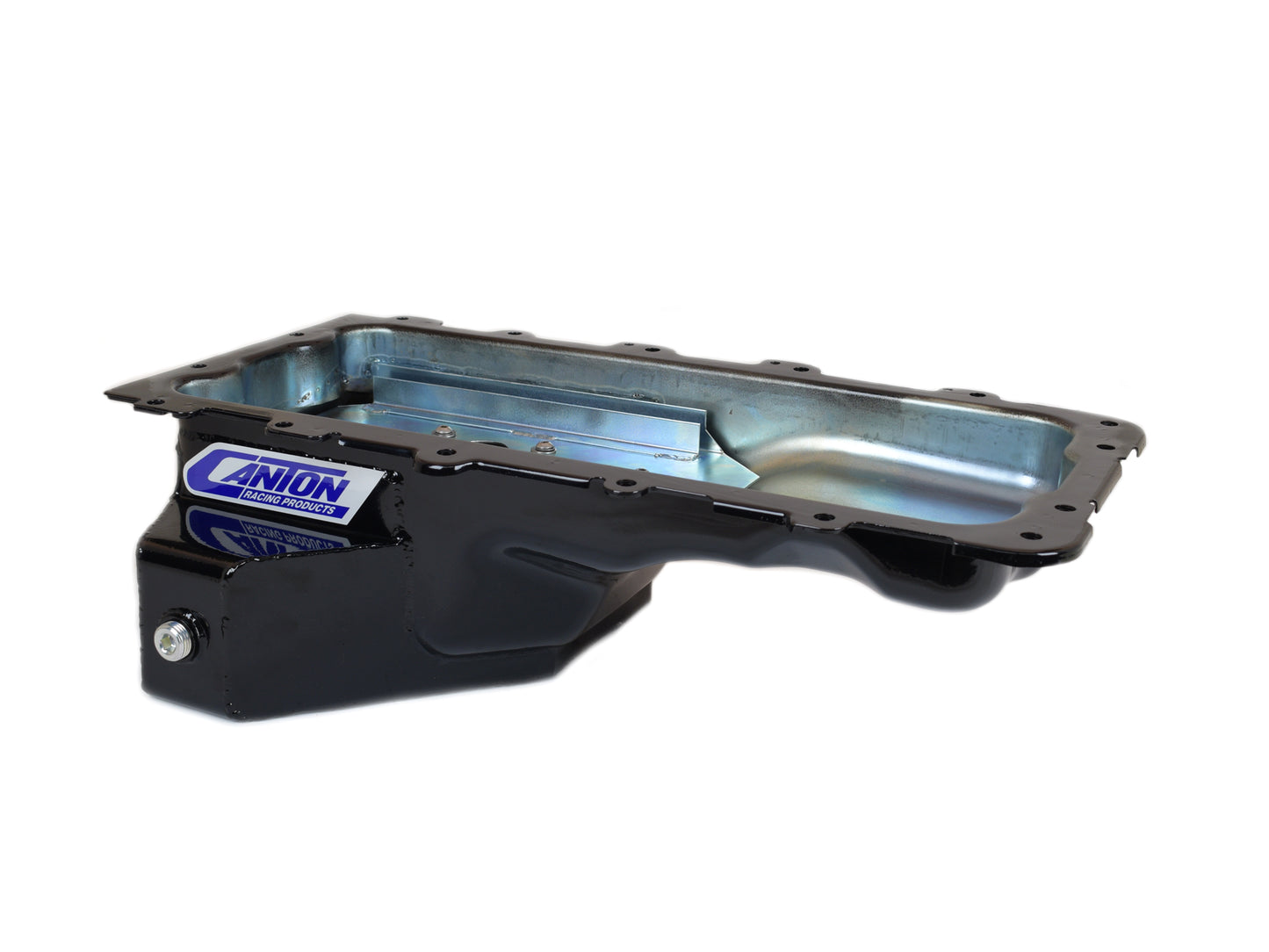

This black powder coat ?T? style modular rear sump road race oil pan is designed for Ford 4.6L/5.4L blocks in ?96-?04 & ?05-up Mustangs. It has 6-1/4" deep, 12-3/4" wide by 9-1/4" long sump and a 7 quart system capacity. Use Your OEM pickup for this pan.

Uses stock pickup
7 qt System Capacity
Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Removable Windage/Anti-Slosh Baffle
1/2" NPT Temperature Bung
Magnetic Drain Plug
Provision for pan mounted dipstick

Attributes

GTIN: 00887753713650
Brand Name: Canton
Baffled: Yes
Gasket or Seal Included: No
Sump Width: 12.75 inches
Sump Depth: 6.25 inches
Stoke: 106MM
Recommended Accessory 2: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Recommended Accessory 1: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Hardware Included: No
Finish: Black Powdercoat
Capacity: 7 Quart System Capacity
Feature 6: Black Powdercoat
Feature 5: Magnetic Drain Plug
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 1: Uses stock pickup * 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: No
Windage Tray Included: No
