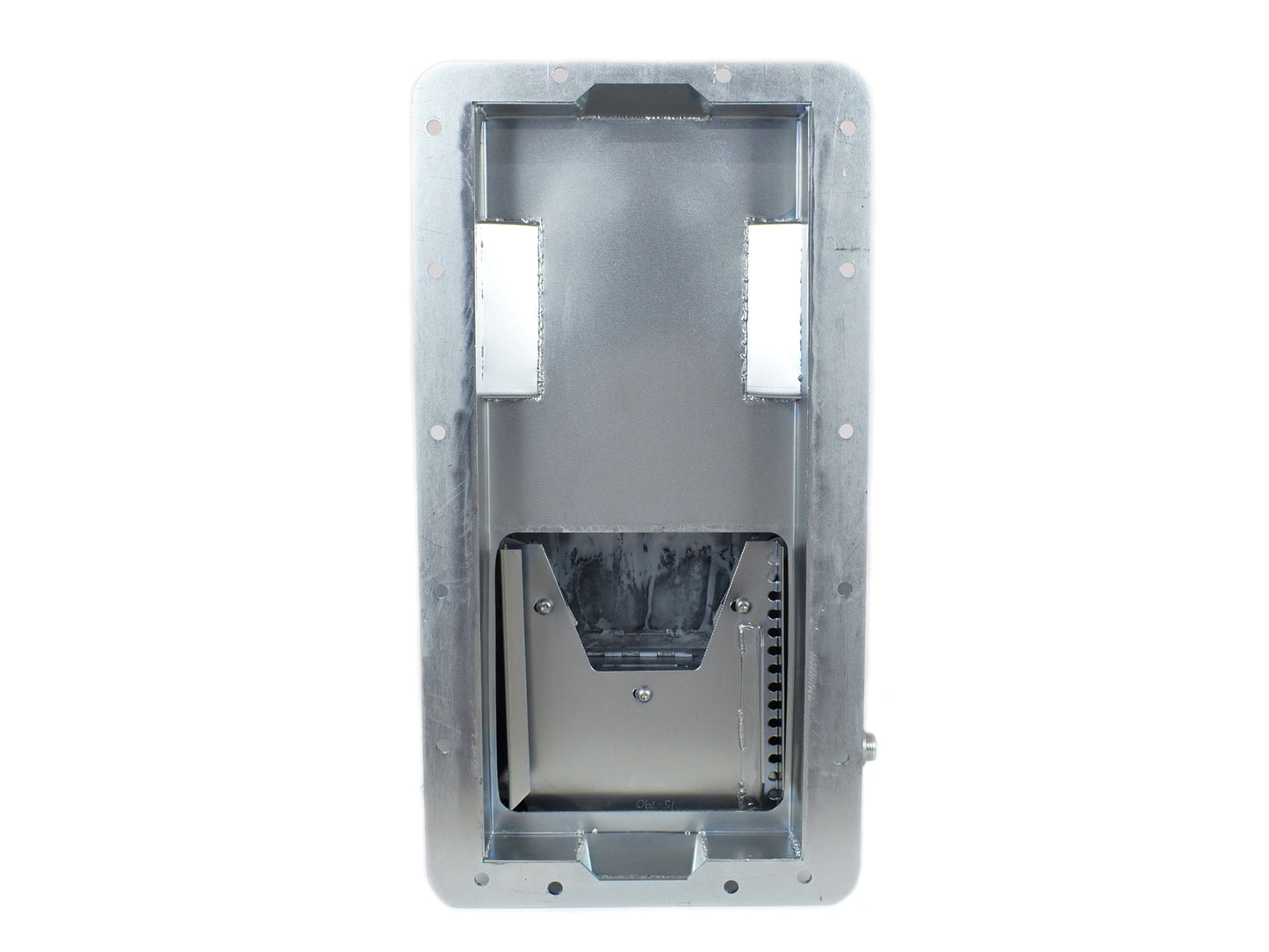

Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap

CANTON:

Part # CANTON-15-790
UPC # 00887753713667

$568.00 USD

~~$748.76 USD~~ $568.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Product Description

This front sump engine swap oil pan is designed to install 4.6/5.4L modular engines into early Ford chassis that require a front sump pan. It has a 6-1/4" deep, 12" wide, by 8" long sump with a 7 quart system capacity. This pan requires our 15-791 pickup for 4.6L and 5.4L 2V pumps or 15-793 pickup for 4.6L and 5.4L 4V pumps, 3V use O.E.M Pickup.

7 qt System Capacity
Road Race Baffle Assembly With Five Trap Doors
Removable Windage/Anti-Slosh Baffle
1/2" NPT Temperature Bung
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753713667
Brand Name: Canton
Baffled: Yes
Hardware Included: No
Sump Width: 12 inches
Sump Depth: 6.25 inches
Stoke: 106MM
Recommended Accessory 4: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Recommended Accessory 3: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
Recommended Accessory 2: 15-793 - Pickup for 4.6L/5.4L 4V Pumps
Recommended Accessory 1: 15-791 - Pickup for 4.6L/5.4L 2V Pumps
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Silver Plating
Feature 6: Magnetic Drain Plug
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Road Race Baffle Assembly With Five Trap Doors
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
