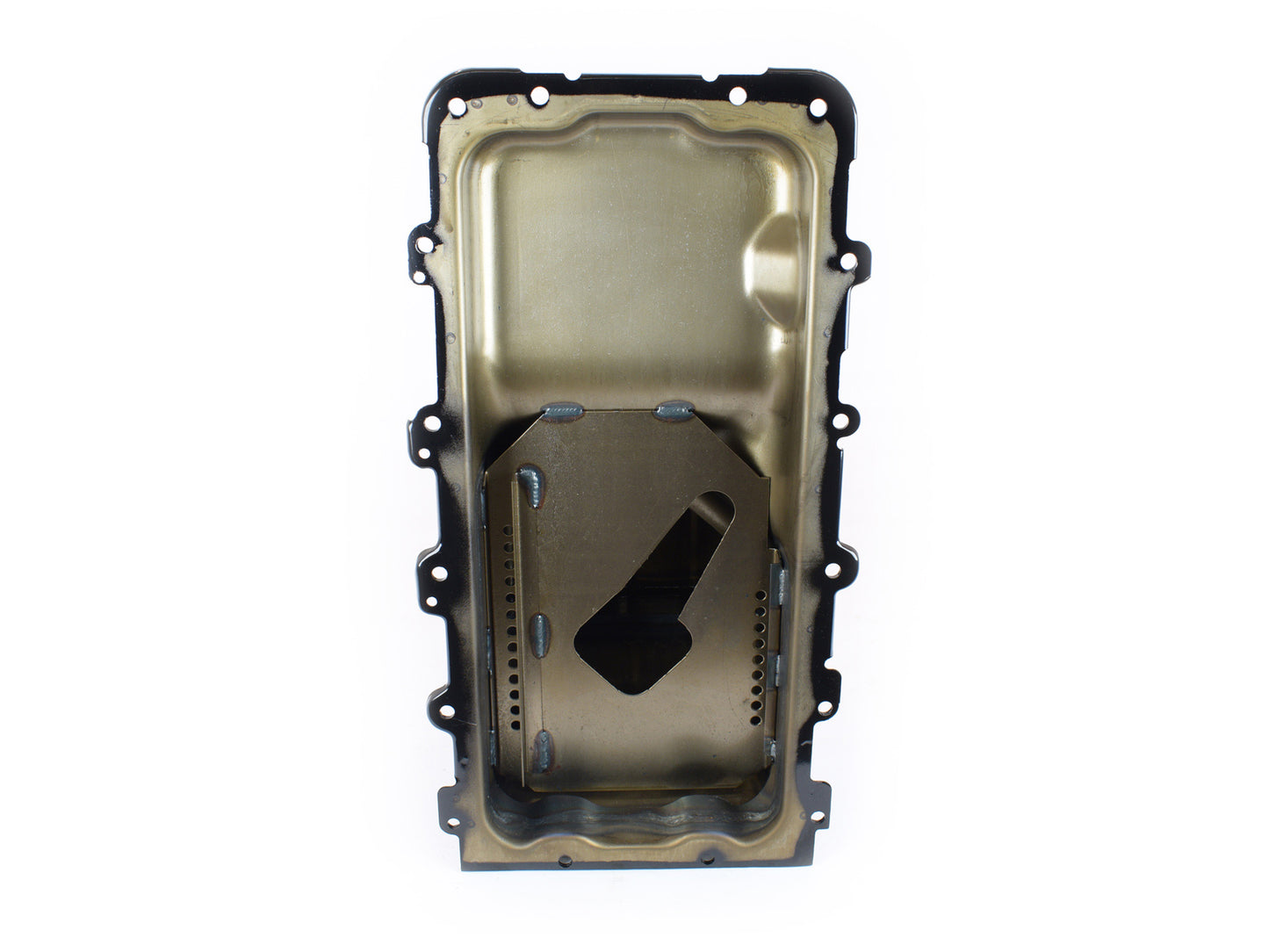

Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black

CANTON:

Part # CANTON-16-780
UPC # 00887753714244

$465.00 USD

~~$613.80 USD~~ $465.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Product Description

This Ford 4.6L/5.4L oil pan is 8-1/4" deep by 10" long by 8" wide rear sump. The oil pan holds 7 quarts for increased oil capacity and oil control. For use in Ford Two & Four wheel drive trucks. Designed for improved cross member clearance in 2WD trucks. This pan requires our 16-781 pickup made for 2V engines.

7 qt System Capacity
Slosh Baffle
Magnetic Drain Plug

Attributes

GTIN: 00887753714244
Brand Name: Canton
Baffled: Yes
Kicked Out: Yes
Sump Width: 8 inches
Sump Depth: 8.25 inches
Stoke: 106MM
Recommended Accessory 3: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Recommended Accessory 2: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
Recommended Accessory 1: 16-781 - Pickup Made for 2 Valve Engines
Pickup Included: No
Material: 14 Gauge Steel
Hardware Included: No
Capacity: 7 Quart System Capacity
Gasket or Seal Included: No
Finish: Black Gloss Powdercoat
Feature 3: Magnetic Drain Plug
Feature 2: Slosh Baffle
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: No
Windage Tray Included: No
