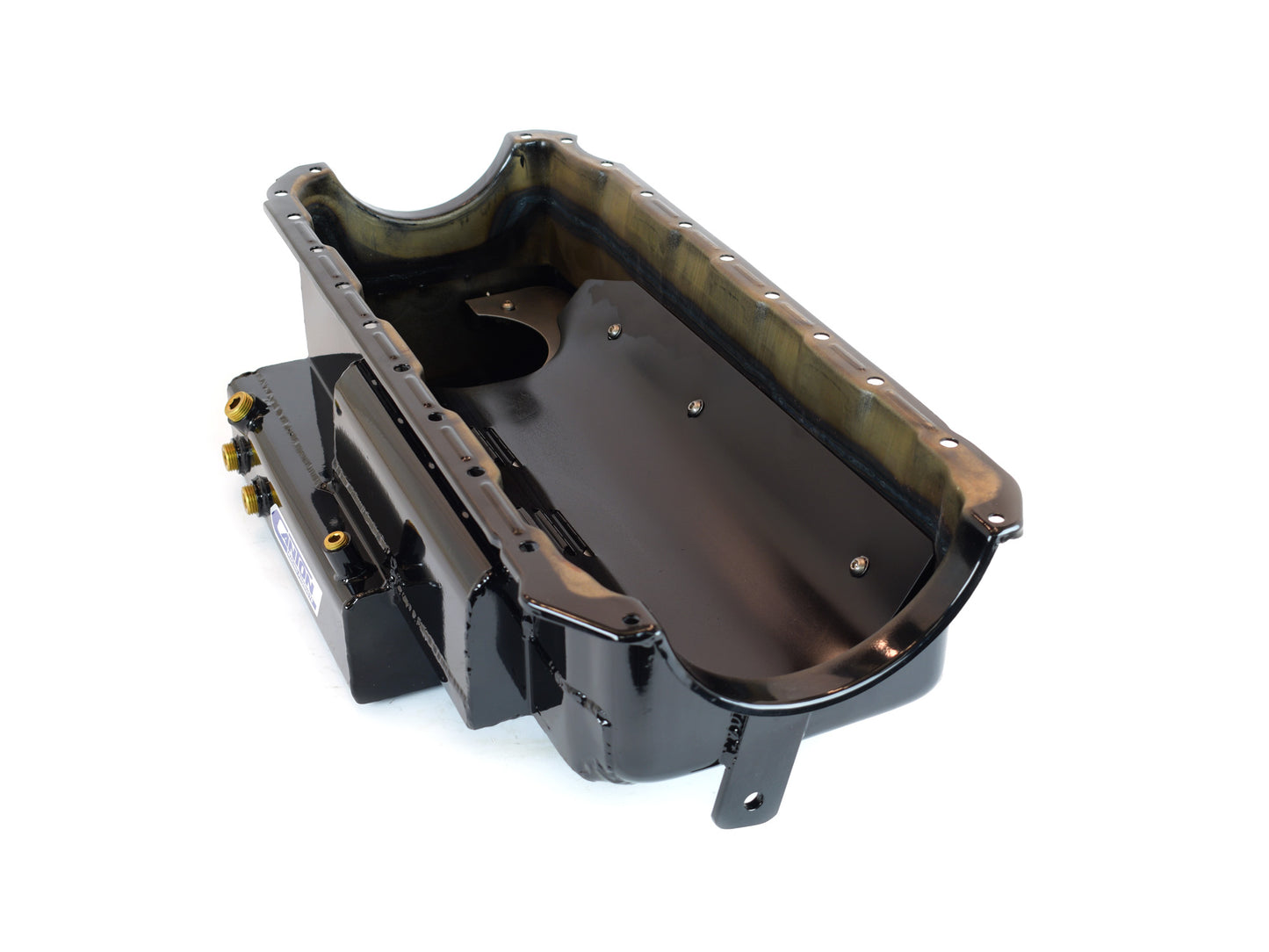

Canton 18-364 Oil Pan For Big Block Chevy Mark 4 Recovery Power Pouch Marine Pan

Canton 18-364 Oil Pan For Big Block Chevy Mark 4 Recovery Power Pouch Marine Pan

CANTON:

Part # CANTON-18-364
UPC # 00887753714398

Regular price $869.00 USD
Regular price $1,146.08 USD Sale price $869.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

This extra high capacity ?T? sump is for standard Big Block Chevys with 2 piece rear seals. The 8" deep by 14" long by 14" wide sump holds 10 quarts of oil. The pan is angled in the front for improved drain back & is notched for a sea pump. Note: These pans have been REDESIGNED to clear O.E.M. marine starters with a 168 tooth flywheel. This pan requires our 18-365 pickup.
  • 10 qt Pan Capacity
  • 14 ga. Steel Construction
  • Six Trap Door Baffles
  • Oil Recovery Pouch
  • Crank Scraper
  • Bolt In Slosh Baffle
  • Built In Louvered Windage Tray
  • Three 1/2" NPT Bungs
  • Provision For our Pan Mounted Dipstick
  • Powder Coating & Brass Plugs For Corrosion Protection
  • GTIN: 00887753714398
  • Brand Name: Canton
  • Recommended Accessory 1: 18-365 - Pickup BBC Oil Pumps
  • Pickup Included: No
  • Material: 14 Gauge Steel
  • Kicked Out: Yes
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Feature 9: Provision For our Pan Mounted Dipstick
  • Capacity: 10 Quart System Capacity
  • Feature 8: Three 1/2" NPT Bungs
  • Feature 7: Built In Louvered Windage Tray
  • Feature 6: Bolt In Slosh Baffle
  • Feature 5: Crank Scraper
  • Feature 4: Oil Recovery Pouch
  • Feature 3: Six Trap Door Baffles
  • Feature 2: 14 ga. Steel Construction
  • Feature 10: Powder Coating & Brass Plugs For Corrosion Protection
  • Feature 1: 10 qt Pan Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: Yes
  • Baffled: Yes
  • Finish: Black Gloss Powdercoat
  • Sump Width: 14 inches
  • Sump Depth: 8 inches
  • Stoke: 4.5 inches
  • Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
  • Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 27 lb
