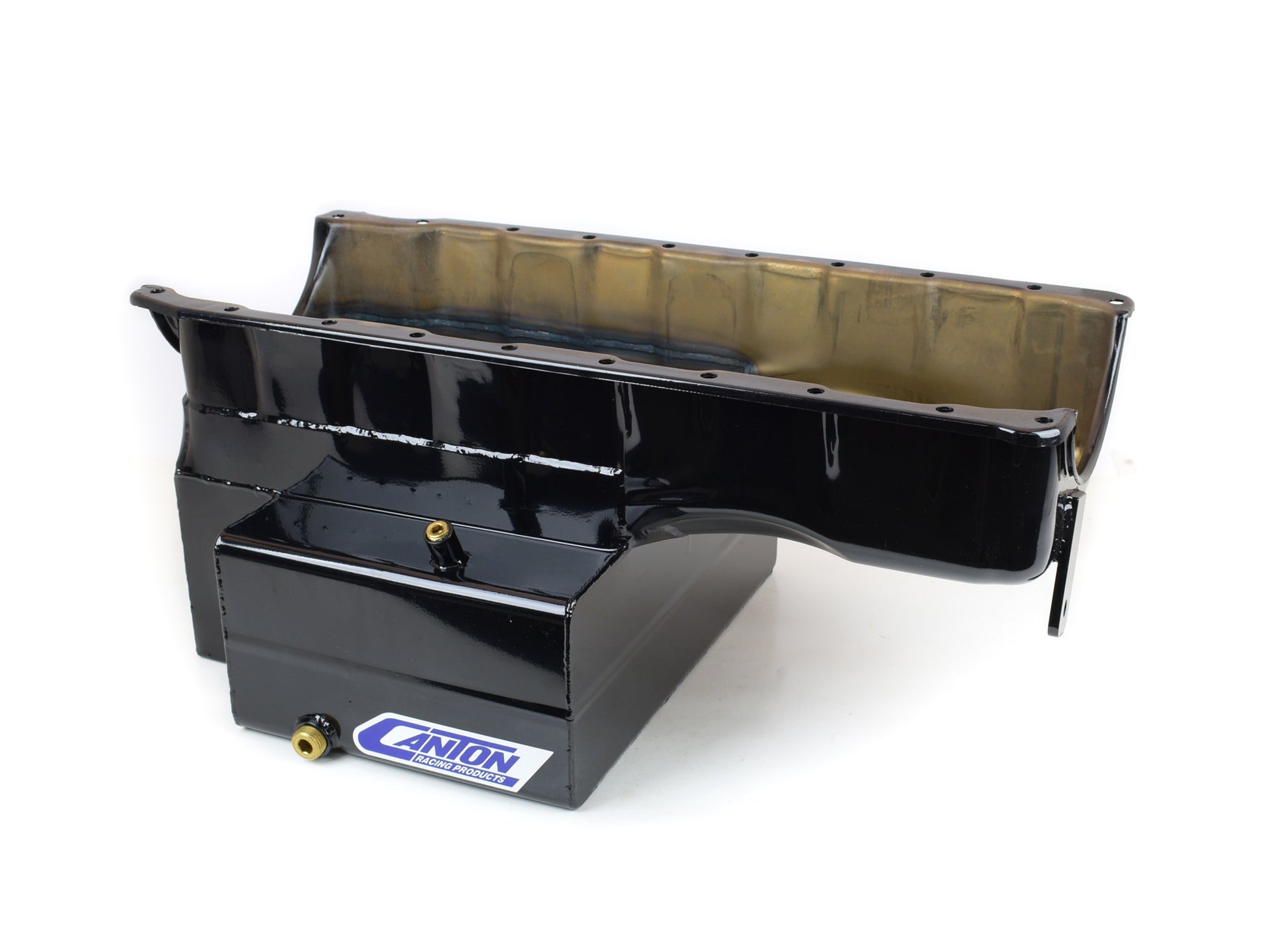

Canton 18-372 Oil Pan Big Block Chevy Mark 5 Gen 6 High Capacity 14Qt Marine Pan

CANTON:

Part # CANTON-18-372
UPC # 00887753714442

$660.00 USD

~~$870.20 USD~~ $660.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Product Description

This Big Block Chevy marine pan is for Mark 5 blocks with one piece seal. It is designed for applications with the pickup at the flywheel end of the engine. It has a 10-1/2" deep, 13" long, 14-1/4" wide sump, and holds 14 quarts of oil. This pan requires our 18-371 pickup.

14 qt Pan Capacity
14 ga. Steel Construction

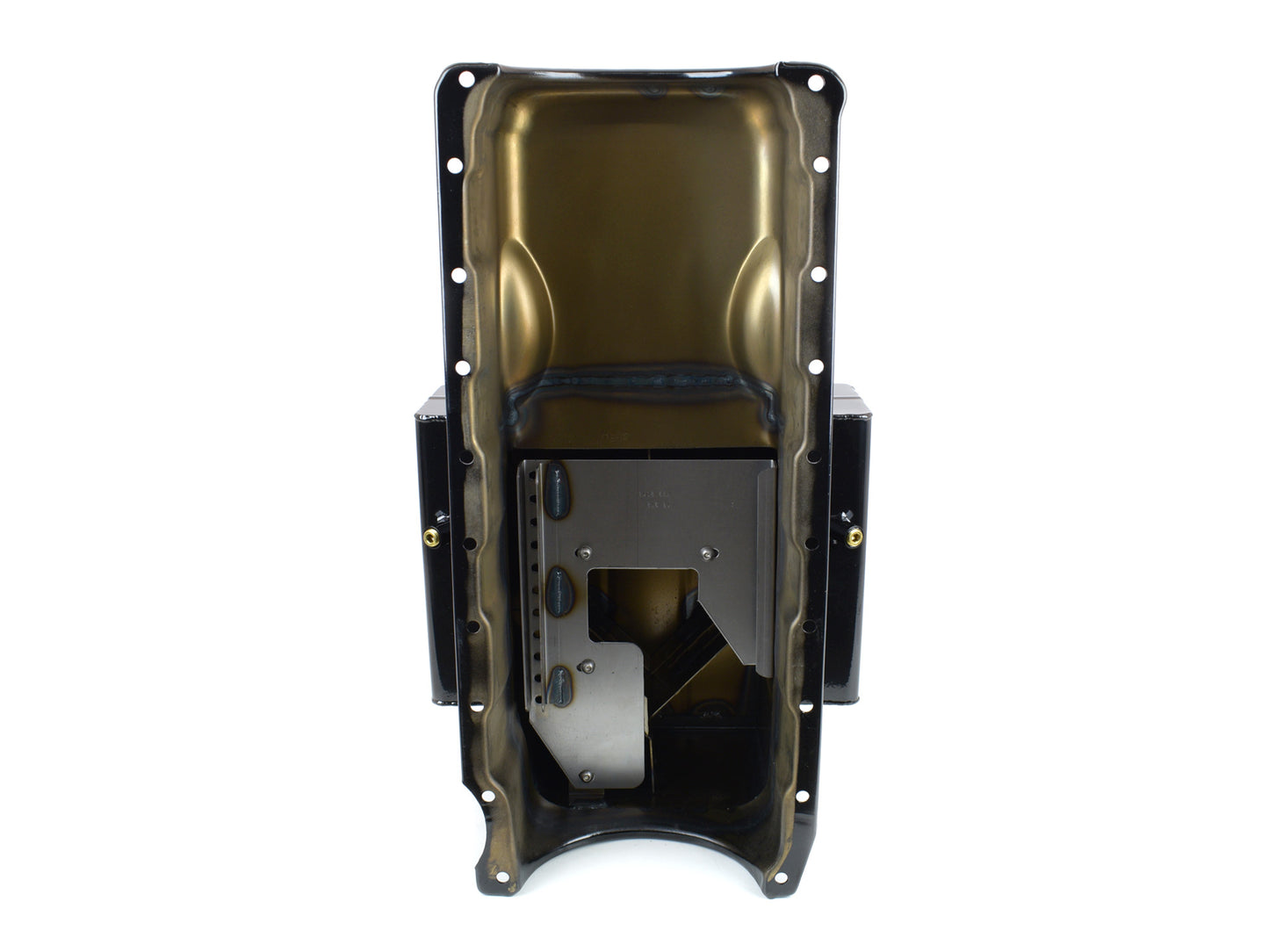

Diamond Shaped Baffle Assembly With Four Trap Door Baffles
Removable Windage/Anti-Slosh Baffle
1/2" NPT Drain Fittings
Provision For our Pan Mounted Dipstick
Powder Coating & Brass Plugs For Corrosion Protection

Attributes

GTIN: 00887753714442
Brand Name: Canton
Feature 6: Provision For our Pan Mounted Dipstick
Feature 5: 1/2" NPT Drain Fittings
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Diamond Shaped Baffle Assembly With Four Trap Door Baffles
Feature 2: 14 ga. Steel Construction
Feature 1: 14 qt Pan Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
Baffled: Yes
Finish: Black Gloss Powdercoat
Stoke: 4.5 inches
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 18-371 - Our Stock Replacement Pickup
Pickup Included: No
Material: 14 Gauge Steel
Kicked Out: Yes
Hardware Included: No
Gasket or Seal Included: No
Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
Capacity: 14 Quart System Capacity
