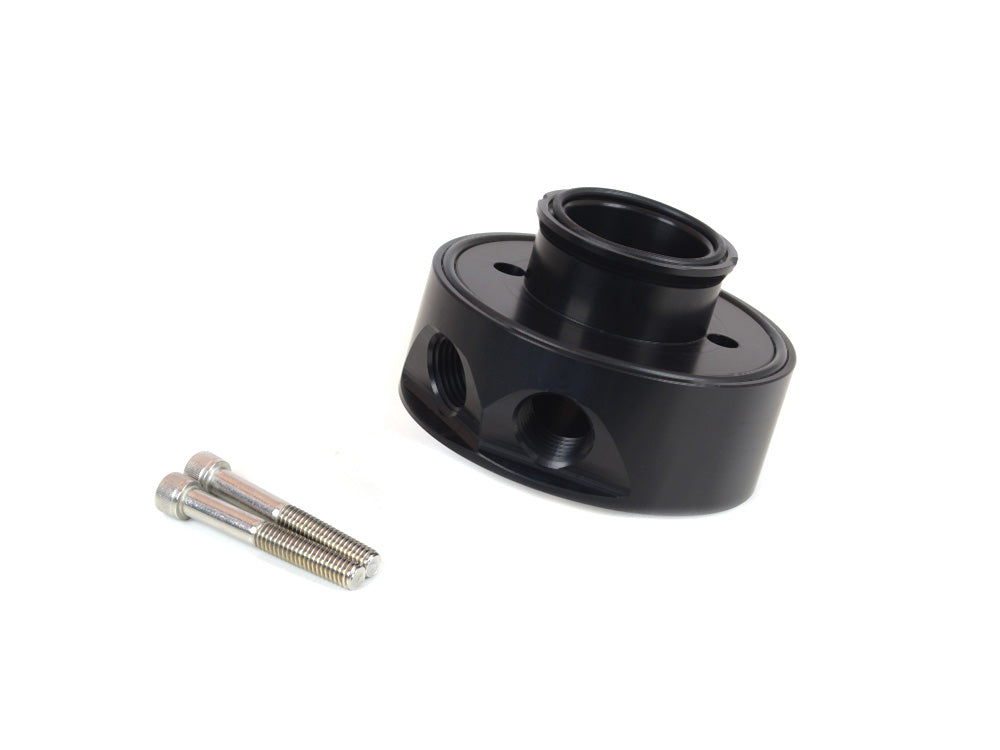

Canton 22-550 Billet Aluminum Oil Input Adapter Sandwich Style Small Block Chevy

Canton 22-550 Billet Aluminum Oil Input Adapter Sandwich Style Small Block Chevy

CANTON

Part #
CANTON-22-550
UPC #
00887753715821

$159.00 USD
$190.80 USD $159.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

This SBC Oil Input Adapter and Bypass Eliminator provides two 1/2" N.P.T. oil input ports, one before filtration (for an external oil pump) and one after filtration (for an Accusump). It mounts between the oil filter and block and bolts into the mounting holes left after the bypass is removed. Removing the stock bypass allows the engine to receive filtered oil all the time. The filter is lowered only 1-1/2". Comes with hardware and O-Rings.
  • 1/2" NPT Inlet Port
  • 1/2" NPT Outlet Port
  • Bolts Into Stock Bypass Mounting Holes
  • Machined Billet Aluminum
  • Hardware Included
  • GTIN: 00887753715821
  • Brand Name: Canton
  • Feature 1: 1/2" NPT Inlet Port
  • Feature 2: 1/2" NPT Outlet Port
  • Feature 3: Bolts Into Stock Bypass Mounting Holes
  • Feature 4: Machined Billet Aluminum
  • Feature 5: Hardware Included
  • Recommended Accessory 1: 98-002 - Replacement O-Ring Kit
  • Recommended Accessory 2: 23-245 - 1/2" NPT to -10 AN Steel Fitting
  • Recommended Accessory 3: 23-246 - 1/2" NPT to -12 AN Steel Fitting
  • Recommended Accessory 4: 23-243A - 1/2" NPT to -6 AN Aluminum Fitting
  • Recommended Accessory 5: 23-244A - 1/2" NPT to -8 AN Aluminum Fitting
  • Recommended Accessory 6: 23-245A - 1/2" NPT to -10 AN Aluminum Fitting
  • Recommended Accessory 7: 23-246A - 1/2" NPT to -12 AN Aluminum Fitting
  • Recommended Accessory 8: 23-345A - 90 degree 1/2" NPT to -10 AN
  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 5.75 x 4.5 x 4.5 inches
  • Weight: 1.8 lb
