Cast Aluminum Reducer Elbow 90° - Tight radius

Very narrow reducing cast aluminum elbow

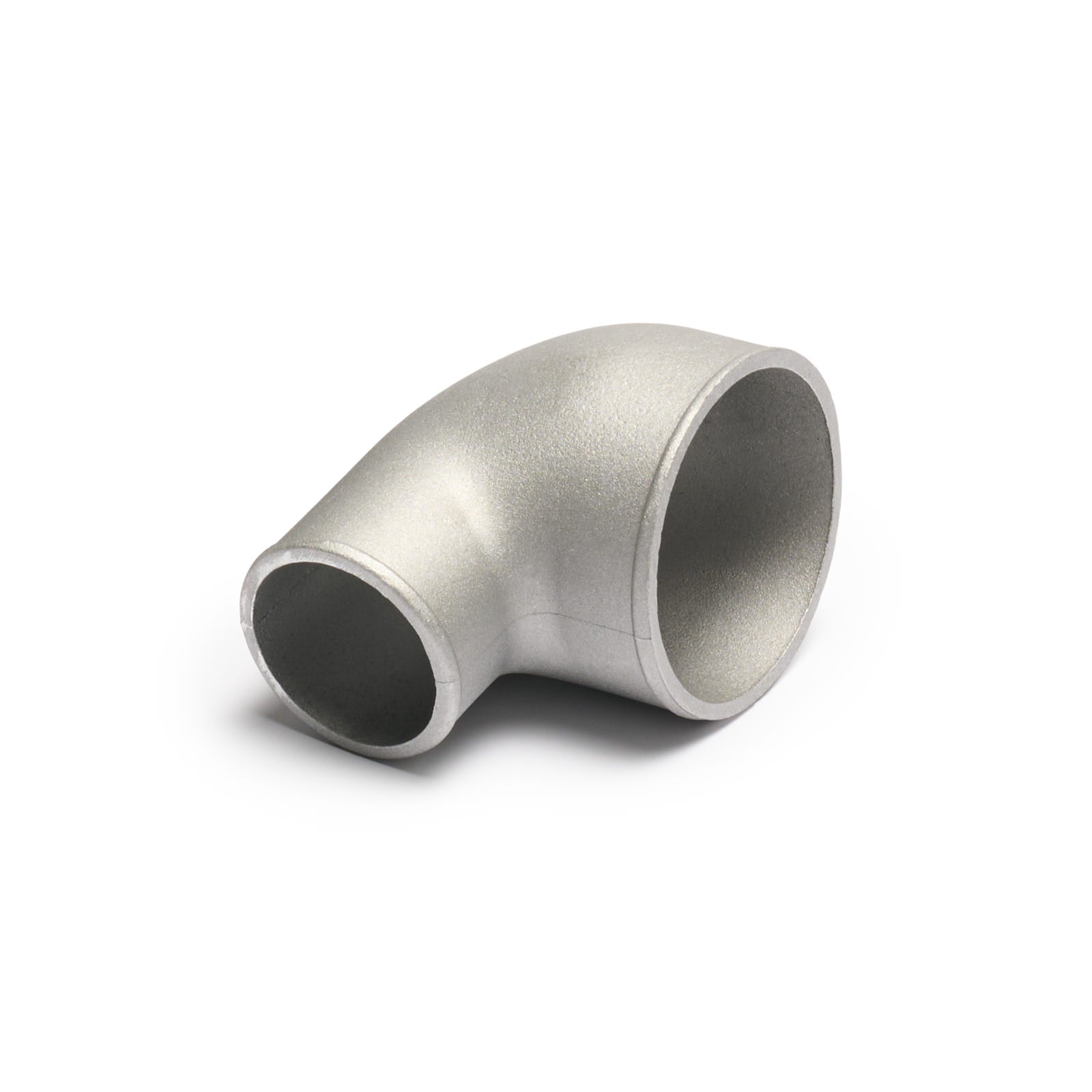

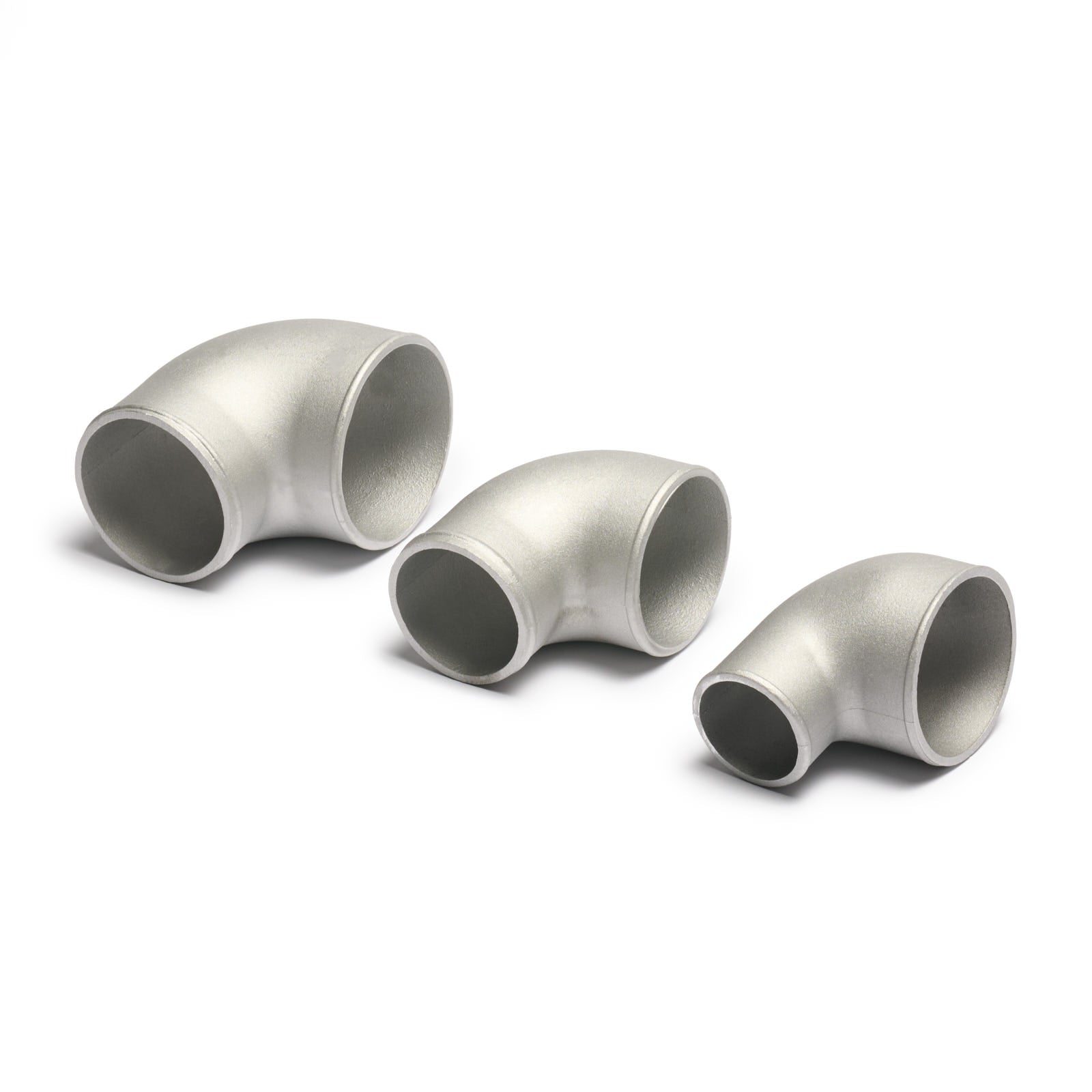

BOOST products cast aluminum elbow with narrow radius - reducing

This cast aluminum elbow is perfect for tight/ minimal space conditions, e.g. in the engine compartment at the turbocharger compressor outlet or intercooler connections, throttle valves, etc.. The cast aluminum elbow has an extremely small radius and even has beads on both sides to enable hose installation with silicone hoses. The bends have already been successfully tested in motorsport up to 3.5 bar boost pressure.

Attention: The cast aluminum arches may contain small burrs and casting residues. Please grind these away with a file before installation. The pictures with silicone hoses and clamps are for illustration purposes only and are not part of the article!
