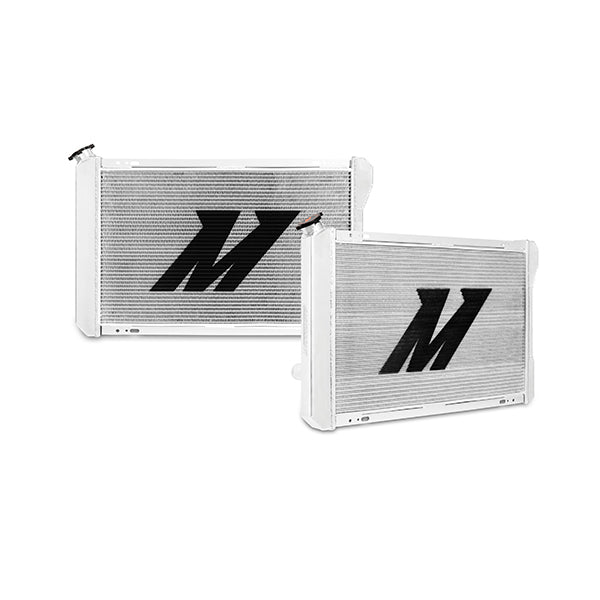

Mishimoto Chevrolet Camaro / Pontiac Firebird 2-Row Performance Aluminum Radiator MMRAD-CAM-82

A street or track muscle car demands a reliable cooling system. Outfit your Chevrolet Camaro or Pontiac Firebird with the best upgrade in cooling efficiency that fits in your tight budget. The Mishimoto Aluminum Radiator utilizes a 2 row core with precision TIG welded aluminum end tanks for increased reliability and cooling efficiency. Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission. The Mishimoto Aluminum Radiator is a direct fit product that requires no cutting or trimming and is protected by our lifetime warranty.

• Full aluminum radiator featuring robust TIG-welded construction
• Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
• Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• Polished aluminum end tanks enhance engine bay aesthetics
• Includes Mishimoto M12 x 1.25" Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748666003194
• Brand Name: Mishimoto
• TechSpec Overall Length (in): 19.5
• TechSpec Overall Width (ins): 4.5
• TechSpec Core Length (in): 26.2
• TechSpec Core Height (in): 16.5
• TechSpec Fluid Capacity (gal): 4.63
• TechSpec Rows: 2
• TechSpec Inlet (in): 1.37
• TechSpec Outlet (in): 1.57
• TechSpec Core Thickness (in): 1.96
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec DPI: 951
• TechSpec Material: Aluminum
• TechSpec Applications: 1982-1992 Chevrolet Camaro L6 & V8--1982-1992 Pontiac Firebird Trans Am
• TechSpec Engine Codes: V6--V8
• TechSpec Chassis Codes: N/A
• TechSpec Note: N/A
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal-- 1/8-inch NPT Plug-- 1/4-inch NPT Plugs--Mishimoto Lifetime Warranty
• SellingPoint01: Full aluminum radiator featuring robust TIG-welded construction
• SellingPoint02: Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
• SellingPoint03: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint04: Polished aluminum end tanks enhance engine bay aesthetics
• SellingPoint05: Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint06: Mishimoto Lifetime Warranty
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Overall Height (in): 31.5

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29 x 9 x 24 inches
• Weight: 21 lb
