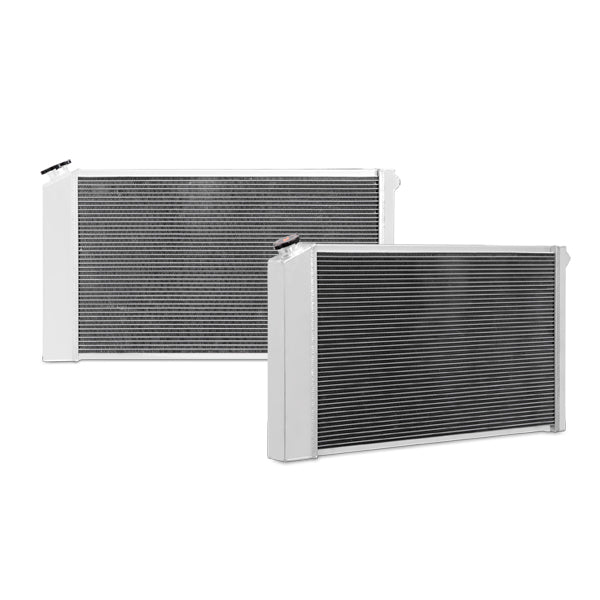

Mishimoto Chevrolet Chevelle 3-Row Performance Aluminum Radiator, 1968 - 1972 MMRAD-CHE-68X

An ideal upgrade for the brittle stock radiator, the Mishimoto 1968-72 Chevrolet Chevelle X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Chevrolet Chevelle X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• 3-row brazed aluminum core with TIG-welded end tanks
• Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
• Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
• Billet aluminum fill neck
• Includes magnetic drain plug
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354016062
• Brand Name: Mishimoto
• TechSpec Overall Height (in): 33.7
• TechSpec Overall Length (in): 18.9
• TechSpec Overall Width (ins): 4.6
• TechSpec Core Length (in): 28.2
• TechSpec Core Height (in): 16.9
• TechSpec Fluid Capacity (gal): 4.42
• TechSpec Rows: 3
• TechSpec Inlet (in): 1.5
• TechSpec Outlet (in): 1.6
• TechSpec Core Thickness (in): 2.2
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec DPI: 161
• TechSpec Material: Aluminum
• TechSpec Applications: 1968-1973 Chevy Chevelle 307ci (5.0L) V8, 350ci (5.7L) V8--1970-1977 Chevy Monte Carlo 305ci (5.0L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8--1968-1977 Chevy El Camino 250ci (4.1L) L6, 307ci (5.0L) V8, 327ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8, 454ci (7.4L) V8--1973-1986 Chevy, GMC C, K Series 250ci (4.1L) L6, 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8
• TechSpec Engine Codes: 250ci (4.1L) L6--292ci (4.8L) L6--305ci (5.0L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--400ci (6.6L) V8--454ci (7.4L) V8
• TechSpec Chassis Codes: N/A
• TechSpec Note: Transmission cooler fitting size: 1/4-inch BSPP
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• SellingPoint01: 100-percent aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• SellingPoint02: 3-row brazed aluminum core with TIG-welded end tanks
• SellingPoint03: Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
• SellingPoint04: Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
• SellingPoint05: Billet aluminum fill neck
• SellingPoint06: Includes magnetic drain plug
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22 x 6 x 36 inches
• Weight: 21 lb
