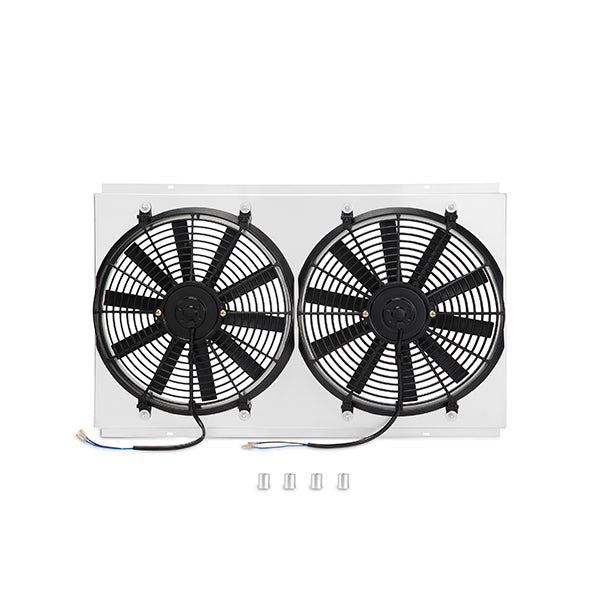

Mishimoto Chevrolet Chevelle Performance Aluminum Fan Shroud with Probe 1968-1972 MMFS-CHE-68K

Keep your 1968-72 Chevrolet Chevelle cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto Chevrolet Chevelle Performance Radiator and includes two 14in high-flow electric fans that produce over 1300 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. As with all our products, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.

• Designed to mate exclusively with Mishimoto's Chevrolet Chevelle Performance Radiator
• Replaces failure-prone stock mechanical fan
• Includes two high-flow 14in electric fans, each providing over 1,300 cfm of airflow
• All-aluminum construction
• Optional fan controller provides complete control of coolant temperatures at idle

Attributes:

• GTIN: 00811580037641
• Brand Name: Mishimoto
• Color: Silver
• Finish: Brushed
• Installation Difficulty: 3
• Material: Aluminum
• TechSpec Engine Codes: 250ci (4.1L) L6--292ci (4.8L) L6--305ci (5.0L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--400ci (6.6L) V8--454ci (7.4L) V8
• TechSpec Chassis Codes: N/A
• TechSpec Weight (lbs): N/A
• TechSpec Includes: (1) Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mishimoto Lifetime Warranty
• TechSpec CFM (Each Fan): 1300
• TechSpec Note: Electric fans already come attached to the shroud.----Fans may require additional wiring.
• TechSpec Height (in): 19.7
• TechSpec Length (in): 28.74
• TechSpec Width (in): 3.81
• TechSpec Applications: 1968-1973 Chevrolet Chevelle 307ci (5.0L) V8, 350ci (5.7L) V8--1970-1977 Chevrolet Monte Carlo 305ci (5.0L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8--1968-1977 Chevrolet El Camino 250ci (4.1L) L6, 307ci (5.0L) V8, 327ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8, 454ci (7.4L) V8--1973-1986 Chevrolet/GM C/K Series 250ci (4.1L) L6, 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8
• SellingPoint01: Includes two high-flow 14-in electric fans, each providing over 1,300 cfm of airflow
• SellingPoint02: All-aluminum construction
• SellingPoint03: Optional fan controller provides complete control of coolant temperatures at idle
• SellingPoint04: Designed to mate exclusively with Mishimoto's Chevrolet Chevelle Performance Radiator
• SellingPoint05: Replaces failure-prone stock mechanical fan
• SellingPoint06: No cutting or bending of shroud required
• SellingPoint07: Includes all mounting hardware for installation
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 31 x 6 x 21 inches
• Weight: 6 lb
