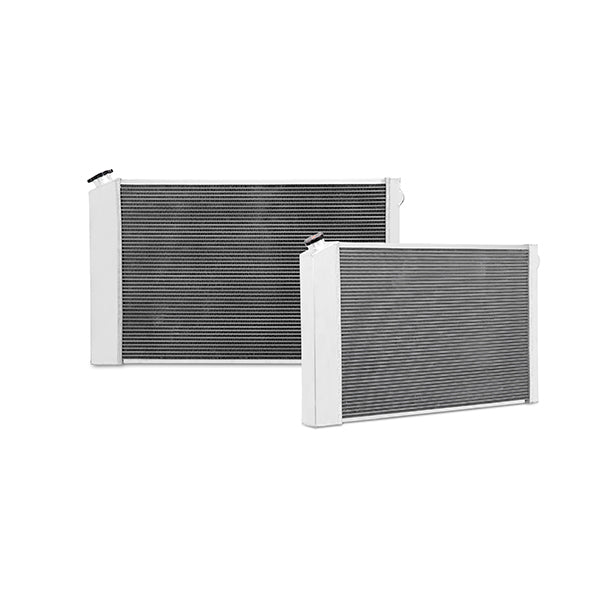

Mishimoto Chevrolet/GM C/K Truck Performance Aluminum Radiator w/ 19in Core, 1978-1986 MMRAD-CK-78X

An ideal upgrade for the brittle stock radiator, the Mishimoto 1978-1986 GM C/K Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, don't overlook the importance of installing an upgraded classic truck radiator in your engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. This GM C/K truck radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This classic car radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every GM C/K truck radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• All-aluminum construction with durable, TIG-welded end tanks
• Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
• 3-row brazed aluminum core
• Increased coolant capacity and superior heat dissipation
• Billet aluminum fill neck
• Includes magnetic drain plug to capture metallic debris and fragments in cooling system
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354016130
• Brand Name: Mishimoto
• TechSpec Overall Height (in): 33.9
• TechSpec Overall Length (in): 20.7
• TechSpec Overall Width (ins): 4.5
• TechSpec Core Length (in): 28.3
• TechSpec Core Height (in): 18.9
• TechSpec Fluid Capacity (gal): 4.87
• TechSpec Rows: 3
• TechSpec Inlet (in): 1.5
• TechSpec Outlet (in): 1.6
• TechSpec Core Thickness (in): 2.5
• TechSpec Drain Plug Thread Size: 1/4-18 NPT
• TechSpec DPI: 716
• TechSpec Material: Aluminum
• TechSpec Applications: 1978-1986 GM C/K Series Pickup 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8--1987-1991 Chevy Blazer 305ci (5.0L) V8, 350ci (5.7L) V8--1981-1991 GMC Jimmy 305ci (5.0L) V8, 350ci (5.7L) V8--1987-1991 R Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8--1987-1991 V Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8
• TechSpec Engine Codes: 292ci (4.8L) L6--305ci (5.0L) V8--350ci (5.7L) V8--454ci (7.4L) V8
• TechSpec Chassis Codes: N/A
• TechSpec Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP----Fits with factory air conditioning.----This radiator is not designed to work with the factory heavy-duty cooling system.
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• SellingPoint01: All-aluminum construction with durable, TIG-welded end tanks
• SellingPoint02: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
• SellingPoint03: 3-row brazed aluminum core
• SellingPoint04: Increased coolant capacity and superior heat dissipation
• SellingPoint05: Billet aluminum fill neck
• SellingPoint06: Includes magnetic drain plug to capture metallic debris and fragments in cooling system
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23 x 6 x 37 inches
• Weight: 25 lb
