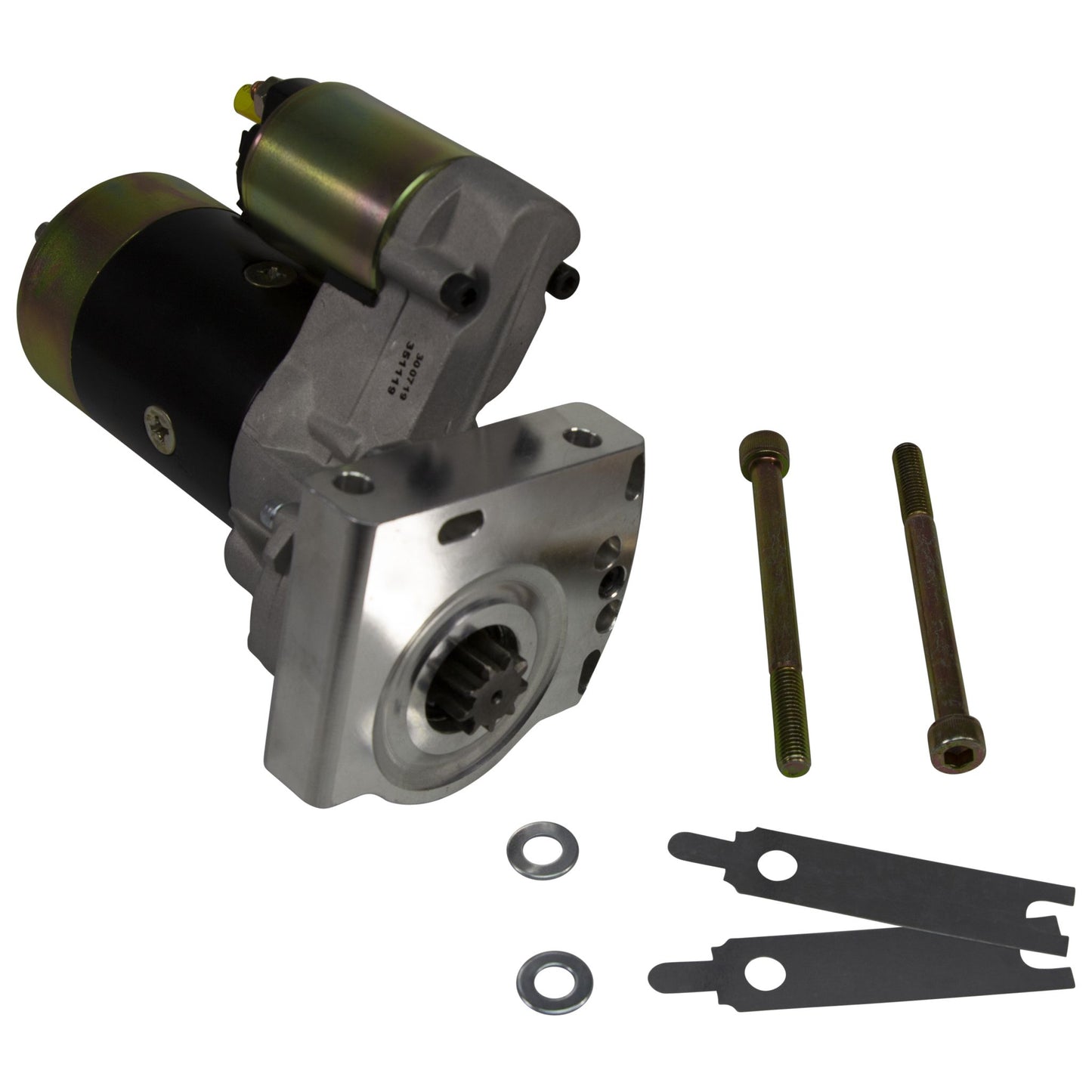

TCI Clockable 2.5 HP Mini Starter for GM LS 351119

Attributes:

• GTIN: 00788120162531
• Brand Name: TCI Automotive
• Starter Style: Mini Hitachi
• Adjustable Mounting Block: Yes
• Starter Rotation: Standard
• Starter Finish: Black / Gold Iridite
• Maximum Recommended Compression Ratio: 16.0:1
• Gear Reduction Ratio: 3.7:1
• Mounting Block Material: Aluminum
• Includes Hardware?: Yes
• Includes Shims?: Yes
• Motor Horsepower: 2.5
• Kilowatt Output: 1.8
• Torque: 180
• Includes Heat Wrap?: No
• Item Grade: Performance
• New or Remanufactured?: New
• Pinion Gear Teeth: 9
• Weight: 11.5
• Battery Lug Thread/Size: M8x1.25
• Ignition Wire Lug Thread/Size: 12-10 awg. or M4 x .7
• Recommended Battery Cable Eyelet I.D.: 5/16
• Recommended Ignition Cable Eyelet I.D.: #8
• Clockable?: Yes
• Clockable Positions: 3

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Electronically Announced

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 8 x 8 x 8 inches
• Weight: 11.5 lb
