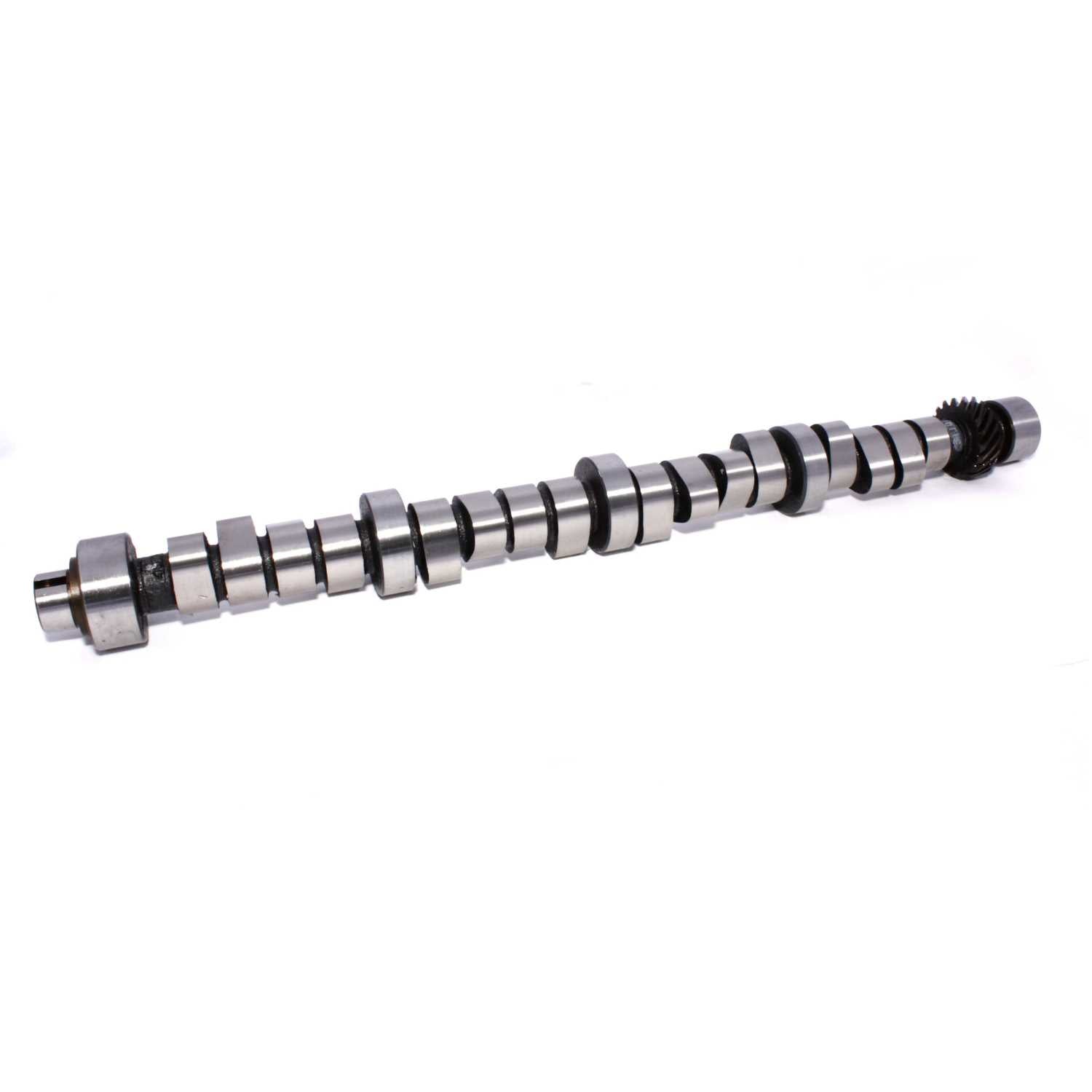

COMP Cams Computer Controlled 206/210 Hydraulic Roller Cam for Chrysler Magnum COMP-20-602-9

Attributes:

• GTIN: 00036584082675
• Brand Name: COMP Cams
• Camshaft Series: Computer Controlled
• Usage: OEM
• Cam Type: Hydraulic Roller
• Grind Number: 262HR-12
• Basic Operating RPM Range: 800-5,000
• Intake Duration at .050 Inch Lift: 206
• Exhaust Duration at .050 inch Lift: 210
• Advertised Intake Duration: 262
• Advertised Exhaust Duration: 264
• Lobe Separation: 112
• Intake Valve Lift: 0.48
• Exhaust Valve Lift: 0.512
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: B001O0FNW0
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 2.9 x 2.6 inches
• Weight: 9.05 lb
