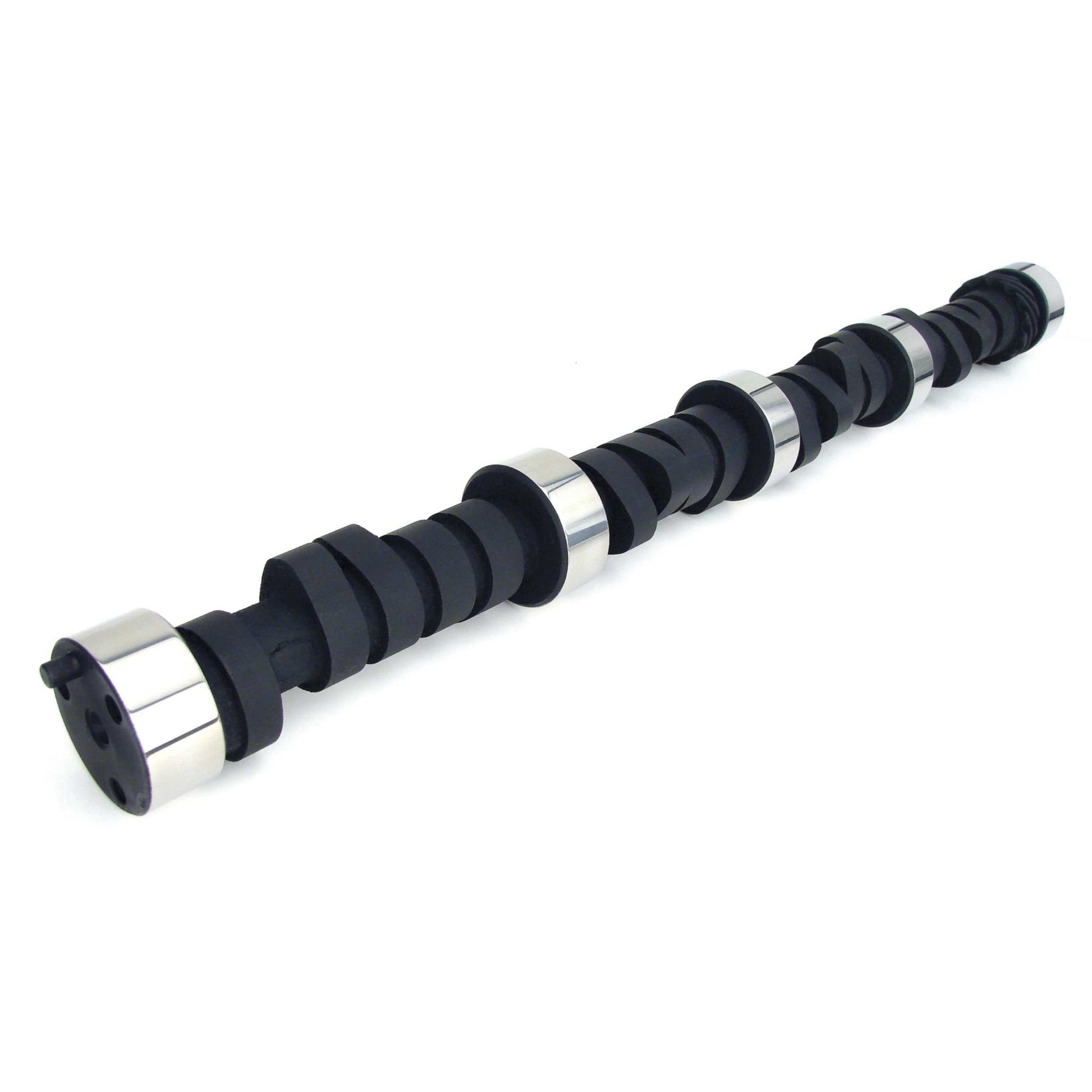

COMP Cams Computer Controlled 206/212 Hydraulic Flat Cam for Chevrolet Small Block COMP-12-388-4

Attributes:

• GTIN: 00036584520399
• Brand Name: COMP Cams
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Lifter Type: Hydraulic Flat Tappet
• Amazon ASIN: B000CEQDE6
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exemption Reason: C.A.R.B. EO Issued
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. E.O. Number: D-279-5
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• Camshaft Series: Computer Controlled
• Usage: OEM
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 252AH-12
• Basic Operating RPM Range: 1,000-5,000
• Intake Duration at .050 Inch Lift: 206
• Exhaust Duration at .050 inch Lift: 212
• Advertised Intake Duration: 252
• Advertised Exhaust Duration: 260
• Lobe Separation: 112
• Intake Valve Lift: 0.425
• Exhaust Valve Lift: 0.44

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.2 x 2.9 x 2.1 inches
• Weight: 9.1271 lb
