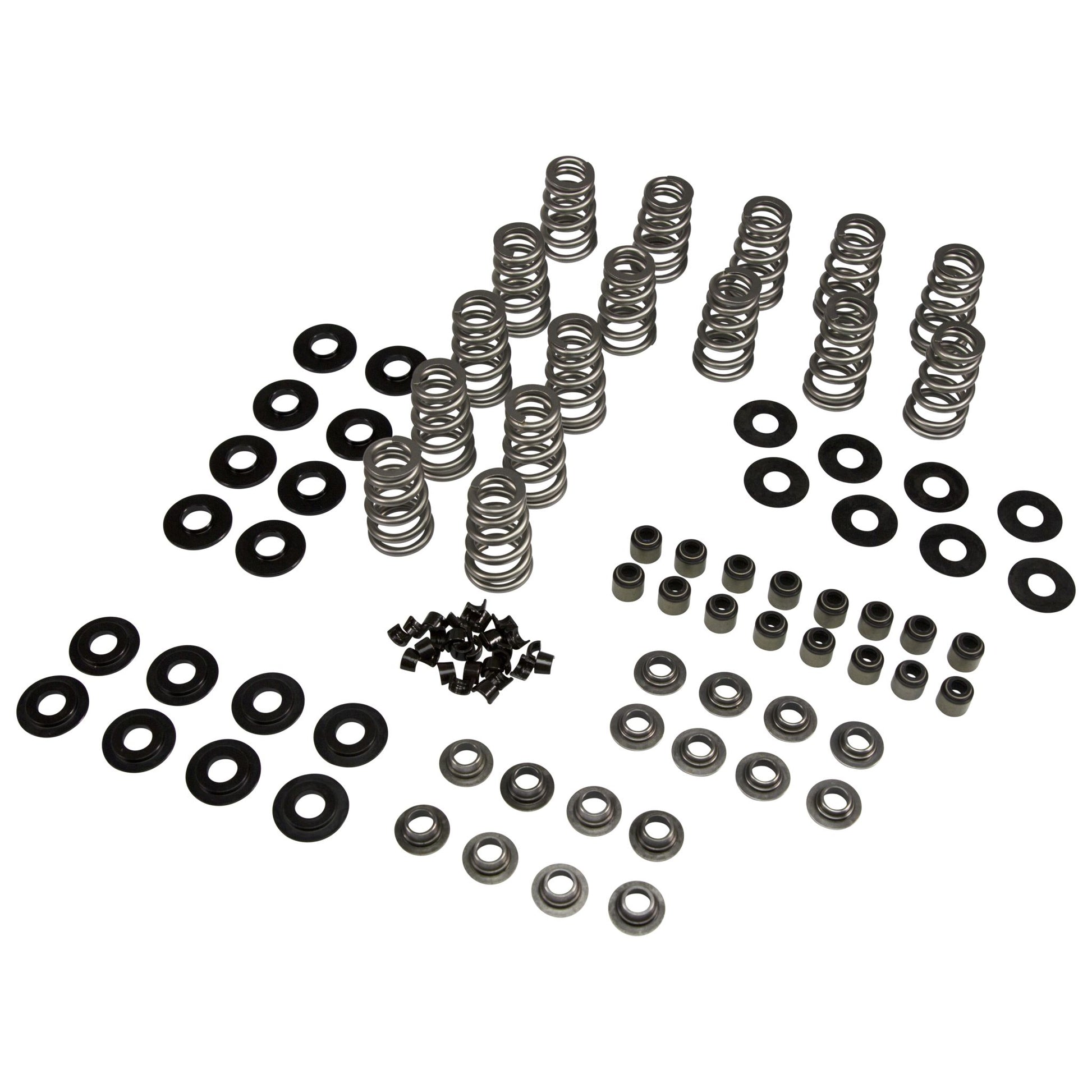

COMP Cams Conical .625" Max Lift Valve Spring Kit for GM GEN V LT4 w/ Tool Steel Retainers COMP-7228TSD-KIT

Attributes:

• GTIN: 00036584400011
• Brand Name: COMP Cams
• Big End Outside Diameter: 1.286
• Machine Work Required?: No
• Max Lift: 0.625
• Small End Outside Diameter: 1.03
• ID Big End: 0.918
• ID Small End: 0.662
• Coil Bind Height: 1.125
• Installed Height: 1.8
• Seat Pressure: 136
• Open Load: 410
• Spring Rate: 440
• Includes Shims?: Yes
• Included Seats: 4680-8
• Spring Seat Type: Steel
• Includes Retainers?: Yes
• Retainer Material: Tool Steel
• Damper: No
• Valve Spring Series: Conical
• Spring Style: Conical
• Free Length: 2.109
• Includes Seats?: Yes
• Number of Springs: 1
• Cam Type: Hydraulic Roller

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 11.9 x 6.4 x 2.9 inches
• Weight: 3.48 lb
