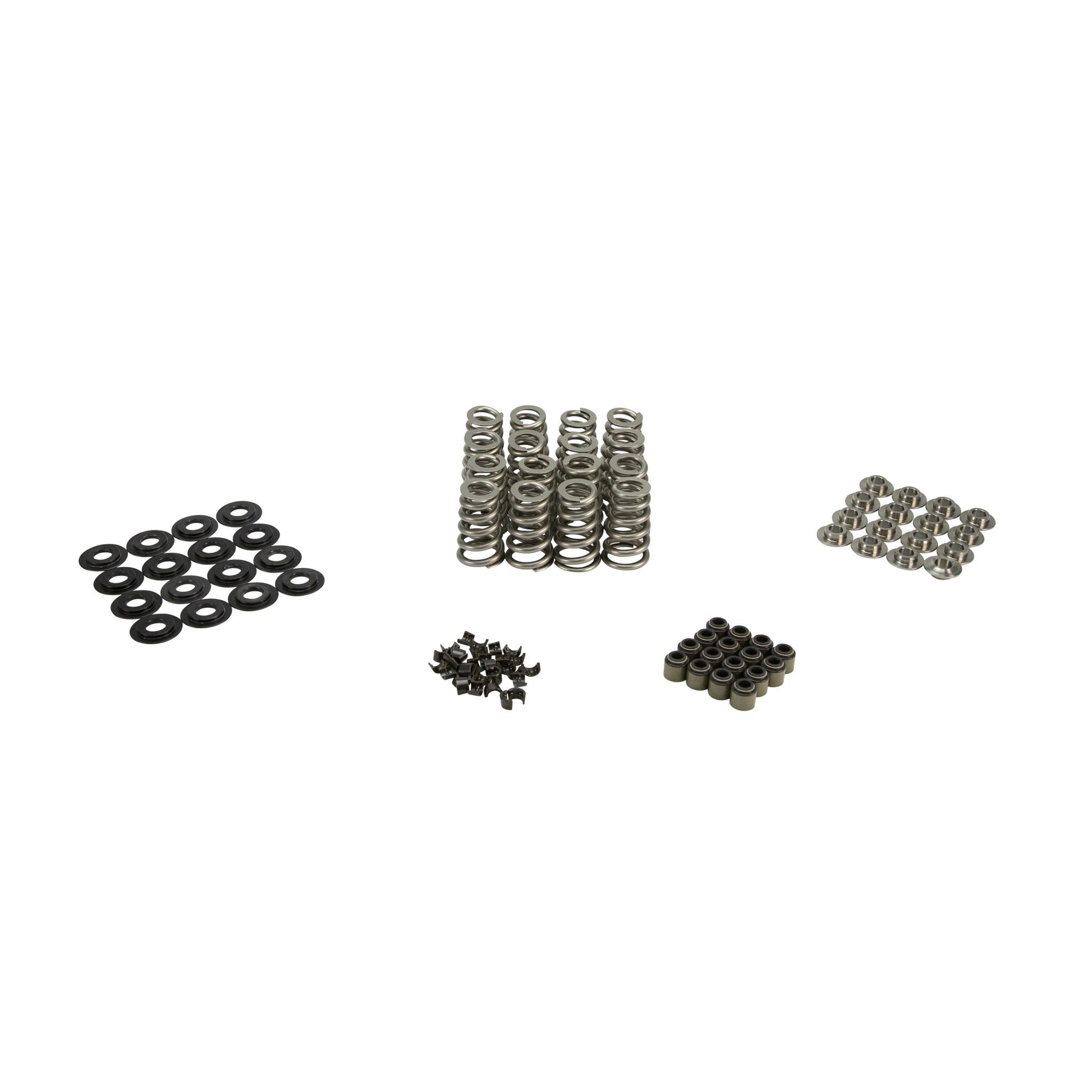

COMP Cams Conical Valve Spring Kit for GM L83/L86/LT1/LS7 w/ Titanium Retainers COMP-7230TI-KIT

Attributes:

• GTIN: 00036584395546
• Brand Name: COMP Cams
• Max Lift: 0.675
• Includes Shims?: No
• Spring Style: Conical
• Valve Spring Series: Conical
• Damper: No
• Retainer Material: Titanium
• Includes Retainers?: Yes
• Spring Seat Type: Steel
• Included Seats: 4680-16
• Includes Seats?: Yes
• Spring Rate: 518.5
• Number of Springs: 1
• Open Load: 495
• Seat Pressure: 145
• Installed Height: 1.9
• Coil Bind Height: 1.175
• ID Small End: 0.661
• ID Big End: 0.932
• Small End Outside Diameter: 1.061
• Big End Outside Diameter: 1.332
• Free Length: 2.193

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 12 x 3 x 6 inches
• Weight: 4.1 lb
