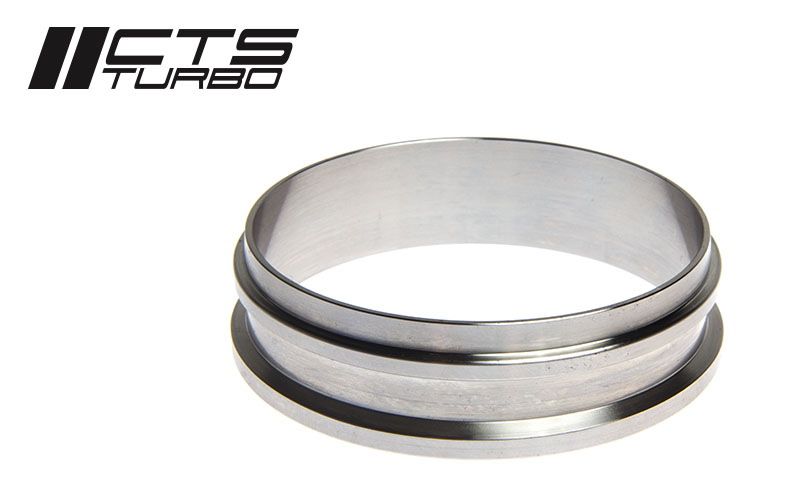

CTS Turbo V-band turbine discharge flange - 3 5/8" CTS-074-3036

CTS Turbo 3-5/8" Turbine Discharge Flange for Precision T4 V-band housings

• V-Band style flange provides a uniform, positive seal
• Manufactured from stainless steel
• Fits most T4 based turbochargers with a 3 5/8" turbine discharge
• Allows for use with either a 3.0" or 3.5" downpipe

Specs:
Weld Side Outer Diameter: 91mm
Weld Side Inner Diameter: 81mm

Flange Side Outer Diameter: 92mm
Flange Side Inner Diameter: 77mm
