    D & B-Series OBD1 Tucked Engine Harness Kit w/ Subharness | 96-98 Civic EK

    D & B-Series OBD1 Tucked Engine Harness Kit w/ Subharness | 96-98 Civic EK

    Carrot Top Tuning

    Part # EK-OBD1-ENG-B-OBD2A-SUB-OBD1
    UPC # EK-OBD1-ENG-B-OBD2A-SUB-OBD1

    $394.95 USD
    $449.00 USD $394.95 USD
    Sale Sold out
    Shipping calculated at checkout.

    Product Description

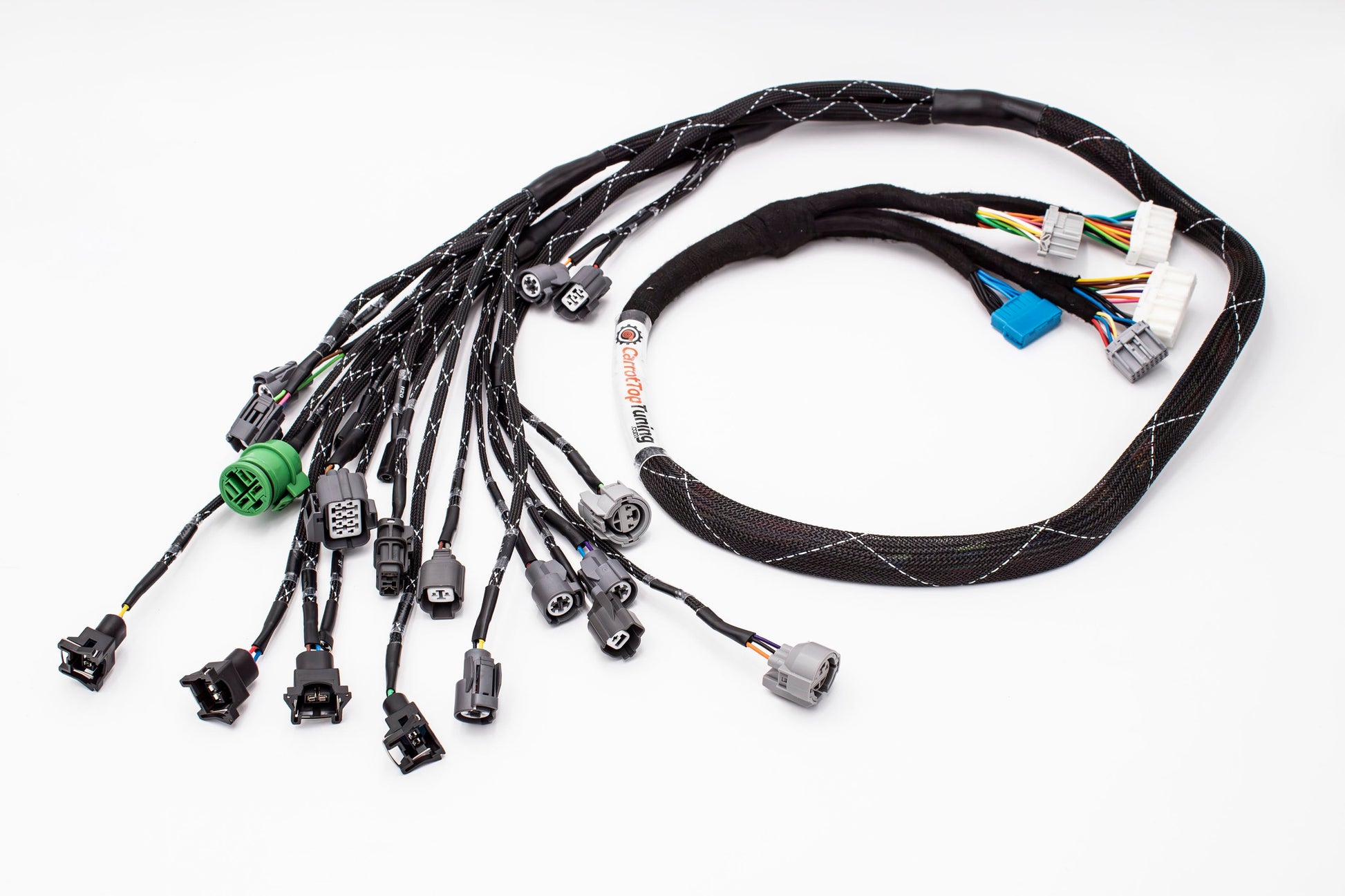

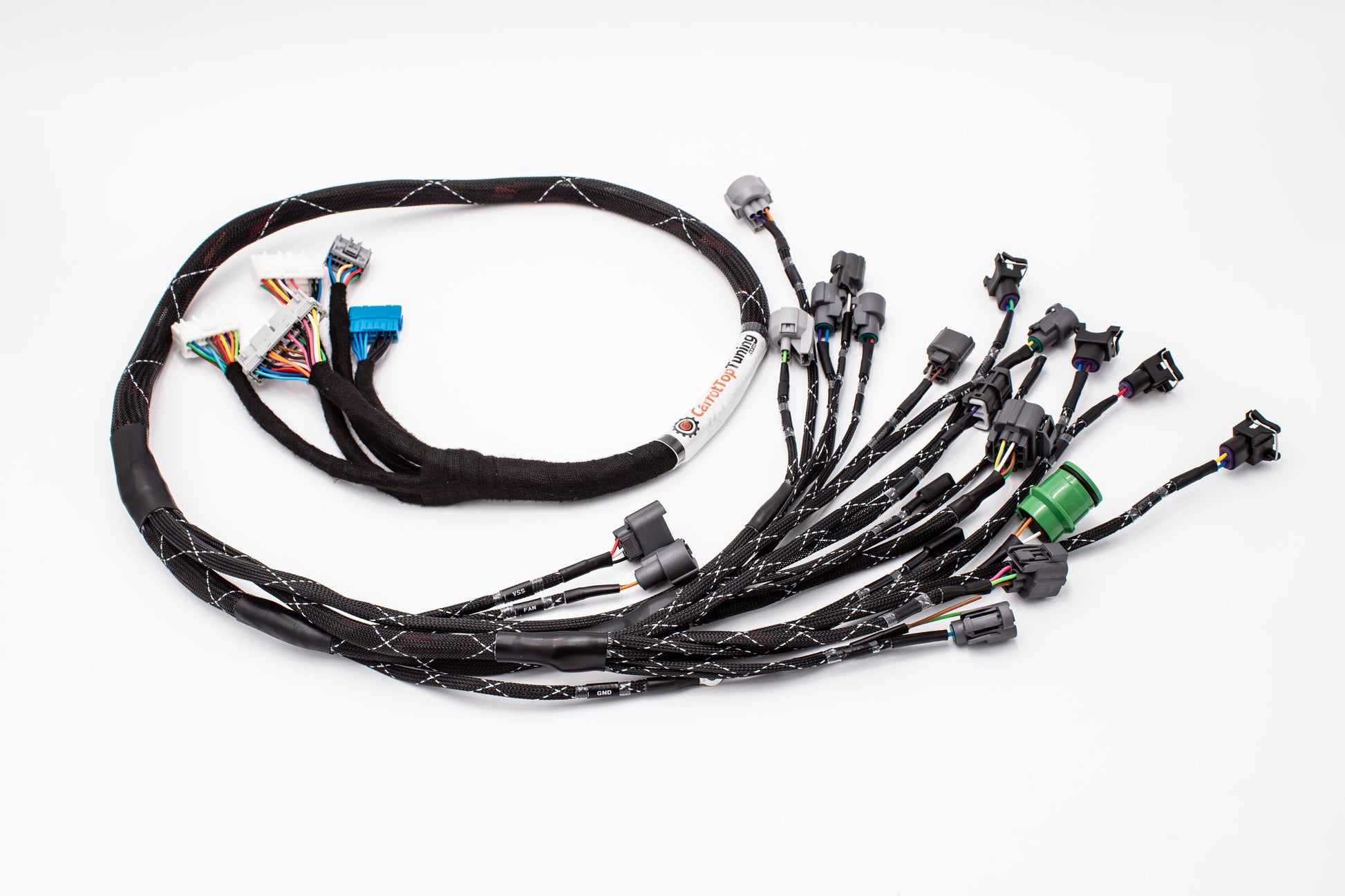

    Our engine harness is made with new high quality connectors, and automotive grade wiring. Carefully designed to run hidden in the engine bay to enhance the aesthetic "wire-tuck" look. The installation is less complex than our competitors, 95% plug n play. Compatible Honda Civic 99-01 with D & B Series engines.

    This harness is made with OBD1 (92-95) ECU Connectors. An ECU adapter can be used for OBD2 ECU's if needed however our harness does not support USDM OBD2 ECU's. Aftermarket ECU's using OBD2 plugs and NON-US OBD2 ECU's are compatible (except H22 and GSR stock units).

    Each harness will come with a custom sub-harness depending on which chassis you order from our site. If you ever decide to change the chassis you would only require a new sub-harness. The engine harness will drop in to the new chassis without an issue.


    ***Note: Charge harness not included must be ran independently. Must run High Impedance injectors, is not compatible with a resistor box.

    This kit includes:

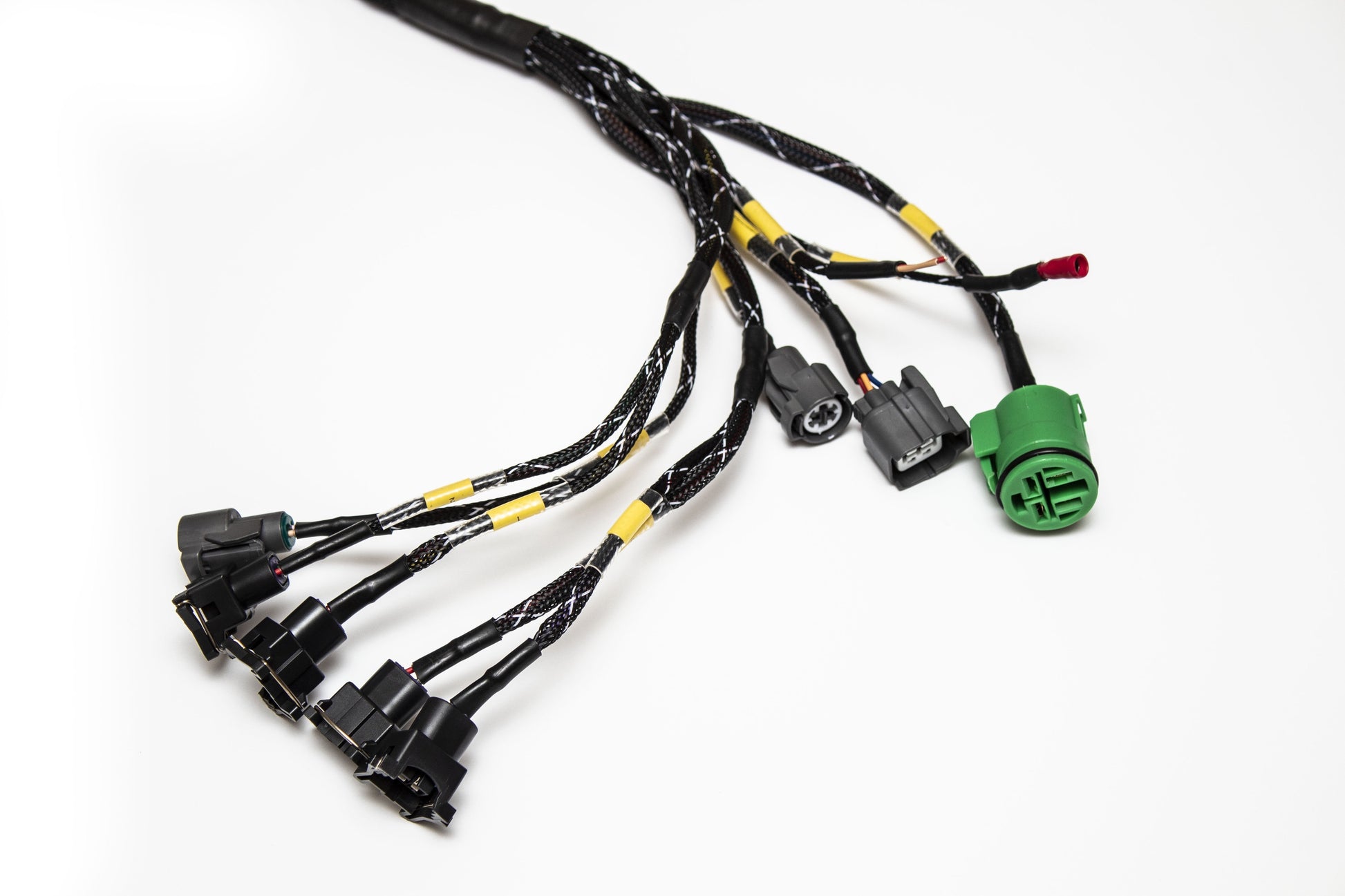

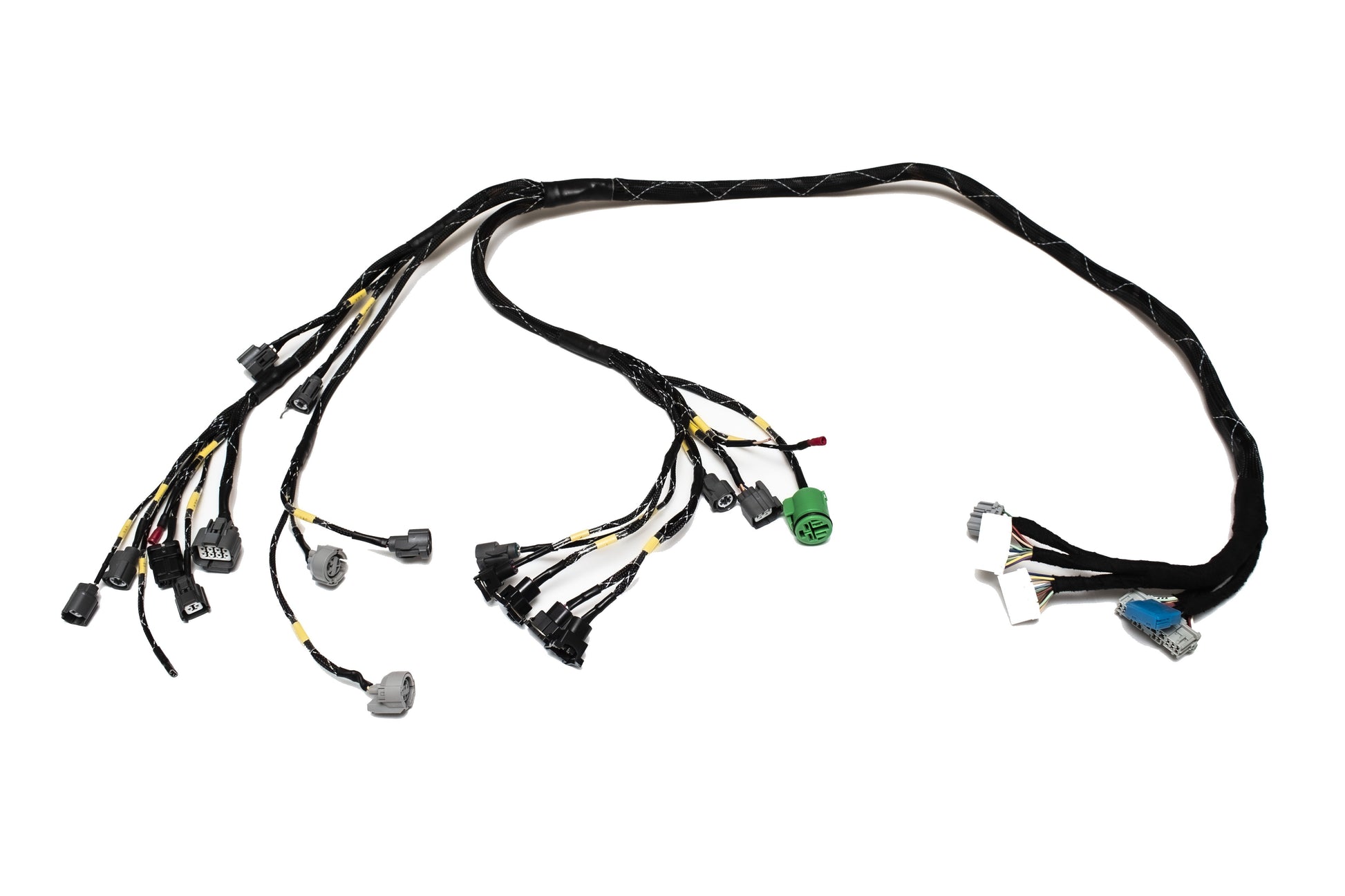

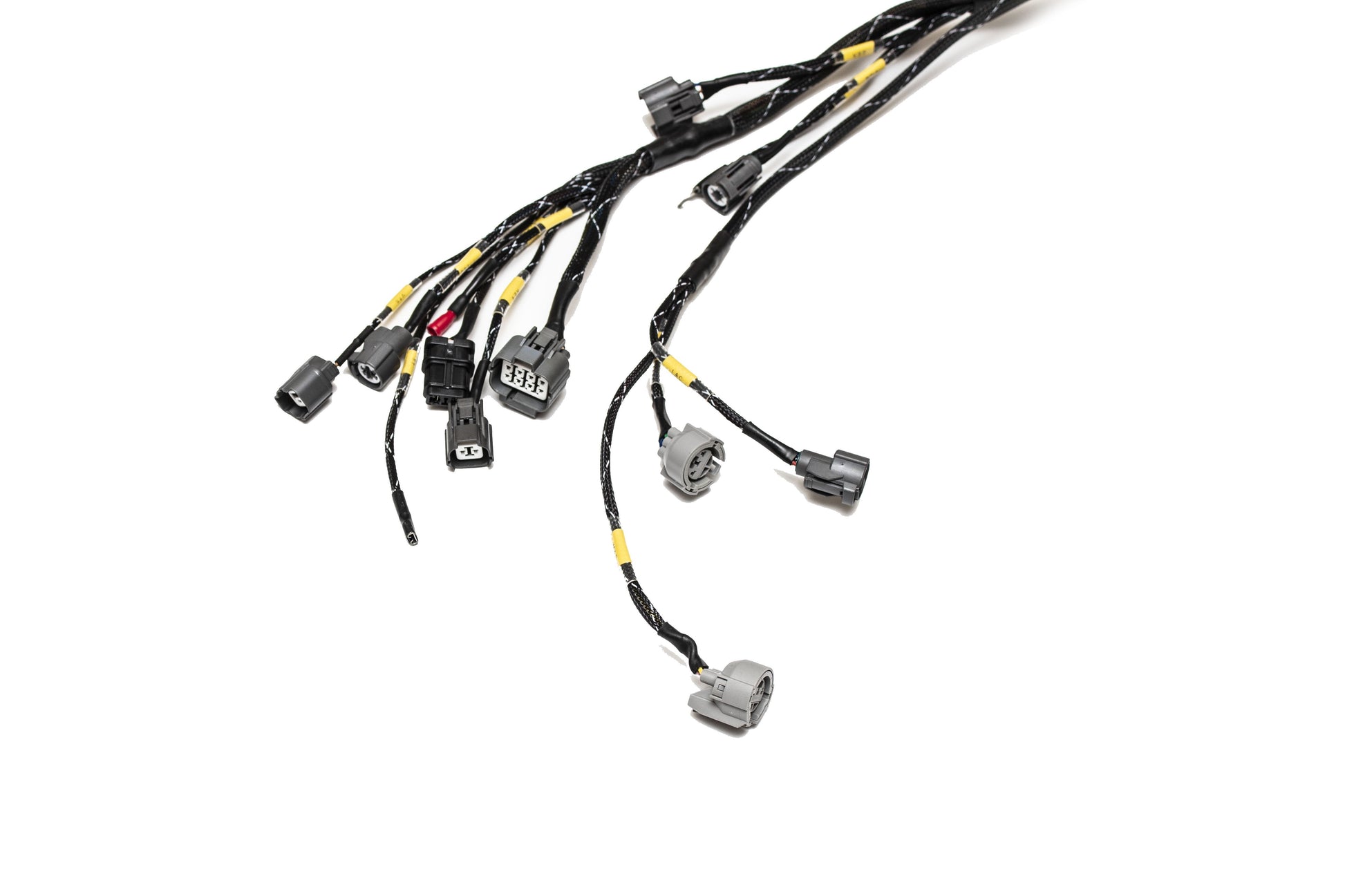

    1x Wire Tuck Engine Harness

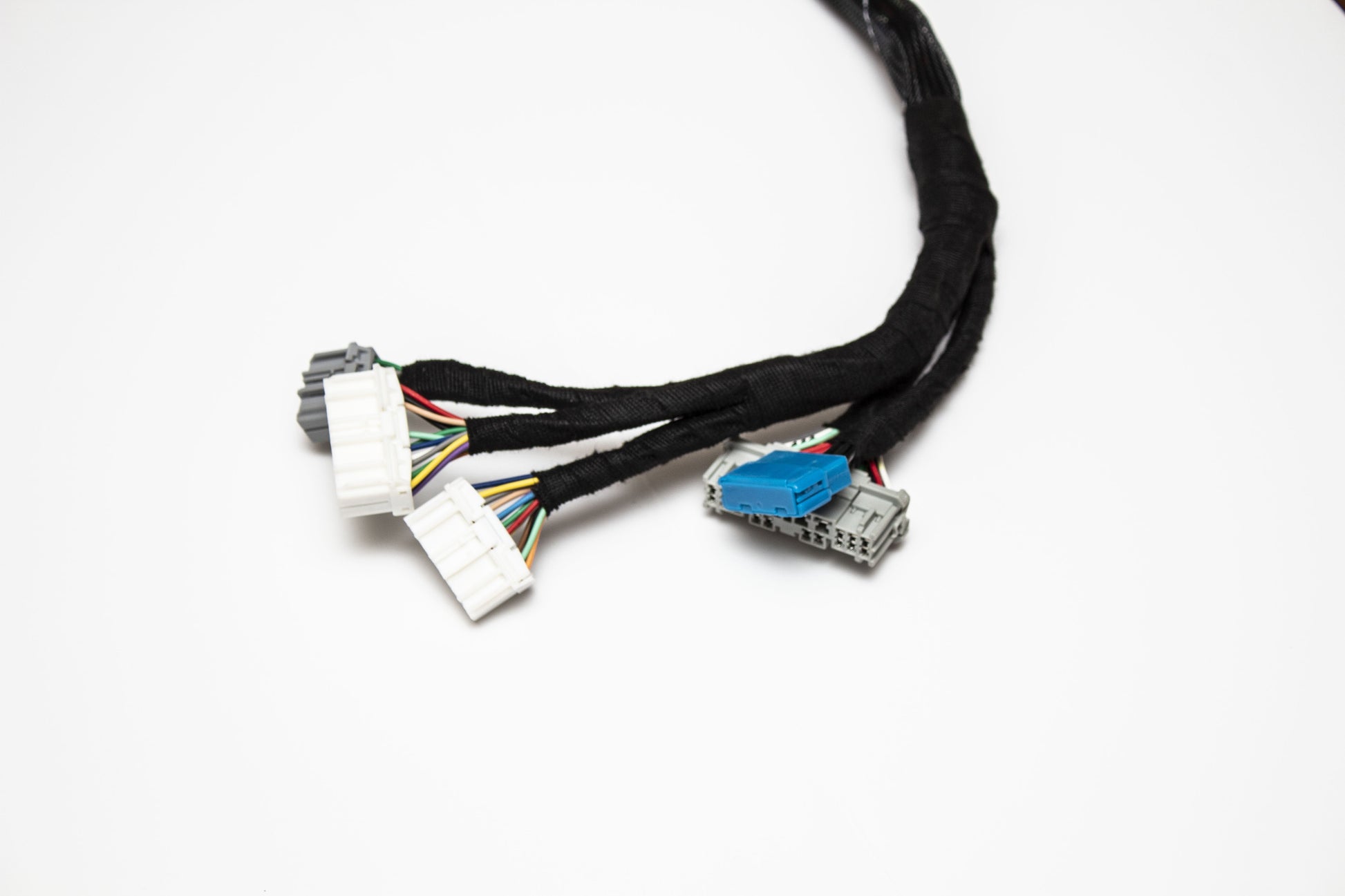

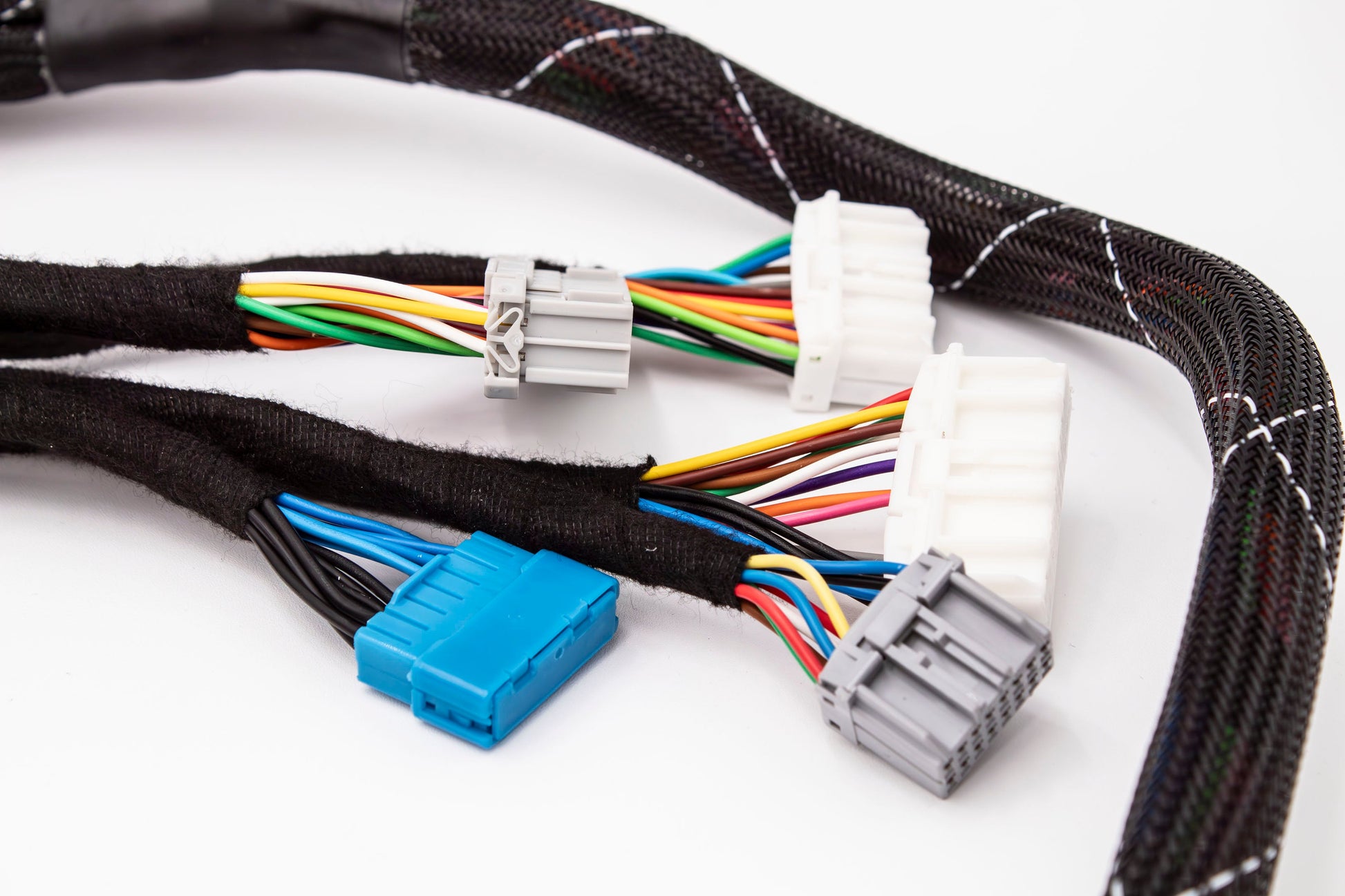

    1x Sub (Underdash) Harness

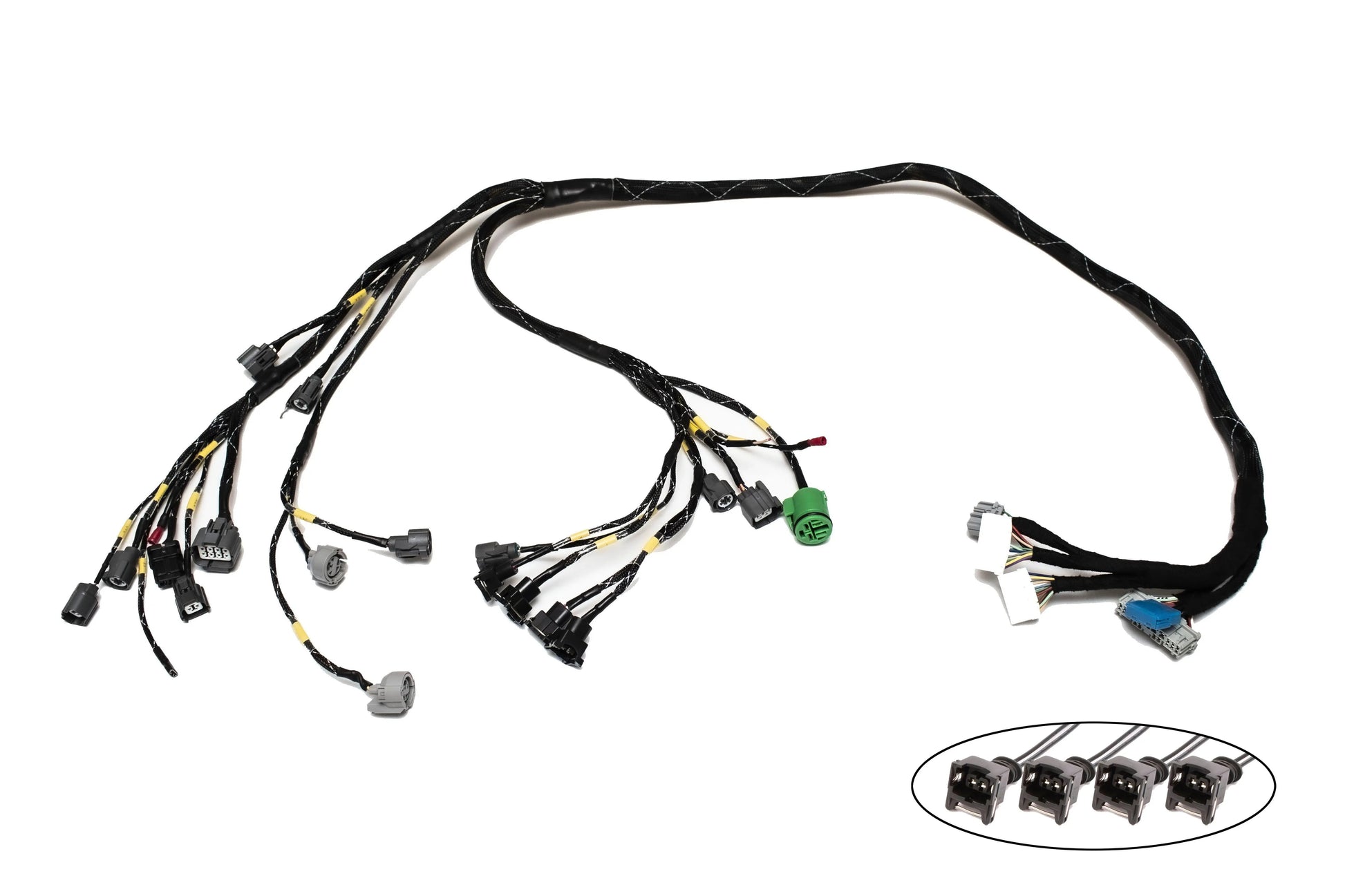

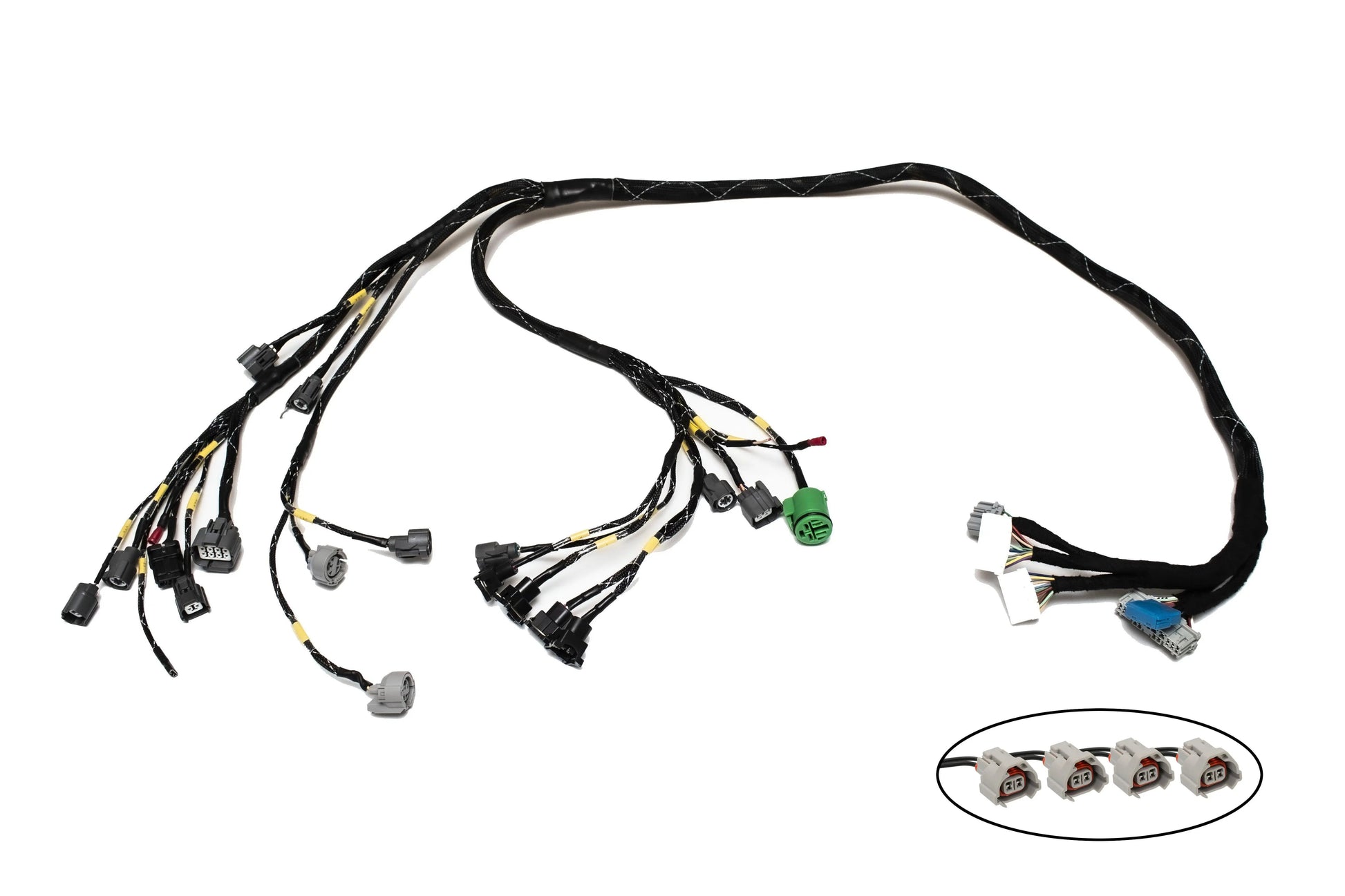

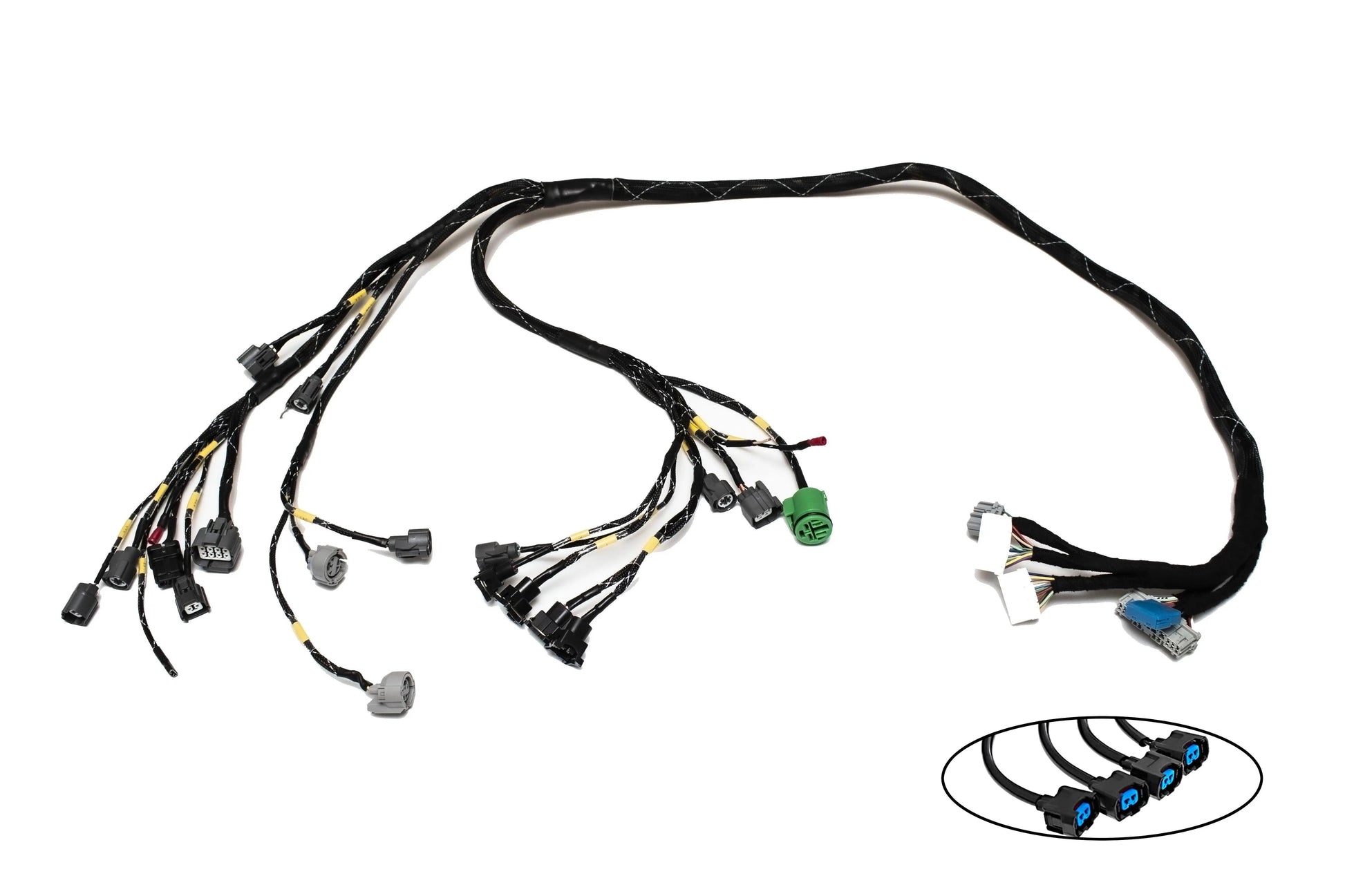

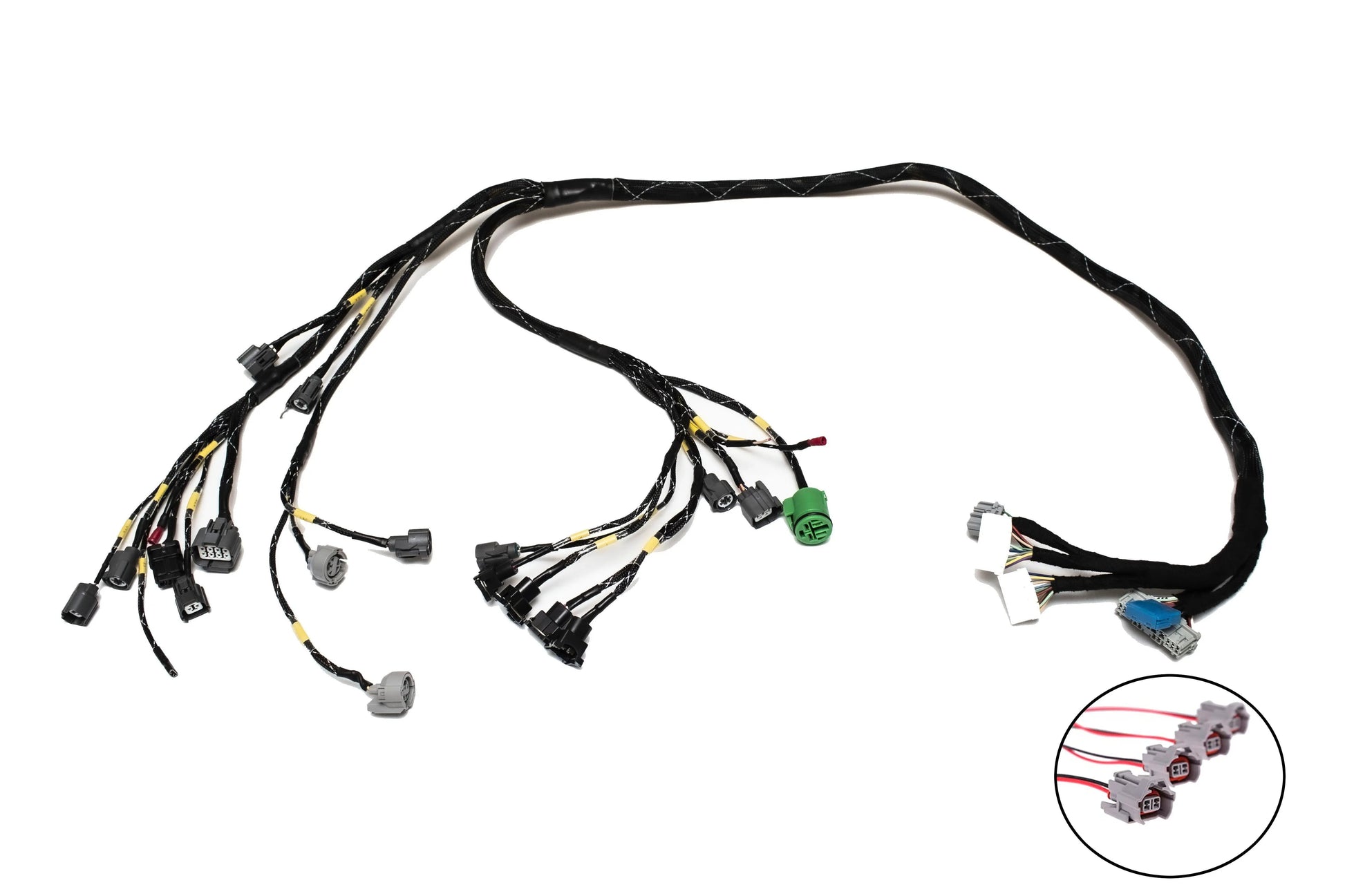

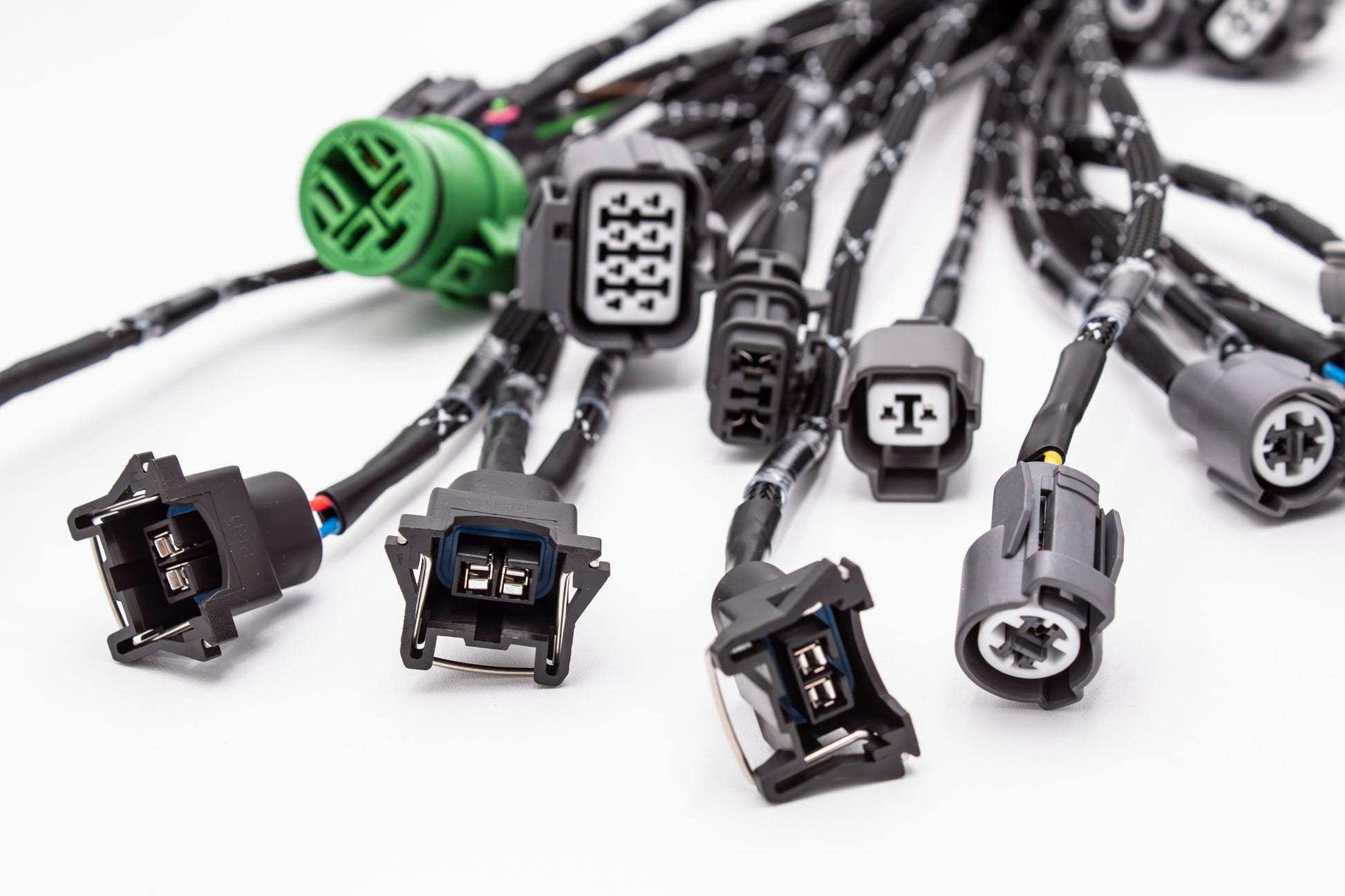

    Injector Connector: Select from Dropdown
    Alternator Connector: OBD1 Style
    Distributor: OBD1 Style

    Connector Label Abbreviations:

    FAN - Radiator Fan Switch
    VSS - Vehicle Speed Sensor (Trans)
    GND - Chassis Ground
    DIS -Distributor
    REV - Reverse Lights
    ECT -Engine Coolant Temp Sensor
    VTS - VTEC Solenoid
    H2O -Temp sender for Cluster (Coolant)
    ST -Starter Trigger
    1 - 4 -Injectors
    O2 - Oxygen Sensor
    ALT - Alternator
    KS - Knock Sensor
    OIL - Low Oil Pressure Warning
    IAT - Intake Temp. Sensor
    EXTRA - AUX WIRES (Can be pinned for Boost by Gear, etc.)
    TPS -Throttle Position Sensor
    IAC -Idle Air Control Valve
    MAP - Manifold Pressure Sensor

    Video Overview:

    Appreciate @5StarGarage for showing off the overview, and the install of our engine harness! Give him a follow!
