Datsun 240Z LS Engine Mounts

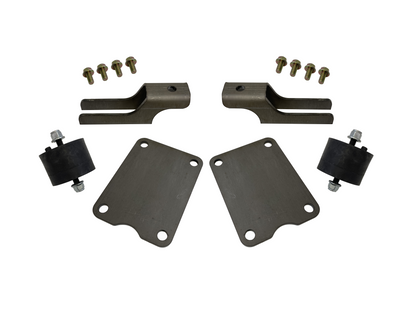

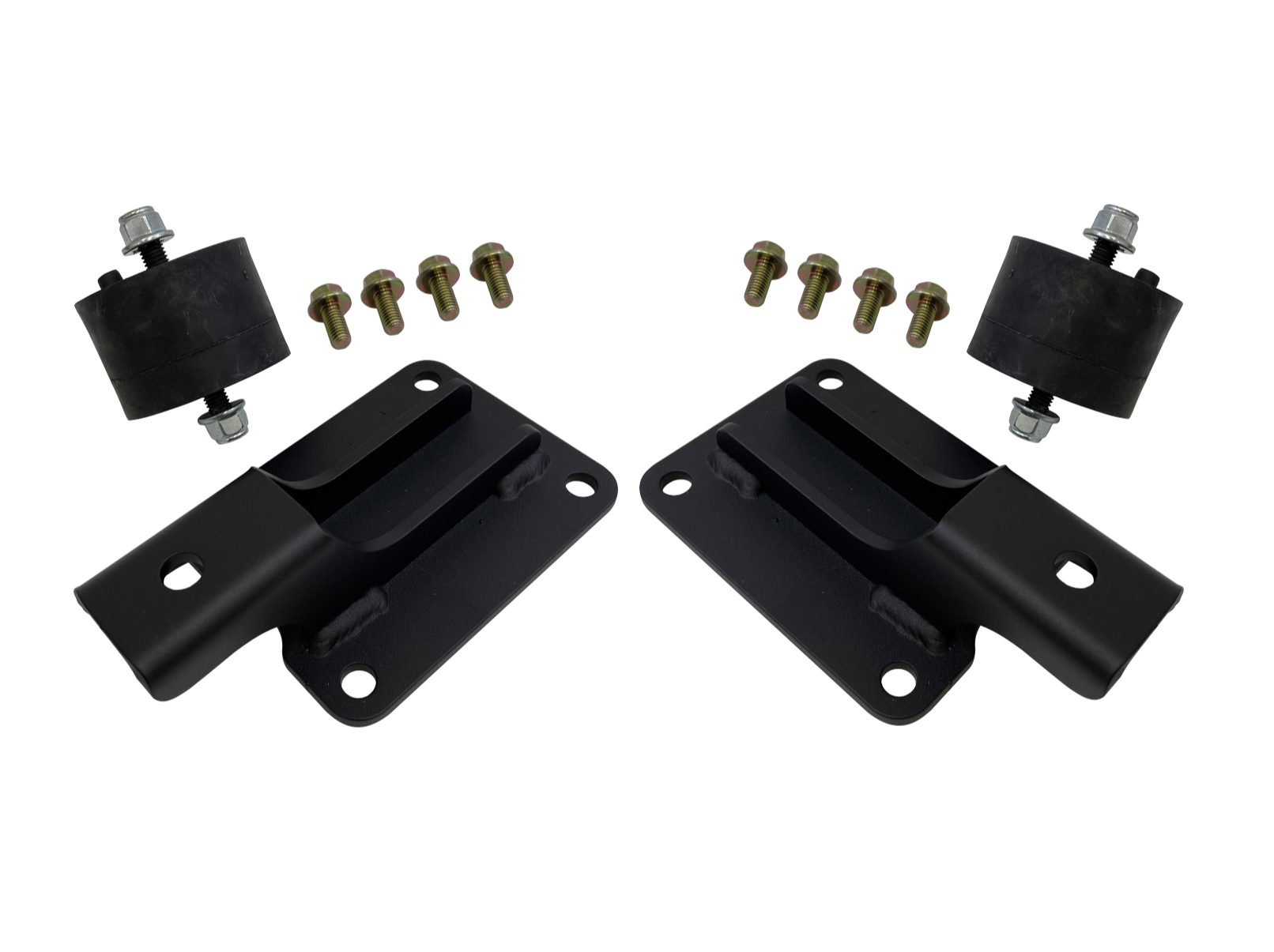

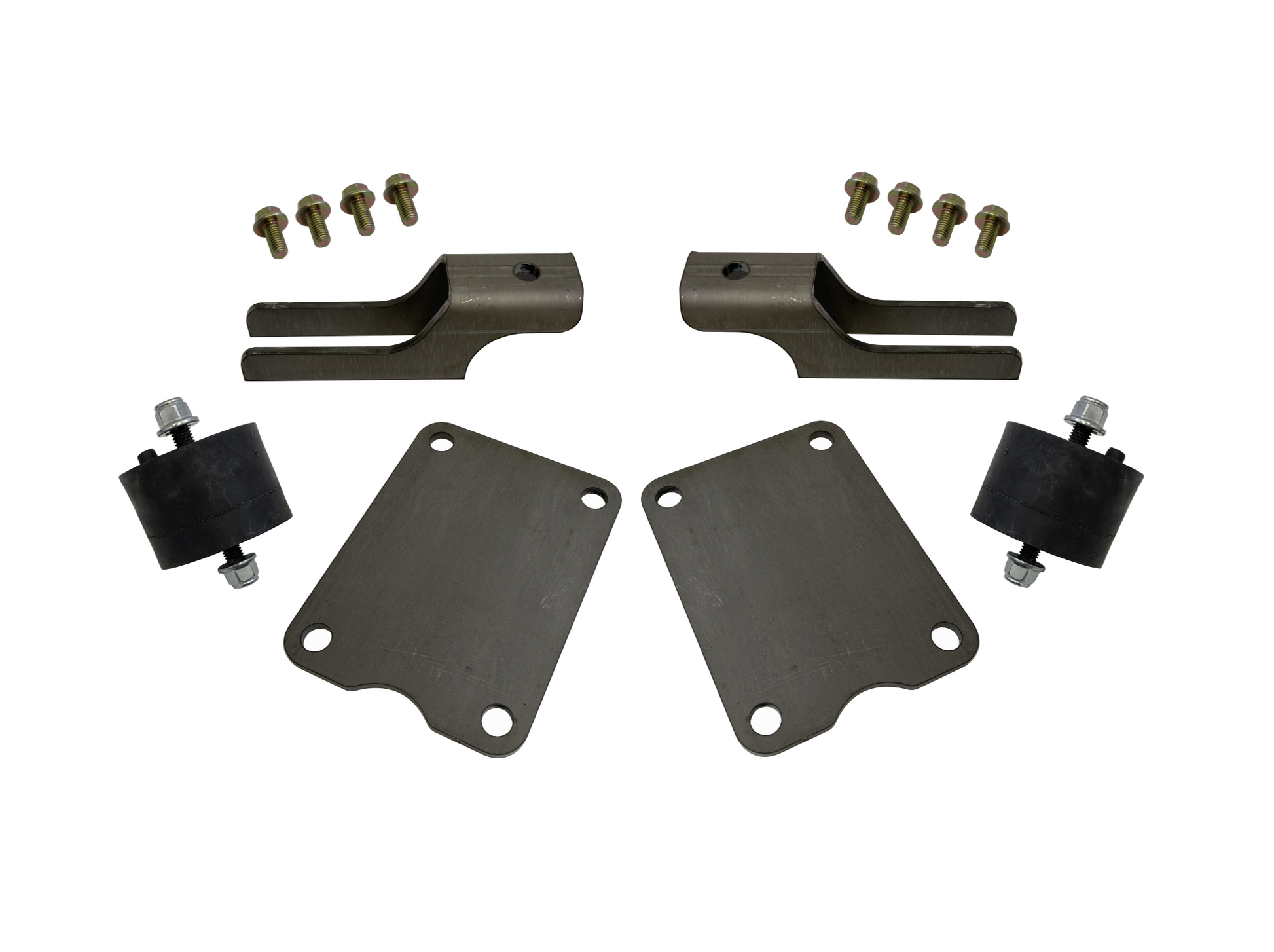

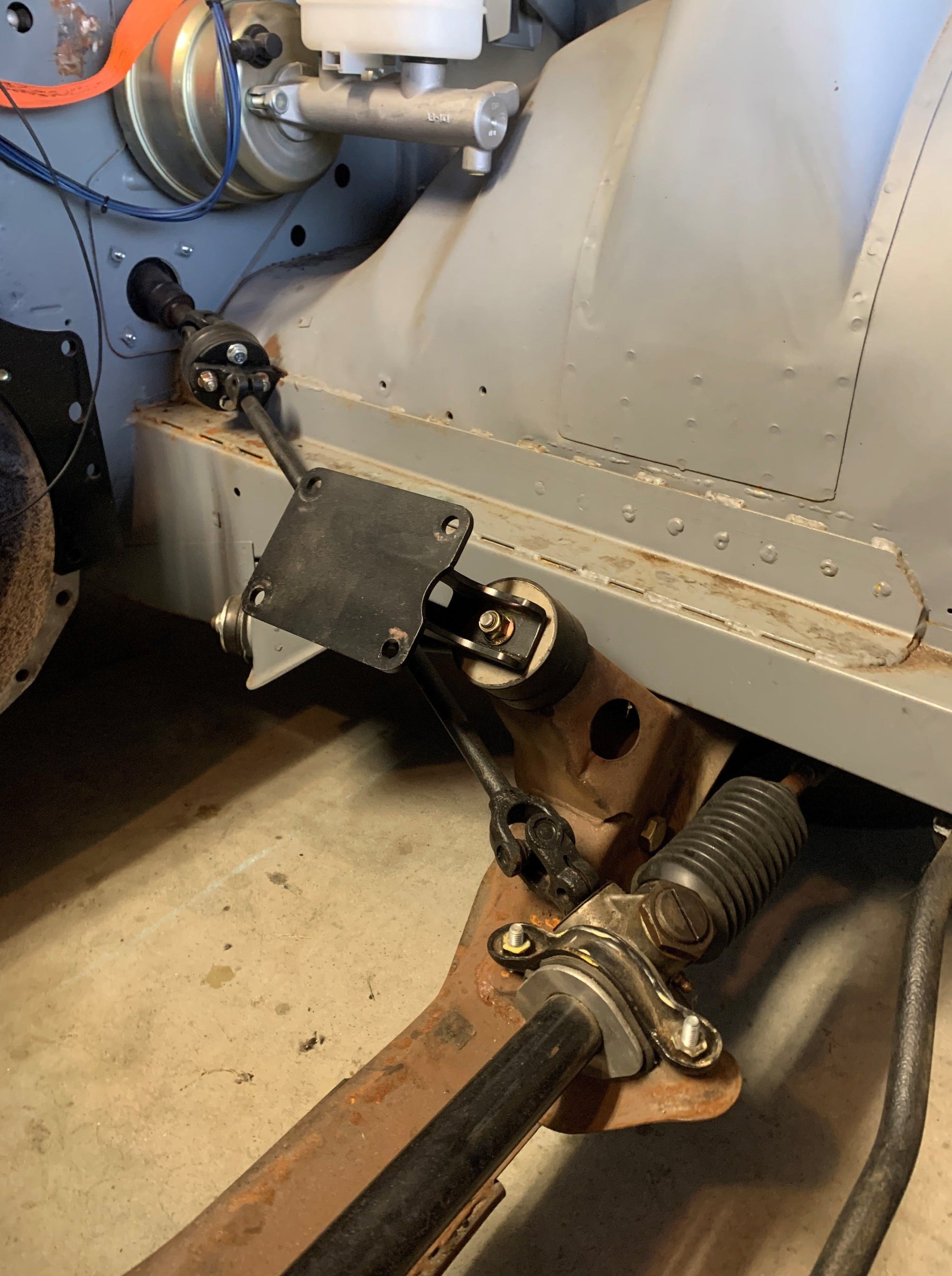

For mounting LS engines to your Datsun 240Z crossmember. This kit includes 3/16" thick CNC laser cut and bent HRPO steel brackets with OEM style rubber isolators. Buy this kit as a complete welded and powder coated assembly or as a builder kit and weld it yourself. This kit locates the engine approximately 4" from the firewall. Sold as a pair and includes all the required hardware.

Application:

Datsun 240Z

What's Included:

• Pair of Engine-Side Mounting Brackets
• Pair of OEM Style Rubber Isolators
• Associated Mounting Hardware


Fitment Notes:

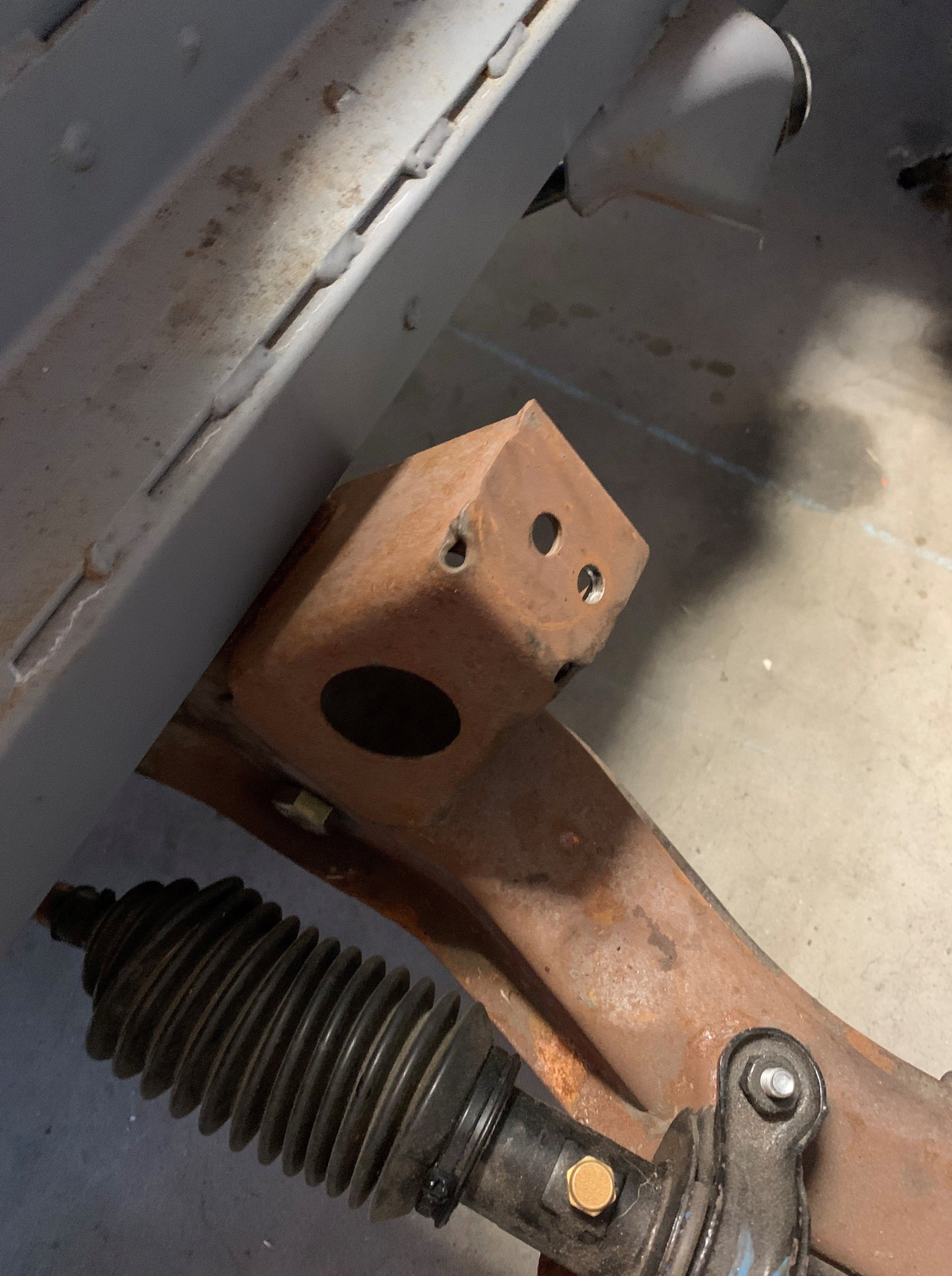

• Requires drilling 7/16" hole in the stock crossmember to fit the anti-rotation pin on the rubber isolators. We recommend using crayon or grease on the end of the pin to mark the drilling location.
• Requires F-body oil pan (1998-2002 Camaro)
• The isolators (included) are Anchor 9404, available at any auto store for a 1990 BMW 325 if you need a replacement in the future.
