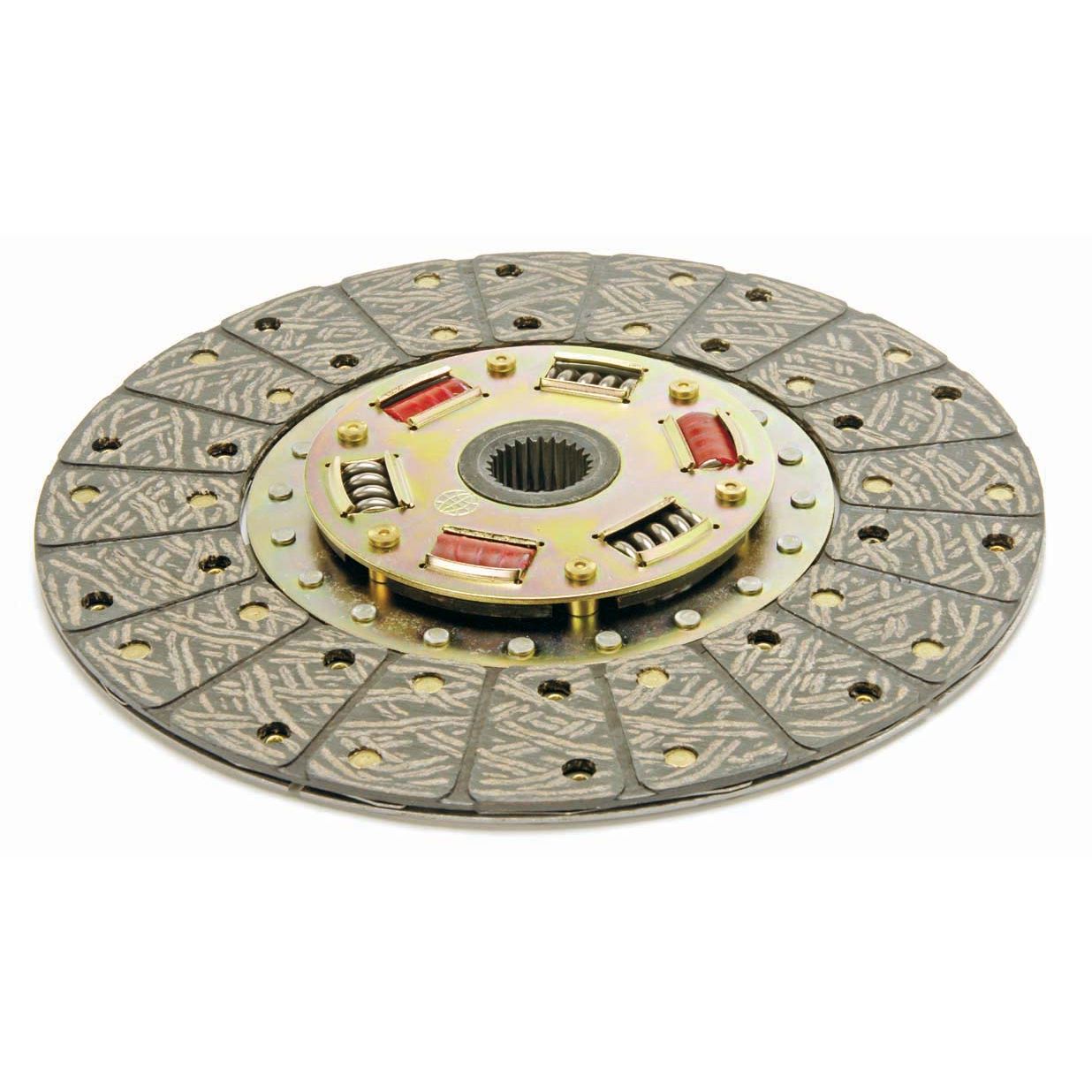

McLeod Disc: 500 Series:Ceramic/Organic Facing:12" X 1-1/8 X 26 Spline 260573

The 500 Series Is a great High Performance Disc In The Single Disc Platform. Suited For Both Street And Strip Duty, The 500 Series Will Give You Both The Smooth Engagement And Holding Power You Need To Get The Job Done. This Disc Has A Segmented Semi Metallic Ceramic Facing On the flywheel side and a full face orgainc on the pressure plate side for a smooth engagement. Mcleod Racing Offer Various Input Shaft Splines For All The Popular Vehicles In 9-11/16", 10.5",11" & 12" Disc Diameters.

• McLeod Racing offers various friction materials, disc diameters and inputshaft splines with superior components to cover multiple applications.

Attributes:

• GTIN: 00887753018076
• Brand Name: McLeod
• Disc Diameter: 12In.
• Spline: 1-3/8 x 10
• Hub Style: Sprung
• Material Flywheel Side: Semi Metallic-Ceramic
• Material Pressure Plate Side: Organic
• Torque Rating: 650 Ft. Lbs.
• Reverse Hub: No
• Quantity: Sold Individually

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 13 x 2 inches
• Weight: 5 lb
