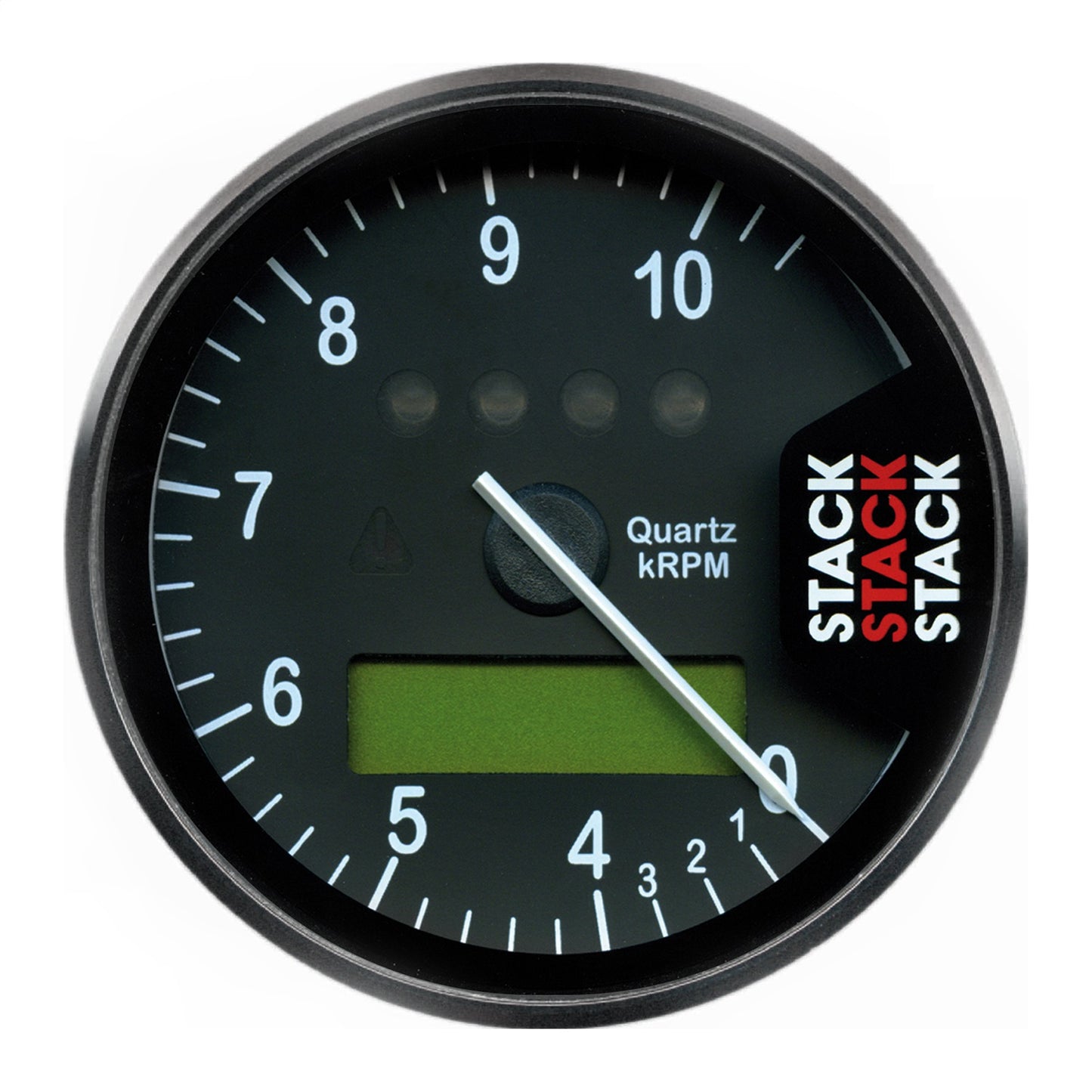

Stack DISPLAY TACHOMETER BLACK 0-4-10.5K RPM ST700SR-J

The ST700 combines the most critical facets of vaunted Stack Race Display into a tidy package, built with the same craftsmanship and attention to detail as the legendary original. With technology derived from decades of Formula experience, the Stack ST700 provides a comprehensive monitoring solution, displaying engine RPM, speed, system voltage, odometer, tripmeter, and acceleration timers (1/4 Mile and 0-60, and user selectable rolling speeds) as standard. An in-built sequential shift life and the ability to enable lap timing and two configurable inputs for either temperature or pressure via optional accessories gives the driver a remarkable amount of information in ever the tightest quarters.

• 4 pattern Sequential Shift light - Select from single, sequential, sequential bar, and sequential blink patterns.
• ntelligent alarms are provided on all monitored parameters. Alarm levels are adjustable to suit individual requirements.
• The ST700 system features two user configurable analogue channels.
• Each channel can be set up for Water Temperature, Oil Temperature, Air Temperature, Axle Temperature, Gear Temperature, Oil Pressure, Fuel pressure or Boost pressure.
• Sensors must be ordered separately, choose between standard and solid state sensor options.
• These new optional sensors are small, lightweight, provide high accuracy and offer exceptionally reliability.
• Peak Value Tell-Tales on all parameters
• Supplied with mounting bracket, switch kit, separate professional wiring
• Looms and manual included
• Adjustable White LED back-lighting level
• Fully sealed against water and dust
• Speed, Lap & Solit Times (with optional receiver), Battery Voltage, Odometer and Trip Meter
• Acceleration Timer (1/4 Mile, 0-60, user programmable rolling speeds)

Attributes:

• GTIN: 00046074155888
• Brand Name: Stack
• Add-On: ST918049;ST546;ST769;ST747;ST745K;ST764K
• Product Type: Dash Display

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6.5 x 10.25 x 4.5 inches
• Weight: 2 lb
