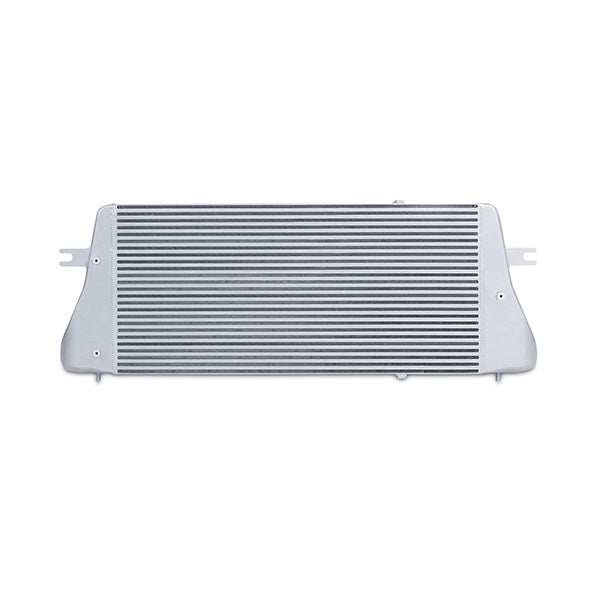

Mishimoto Dodge 5.9L Cummins Intercooler MMINT-RAM-94SL

Mishimoto has expanded the Cummins performance parts line to include a performance intercooler for the 1994-2002 Dodge 5.9L Cummins. High intake and exhaust gas temperatures can reduce performance and potentially cause engine damage. Protect your 12v or 24v by upgrading to the Mishimoto 5.9L Cummins intercooler. This intercooler is precision engineered with durable cast aluminum end tanks and an efficient bar-and-plate core, all designed for improved airflow, lower intake temperatures, and improved EGTs. The Mishimoto Cummins intercooler will support substantial boost pressure in your stock or highly modified truck. The Mishimoto Cummins intercooler features a 47-percent increase in core volume and is 50-percent thicker compared to the factory cooler. This performance design results in a proven 25-percent drop in AITs compared to the factory cooler. Offered in Sleek Silver or Stealth Black, the Mishimoto 5.9L Cummins intercooler is designed to work with our 5.9L Cummins Intercooler Pipe and Boot Kit. Like all of our Cummins performance parts, this kit includes the Mishimoto Lifetime Warranty.in

• Direct fit for 12v and 24v 1994-2002 Dodge 5.9L Cummins
• Reduces IATs by 25%
• Intercooler features all-aluminum cast end tanks
• Intercooler has 47% increase in core volume
• 3" core is 50% thicker than factory
• Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
• Reduces turbo stress and extends life
• Intercooler available in Sleek Silver and Stealth Black
• Fits with Mishimoto Dodge 5.9L Cummins Performance Aluminum Radiator
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354020113
• Brand Name: Mishimoto
• TechSpec Applications: 1994-2002 Dodge Ram 2500 w/ 5.9L Cummins Engine (12V and 24V)--1994-2002 Dodge Ram 3500 w/ 5.9L Cummins Engine (12V and 24V)
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 47.2
• TechSpec Overall Height (in): 17.5
• TechSpec Overall Width (in): 10.9
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): N/A
• TechSpec Core Length (in): 35.91
• TechSpec Core Height (in): 16.65
• TechSpec Inlet (in): 3.66
• TechSpec Outlet (in): 3.66
• TechSpec Weight (lbs): N/A
• TechSpec Note: Requires slight bending of truck body for installation.----Installation Torque Specs--27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Includes: (1) M4 x 0.7 x 12 Button Head Bolt --(1) Mishimoto Intercooler--(2) AC Condenser Brackets--(7) M6 x 1.0 x 16 Bolts--(4) M6 x 1.0 x 10 Bolts and Washers--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for 12v and 24v 1994-2002 Dodge 5.9L Cummins
• SellingPoint02: Reduces IATs by 25-percent
• SellingPoint03: Intercooler features all-aluminum cast end tanks
• SellingPoint04: Intercooler has 47-percent increase in core volume
• SellingPoint05: 3-in core is 50-percent thicker than factory
• SellingPoint06: Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
• SellingPoint07: Reduces turbo stress and extends life
• SellingPoint08: Intercooler available in Sleek Silver and Stealth Black
• SellingPoint09: Fits with Mishimoto Dodge 5.9L Cummins Performance Aluminum Radiator
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.3 x 12 x 19 inches
• Weight: 66 lb
