Mishimoto Dodge 6.7L Cummins Intercooler Kit, 2013+ MMINT-RAM-13KBK

Mishimoto has released a performance intercooler kit for the 2013+ Dodge 6.7L Cummins. This kit includes everything you need to improve airflow, substantially decrease charge-air temperatures and support your truck at any power level. The first key component is the Mishimoto 6.7L Cummins intercooler piping kit. Our engineers have maximized airflow by eliminating restrictive bends, allowing for smooth and unimpeded airflow. The piping is constructed of mandrel-bent 3in aluminum for smooth flow and rugged durability. Also included are Mishimoto silicone boots with DuraCore technology and Mishimoto Constant-Tension T-Bolt Clamps for accurate and consistent holding force. Mishimoto DuraCore technology comprises the innermost layer of all Mishimoto diesel silicone boots. Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of your boots and prevents leaks or blowouts. This package also includes the Mishimoto 6.7L Cummins intercooler. Extremely durable cast aluminum end tanks and a bar-and-plate core provide cool, dense air to your engine, with the reliability you need. With a 76.65-percent increase in external fin surface area, and a 37.8-percent larger core, this intercooler is proven to reduce intake air temps by 12.5-percent. All the components in this kit are engineered to last, just like your truck. Offered with either a Sleek Silver or Stealth Black core, the Mishimoto 6.7L Cummins intercooler kit, like all our Dodge Ram performance parts, is protected by the Mishimoto Lifetime Warranty. Whether your Cummins is stock or modified, trust Mishimoto and our line of Dodge Ram performance parts to keep your Dodge cool.

• Direct fit for the 2013+ 6.7L Cummins
• Includes hot-side and cold-side intercooler pipes and boots
• Lowers AITs by 12.5-percent
• 76.65-percent increase in external fin surface area
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354033489
• Brand Name: Mishimoto
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2013-2018 Dodge Ram 6.7L Cummins
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 33
• TechSpec Overall Height (in): 12.5
• TechSpec Overall Width (in): 10
• TechSpec Core Type: N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Length (in): 25.7
• TechSpec Core Height (in): 12.5
• TechSpec Inlet (in): 3
• TechSpec Outlet (in): 3
• TechSpec Weight (lbs): N/A
• TechSpec Note: Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.

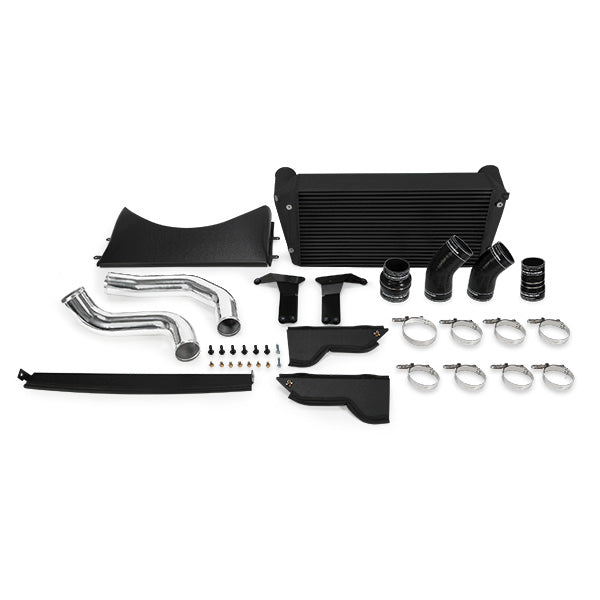

• TechSpec Includes: (1) Mishimoto Intercooler--(3) Front Air Diversion Panels--(1) Replacement Lower Fan Shroud--(2) Mounting Brackets w/ Rubber Isolators--(2) Aluminum Pipes--(4) Silicone Boots with Duracore Technology--(8) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2013-2018 6.7L Cummins
• SellingPoint02: Includes hot-side and cold-side intercooler pipes and boots
• SellingPoint03: Lowers AITs by 12.5-percent
• SellingPoint04: 3-in mandrel-bent polished aluminum piping
• SellingPoint05: Bar-and-plate construction with cast aluminum end tanks
• SellingPoint06: 76.65-percent increase in external fin surface area
• SellingPoint07: 37.8-percent larger core volume than factory
• SellingPoint08: Includes new air ducts to divert air into the core and new lower fan shroud section
• SellingPoint09: End tanks strategically designed for optimal airflow
• SellingPoint10: Internal fins designed for maximum heat transfer with minimal pressure drop
• SellingPoint11: Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
• SellingPoint12: Sleek Silver or Stealth Black intercooler options available
• SellingPoint13: Mishimoto Lifetime Warranty

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 36 x 20 x 16 inches
• Weight: 69 lb
