Mishimoto Dodge Ram 5.9L/6.7L Cummins Transmission Cooler, 2003-2009 PRE-SALE MMTC-RAM-03SL

no more replacing the entire cooler if the thermostat fails. Owners in cold climates can still enjoy the fast warm-up times that the thermostat provides, while owners in hot climates can choose to bypass the thermostat by replacing it with the supplied stainless-steel bypass plug. To make this cooler even easier to install and service, Mishimoto'saves you the hassle of removing seized fittings. The provided CNC-machined, stainless steel hose barb fittings let you cut to the chase, literally. These fittings and the supplied transmission cooler hose allow you to remove the quick-disconnect fittings and connect the stock soft-line to the Mishimoto cooler. Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty

• Fits all 2003?2009 Dodge Ram 5.9L and 6.7L Cummins
• 212-percent Increase in core volume and 244-percent increase in fluid capacity
• Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates
• Stacked-plate design for tough and reliable cooling
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00811580033513
• Brand Name: Mishimoto
• SellingPoint06: Eliminates corrosion-prone quick-disconnect fittings
• SellingPoint07: Available -8ORB to -8AN adapters allow the use of AN transmission fluid lines. (2 required)
• SellingPoint08: Patent numberD912,701
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Rows: 48
• TechSpec Core Construction: N/A
• TechSpec Core Length (in): 26
• TechSpec Core Height (in): 10.94
• TechSpec Core Thickness (in): 0.87
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Installation Notes: N/A
• TechSpec Caution: N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Inlet: N/A
• TechSpec Outlet: N/A

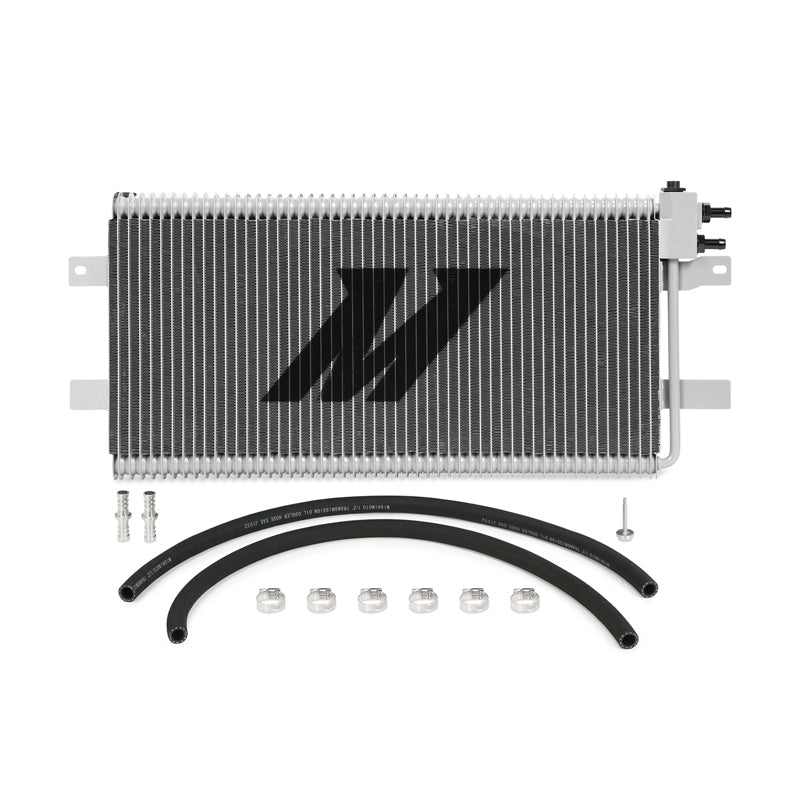

• TechSpec Includes: Mishimoto Stacked-Plate Transmission Cooler--High-Pressure Transmission Cooler Lines--Removable Thermostat--Removable Thermostat Bypass--CNC-Machined Stainless Steel Barbed Fittings--CNC-Machined Aluminum 3/4-in-16 ORB to Hose Barb Fittings--Worm Gear Clamps--Mishimoto Lifetime Warranty
• TechSpec Applications: Applicable with 47RE, 48RE, and 68RFE Transmissions----Dodge Ram 2500 I6 (5.9L) 2003-2007--Dodge Ram 2500 I6 (6.7L) 2007-2009--Dodge Ram 3500 I6 (5.9L) 2003-2007--Dodge Ram 3500 I6 (6.7L) 2007-2009--Dodge Ram 4500 I6 (6.7L) 2008-2009--Dodge Ram 5500 I6 (6.7L) 2008-2009
• TechSpec Fluid Capacity (qts): N/A
• TechSpec Note: Patent #D912701--------This kit requires cutting of the stock transmission cooler lines to remove the quick-disconnect fittings. Mishimoto provides CNC-machined stainless steel hose barb fittings to splice the supplied transmission cooler line with the stock soft-lblines. Please see installation instructions for more details.
• SellingPoint01: Fits all 2003-2009 Dodge Ram 5.9L and 6.7L Cummins
• SellingPoint02: 212-percent Increase in core volume
• SellingPoint03: 244-percent Increase in fluid capacity
• SellingPoint04: Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates
• SellingPoint05: Stacked-plate design for tough and reliable cooling

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 33 x 5 x 15 inches
• Weight: 8.5 lb
