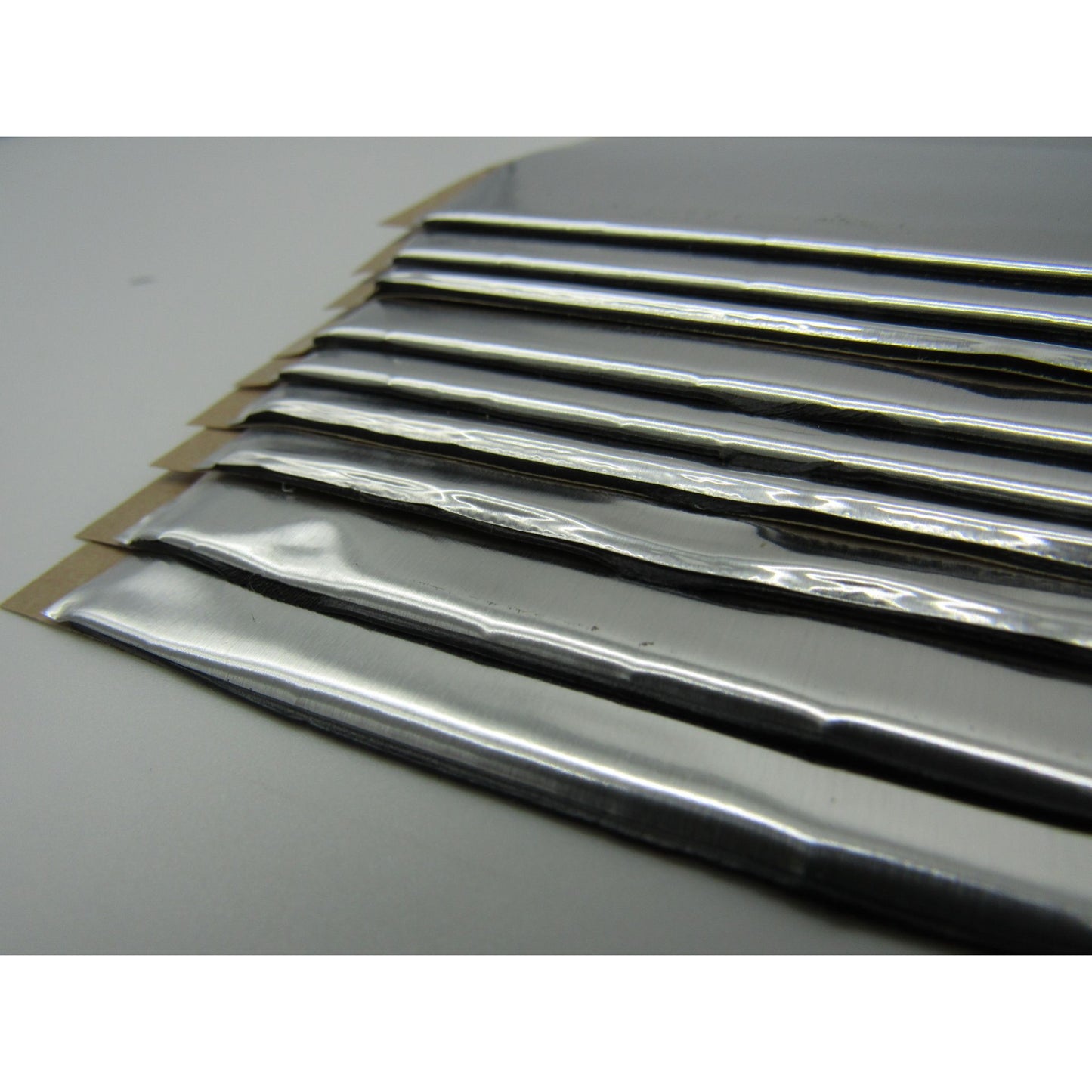

Hushmat Door Kit - Silver Foil with Self-Adhesive Butyl-10 Sheets 12inx12in ea 10 sq ft 10201

• GTIN: 00881101102011
• Brand Name: Hushmat
• Cold Flexibility: Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion
• Color: Polymer - Black; Backing - Silver
• Flammability: Tested per FMVSS 302, HushMat Ultra is self-extinguishing and meets all aspects of the standard
• Hardness: 6.5 - 9.0mm ?ASTM D-5
• Peel Strength: Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported.
• R-Value: 7
• Safety: HushMat Ultra is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product.
• Shelf Life: At least 6 months when stored at 40 degrees C or less
• Specific Gravity: 1.47 (approx. 0.47 pounds per square foot)
• Temperature Resistance: HUSHMAT ULTRA will withstand a bake of 1 hour at 240 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions.
• Thickness: 1.5mm

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12.75 x 12.75 x 1.5 inches
• Weight: 6 lb

PDF:

HushMat Ultra Specification Sheet

HushMat_Ultra 200-400-800 Hz Graph SAEJ1637

Damping Pad MSDS

Door Kit_Sell Sheet_FINAL
