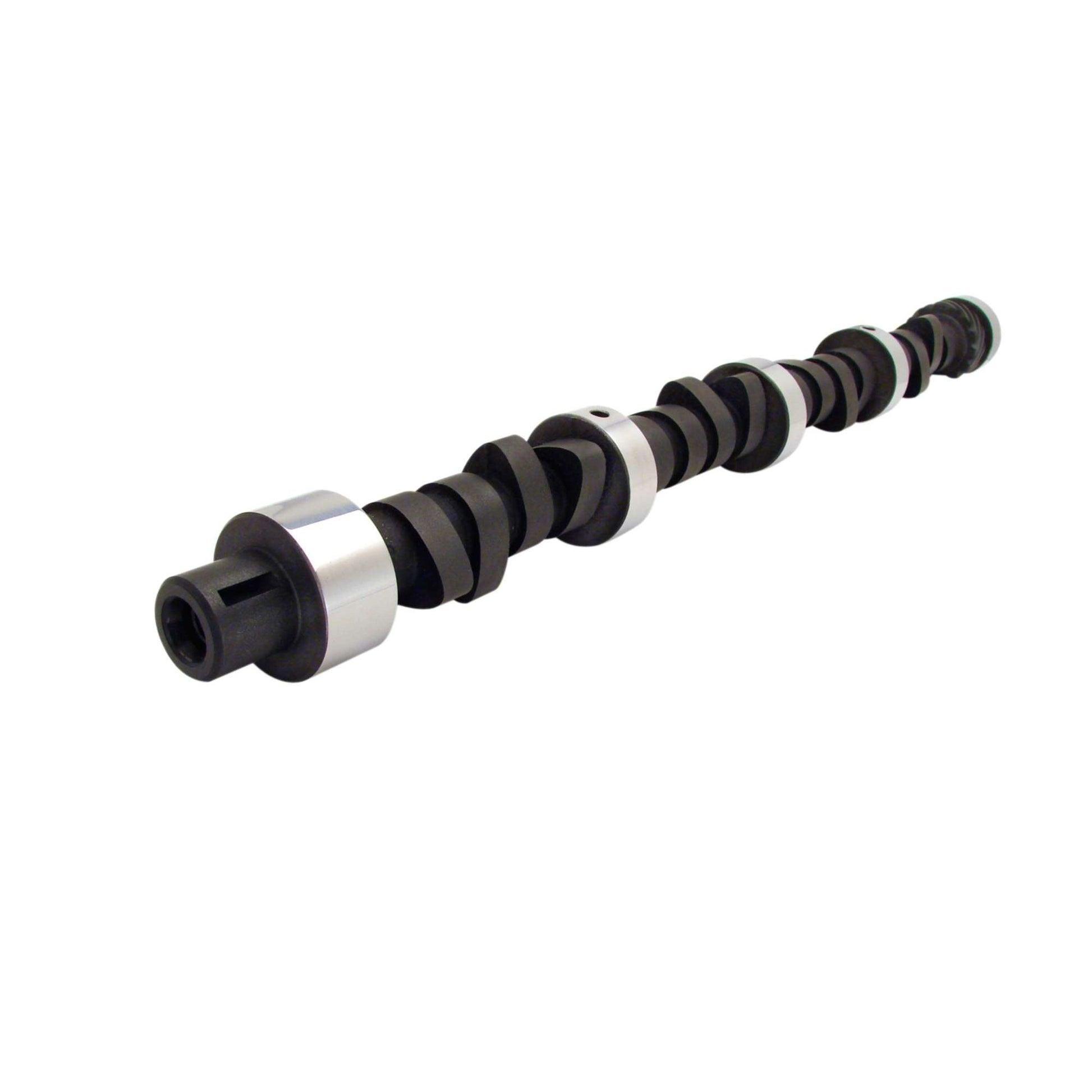

COMP Cams Drag Race 228/236 Hydraulic Flat Cam for Pontiac 265-455 COMP-51-309-4

Attributes:

• GTIN: 00036584612155
• Brand Name: COMP Cams
• Camshaft Series: Drag Race
• Usage: Street/Strip
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 276AH-10
• Basic Operating RPM Range: 2,000-6,000
• Intake Duration at .050 Inch Lift: 228
• Exhaust Duration at .050 inch Lift: 236
• Advertised Intake Duration: 276
• Advertised Exhaust Duration: 284
• Lobe Separation: 110
• Intake Valve Lift: 0.52
• Exhaust Valve Lift: 0.52
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Hydraulic Flat Tappet
• Amazon ASIN: B001G8RCGK
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Engine Family: Pontiac 265-455 C.I. 8 Cylinder (1955-1981)

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 9.02 lb
