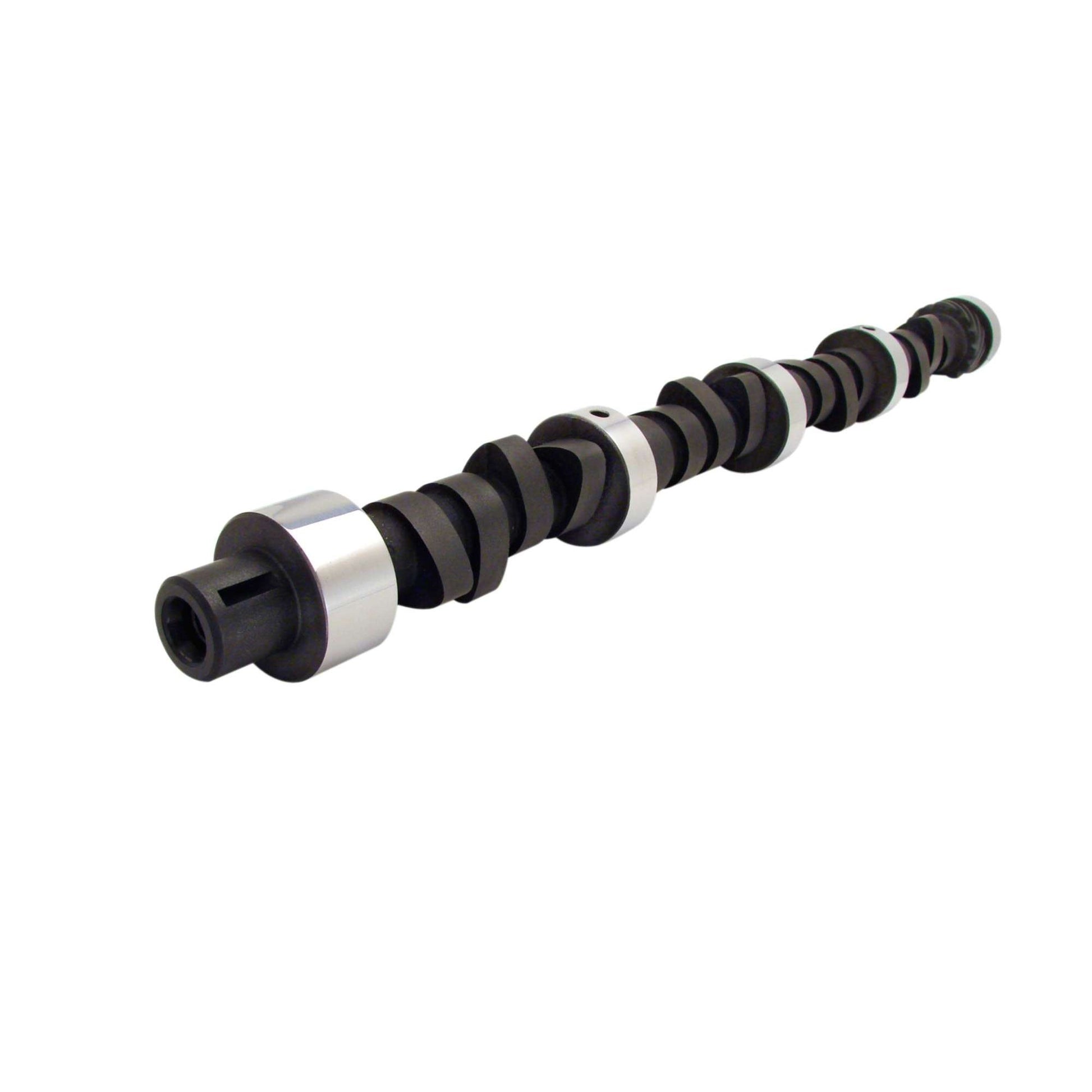

COMP Cams Drag Race 246/253 Hydraulic Flat Cam for Pontiac 265-455 COMP-51-316-4

Attributes:

• GTIN: 00036584612186
• Brand Name: COMP Cams
• Exhaust Valve Lift: 0.577
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Hydraulic Flat Tappet
• Amazon ASIN: B000P5GEDM
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Engine Family: Pontiac 265-455 C.I. 8 Cylinder (1955-1981)
• Camshaft Series: Drag Race
• Usage: Street/Strip
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 296AH-8
• Basic Operating RPM Range: 3,000-6,000
• Intake Duration at .050 Inch Lift: 246
• Exhaust Duration at .050 inch Lift: 253
• Advertised Intake Duration: 296
• Advertised Exhaust Duration: 305
• Lobe Separation: 108
• Intake Valve Lift: 0.562

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 2.9 x 2.6 inches
• Weight: 8.95 lb
