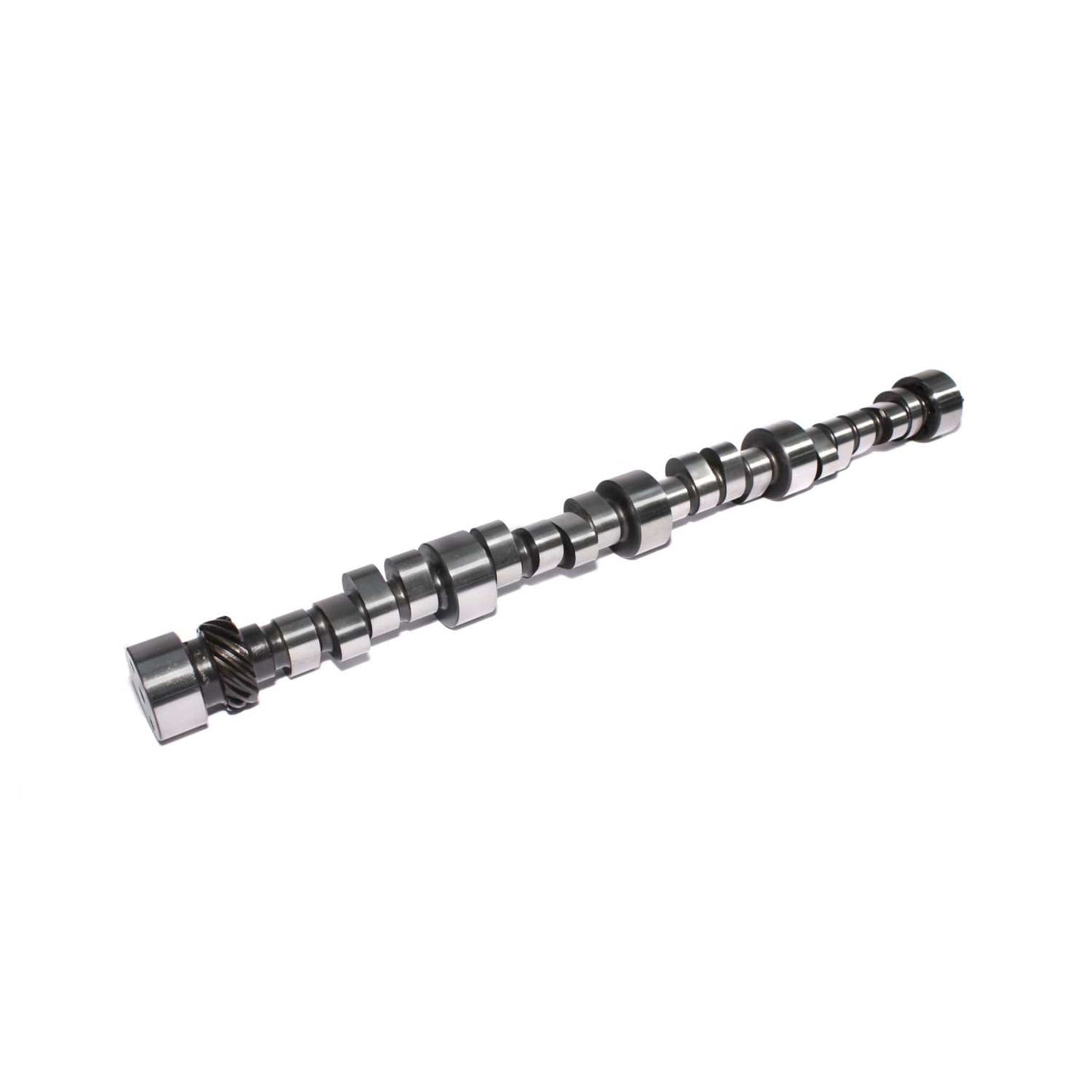

COMP Cams Drag Race 254/262 Solid Roller Cam for Chevrolet Big Block 396-454 COMP-11-713-9

Attributes:

• GTIN: 00036584670018
• Brand Name: COMP Cams
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: Drag Race
• Usage: Strip
• Cam Type: Solid Roller
• Grind Number: 288CR-8
• Basic Operating RPM Range: 3200-6,200
• Intake Duration at .050 Inch Lift: 254
• Exhaust Duration at .050 inch Lift: 262
• Advertised Intake Duration: 288
• Advertised Exhaust Duration: 296
• Lobe Separation: 108
• Intake Valve Lift: 0.714
• Exhaust Valve Lift: 0.714
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Lifter Type: Solid Roller
• Amazon ASIN: B001NEUUG6

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.93 x 2.83 x 2.59 inches
• Weight: 10.55 lb
