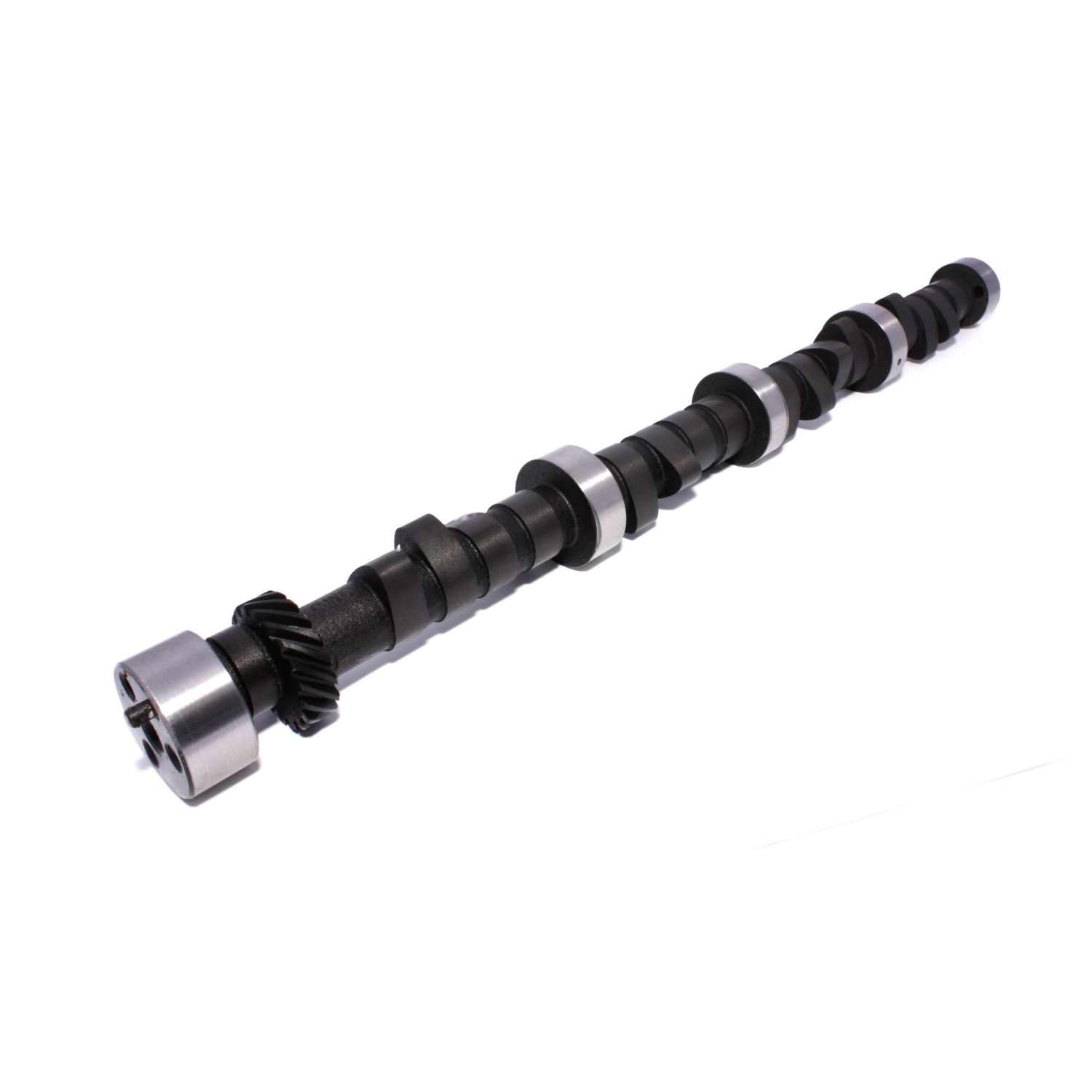

COMP Cams Drag Race 256/266 Solid Flat Cam for Chrysler 383-440 COMP-23-631-5

Attributes:

• GTIN: 00036584080237
• Brand Name: COMP Cams
• Camshaft Material: Cast Iron
• Lifter Type: Solid Flat Tappet
• Engine Family: Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
• Amazon ASIN: B000P5DAJI
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: Drag Race
• Usage: Strip
• Cam Type: Solid Flat Tappet
• Grind Number: XTQ286S-8
• Basic Operating RPM Range: 3,500-6,500
• Intake Duration at .050 Inch Lift: 256
• Exhaust Duration at .050 inch Lift: 266
• Advertised Intake Duration: 286
• Advertised Exhaust Duration: 296
• Lobe Separation: 108
• Intake Valve Lift: 0.55
• Exhaust Valve Lift: 0.57
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10.3 lb
