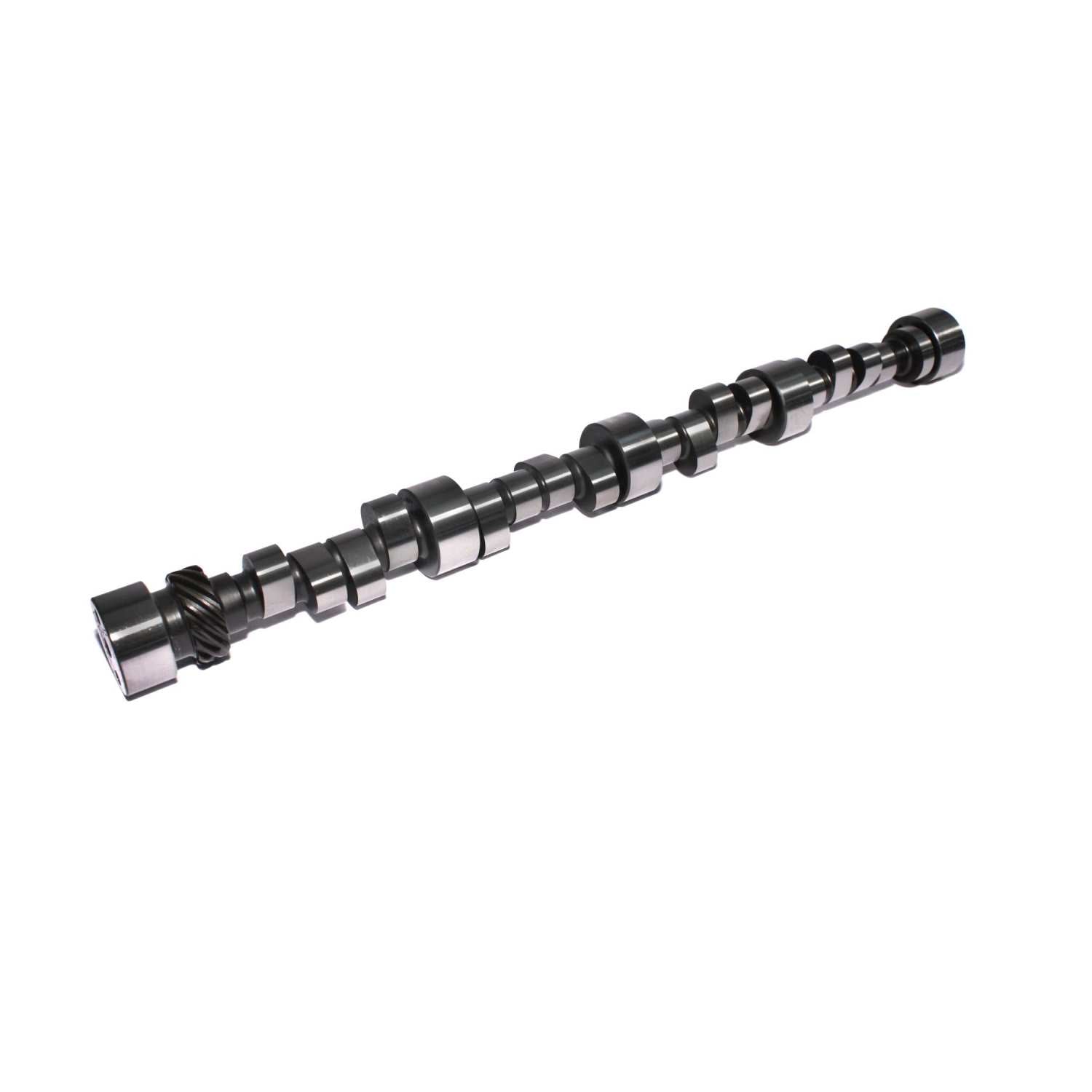

COMP Cams Drag Race 4/7 Swap 277/292 Solid Roller Cam for Chevrolet Big Block 396-454 COMP-11-750-14

Attributes:

• GTIN: 00036584084075
• Brand Name: COMP Cams
• Camshaft Series: Drag Race 4 and 7 Swap Firing Order
• Usage: Strip
• Cam Type: Solid Roller
• Grind Number: 47S 310RXD-14
• Basic Operating RPM Range: 4300-8,000
• Intake Duration at .050 Inch Lift: 277
• Exhaust Duration at .050 inch Lift: 292
• Advertised Intake Duration: 310
• Advertised Exhaust Duration: 330
• Lobe Separation: 114
• Intake Valve Lift: 0.8
• Exhaust Valve Lift: 0.8
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Lifter Type: Solid Roller
• Amazon ASIN: B001NESZNQ
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.85 x 2.83 x 2.59 inches
• Weight: 10.15 lb
