Derale Dual Mount Univ Oil Filter Relocation Kit, 1/2" NPT Ports, 3/4"-16 Filter Thread 15749

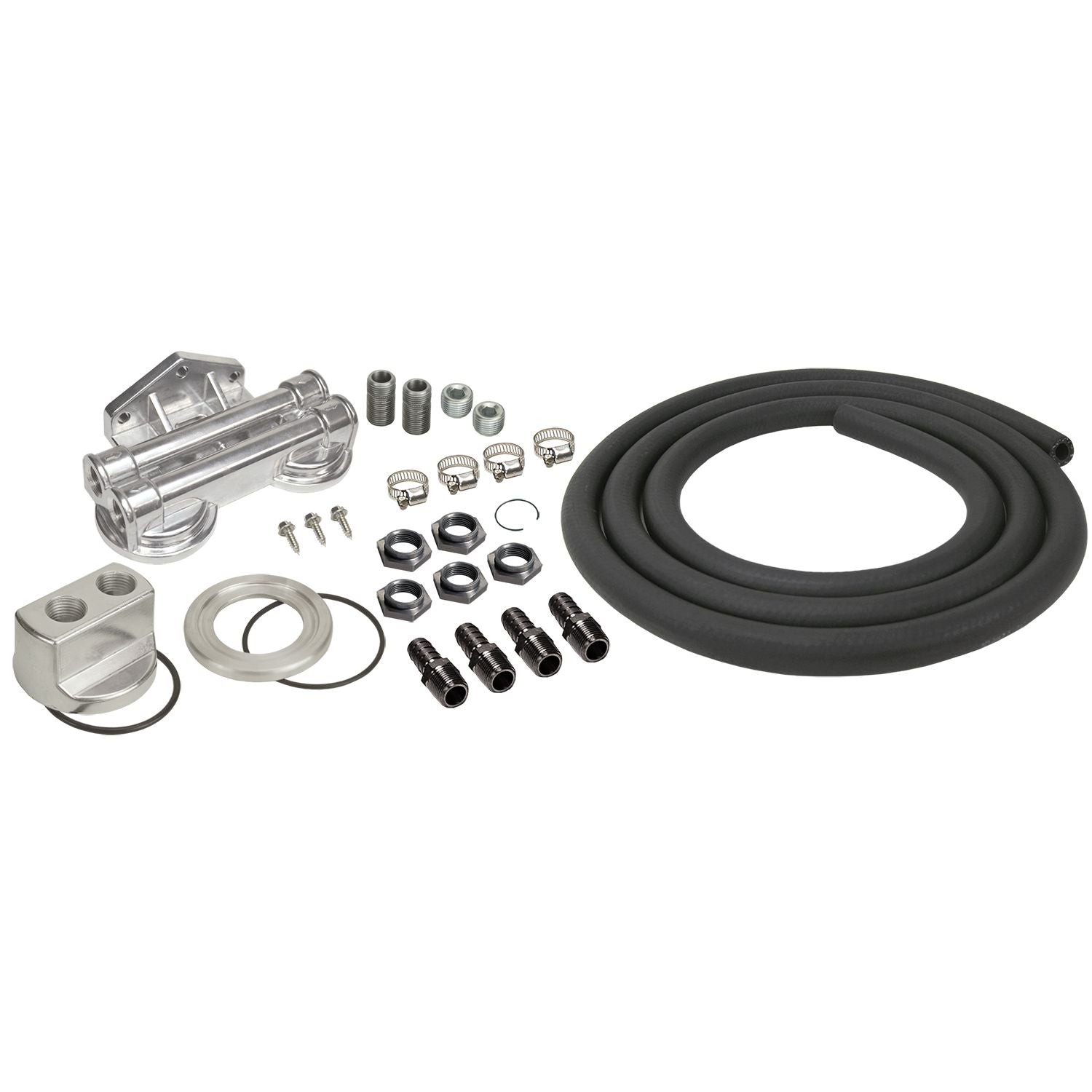

This Universal dual filter kit allows oil filters to be relocated to a convenient, easy-access location. Includes a high quality, die cast aluminum 1/2" NPT ports up filter mount and a 1/2" NPT ports spin-on adapter with most everything you need for an easy installation. Filter mount uses Fram PH8A Oil Filter or equivalent, using a 3/4-16 filter thread. Designed to fit most passenger vehicles on the road today with 2 1/2" to 3 1/2" oil filter landings. Spin-on adapters provide external oil lines to allow the addition of an engine oil cooler and/or remote filter mount, installing at the stock engine oil filter location. This all-new version has a billet style look and has an ultra-bright, polished appearance.

Attributes:

• GTIN: 00083277157493
• Brand Name: Derale
• Adapter inlet size: 1/2 NPT
• Adapter thickness: 1-3/4, 2
• Adapter thread size: 3/4"-16, 13/16"-16, 18x1.5mm, 20x1.5mm, 22x1.5mm
• Color: Silver
• Hose length: 10
• Hose size: 1/2
• Remote filter inlet size: 1/2 NPT
• Remote filter landing: 2-1/2, 2-3/4, 3-1/2
• Remote filter thread size: 3/4-16

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 9.25 x 9.25 x 4.75 inches
• Weight: 6.3125 lb
