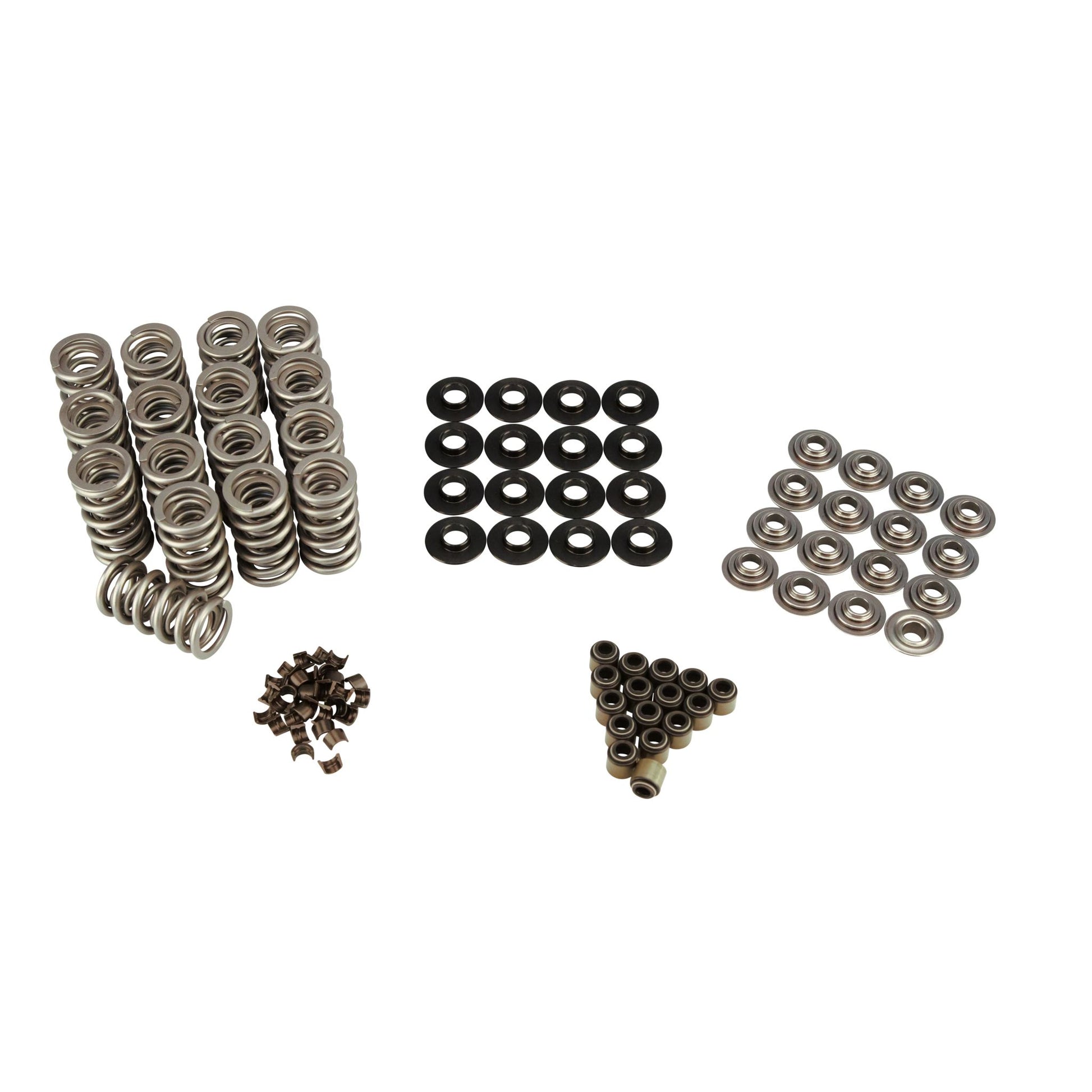

COMP Cams Dual Valve Spring Kit for GM L83/L86/LT1/LS7 w/ Tool Steel Retainers COMP-26527TS-KIT

Attributes:

• GTIN: 00036584395515
• Brand Name: COMP Cams
• Number of Springs: 2
• Included Seats: 4695-16
• Free Length: 2.322
• Spring Style: Dual
• Valve Spring Series: Dual
• Damper: No
• Retainer Material: Tool Steel
• Includes Retainers?: Yes
• Spring Seat Type: Steel
• Includes Seats?: Yes
• Outer Spring Outside Diameter: 1.301
• Includes Shims?: No
• Spring Rate: 427
• Open Load: 458
• Seat Pressure: 159
• Installed Height: 1.9
• Coil Bind Height: 1.15
• Inner Spring Inside Diameter: 0.646
• Outer Spring Inside Diameter: 0.924
• Max Lift: 0.7

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 11.9 x 6.4 x 2.9 inches
• Weight: 5.3 lb
