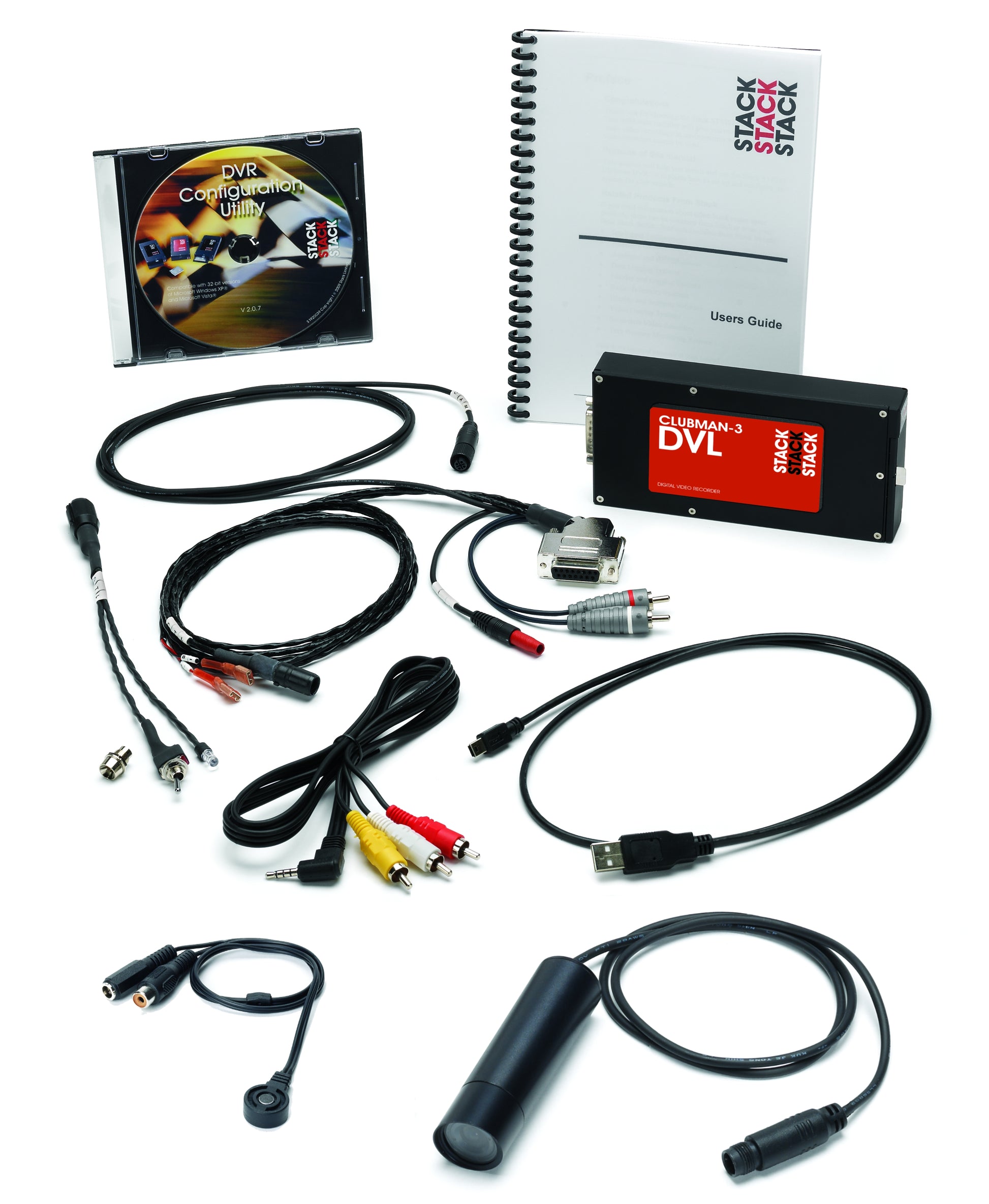

Stack DVL DIGITAL VIDEO LOGGER CLUBMAN-3 NTSC ST8310-N

Multi-Camera High Quality Video Recorder, Gps And Data Overlay With Can Link. Stacks Range Of Digital Video-Loggers (Dvls) Can Be Used As A Conventional Dvr To Record Video And Audio. They Can Also Record Data As Well As Video, In One Compact Unit, For The Ultimate In Synchronized Video-Logging!

• Water resistant, rugged solid state NTSC video recorder / logger designed specifically for racing environment w/ Automatic Start / Stop Recording function
• 3 Camera Inputs, 2 Audio Channels, 16:9 and 4:3 Screen Formats
• Compact & Light Weight Design - 155mm x 75mm x 25mm - 275g without memory card
• Records to Compact Flash Memory Card (not included). Over 9 hrs. recording (subject to CF card size).
• A/V Output for Connection to External Monitor
• Connect to any STACK Dash Display, Configurable Logging system or ECU CAN output with DVL CAN Interface option for synchronized video logging
• Crop & Place any combination of available camera inputs with DVL configuration software
• DataPro Analysis Software Included
• GPS input option for Speed and Track Mapping Features

Attributes:

• GTIN: 00046074155819
• Brand Name: Stack
• Add-On: ST8394;ST390080;ST390015;ST390084;ST169047;ST390017
• Product Type: DVR

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9.85 x 13 x 6.5 inches
• Weight: 5 lb
